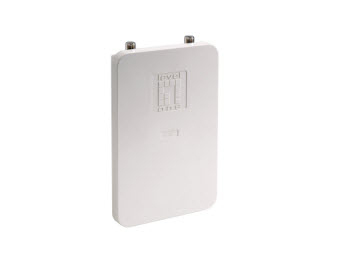

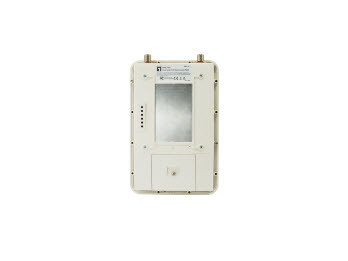

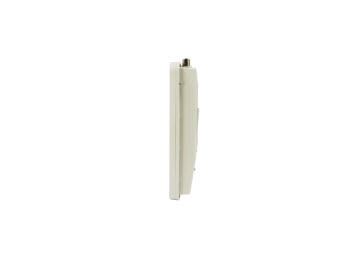

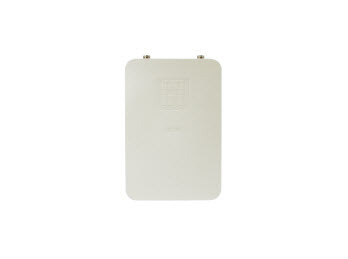

WAB-7400 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model WAB-7400EAN 4015867143360
30 specifications
- Speed54 Mbit/s
- Weight450 g
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- InternalNo
- Dimensions (WxDxH)175 x 260 x 65 mm
Overview
- Speed
- 54 Mbit/s
- Weight
- 450 g
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Internal
- No
- Dimensions (WxDxH)
- 175 x 260 x 65 mm
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAB-7400
- Part number
- WAB-7400
- EAN / UPC
- 4015867143360
- Also known as
- LevelOne WAB-7400 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
30 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 5.825 GHz |
| Cabling technology | 10/100Base-T(X) |
| Channels quantity | 5 channels |
| Modulation | DSSS, OFDM |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | 802.11a: -88dBm @ 6Mbps -70dBm @ 54Mbps 802.11g: -91dBm @ 6Mbps -74dBm @ 54Mbps 802.11b: -92 dBm @ 1Mbps -95 dBm @ 11Mbps |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, 802.1x RADIUS, EAP, HTTPS, SSH, SSL/TLS, WPA, WPA-AES, WPA2 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Supported network protocols | CSMA/CA, PPPoE |
| Management protocols | SNMP v1/v2c/v3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 48V |
| Power supply type | DC |
Design
| Specification | Value |
|---|---|
| Internal | No |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 175 x 260 x 65 mm |
| Weight | 450 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 6, 9, 12, 18, 24, 36, 48, 54 |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE802.3af, 802.11i, 802.1x, 802.1Q |
| Networking features | Fast Ethernet |
| Wireless technology | 802.11a/b/g |
| RF-connector | 2-N |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | -30 - 80% |
