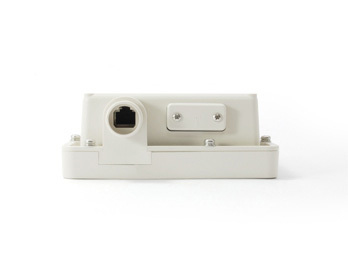

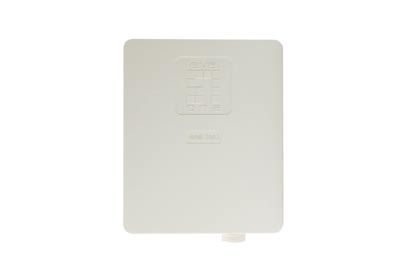

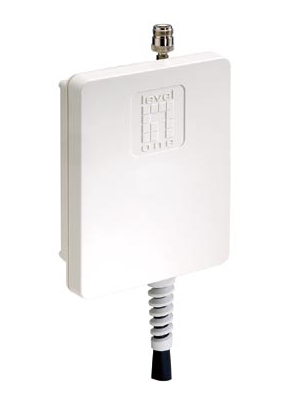

LevelOne Wireless 11a/b/g Outdoor PoE AP

Wireless 11a/b/g Outdoor PoE AP

Model WAB-7000EAN 4015867144961

37 specifications

Speed100 Mbit/s
Weight1.2 kg
ColourWhite
2.4 GHzYes
Security algorithmsSSID, WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 100 Mbit/s
Weight: 1.2 kg
Colour: White
2.4 GHz: Yes
Security algorithms: SSID, WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports: 1

Brand: LevelOne
Category: Wireless Access Point
Model: WAB-7000
Part number: WAB-7000
EAN / UPC: 4015867144961
Also known as: LevelOne Wireless 11a/b/g Outdoor PoE AP

Specifications

37 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	100 Mbit/s
Wi-Fi data rate (max)	54 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.484, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.82 GHz
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Modulation	16-QAM, 64-QAM, BPSK, CCK, OFDM, OQPSK, QPSK
Operating modes	Access Point (AP),Client Bridge,Repeater,WDS
Transmitting power	20 dBmW
Receiver sensitivity	802.11a: -88 dBm -70 dBm 802.11b: -92 dBm -95 dBm 802.11g: -91 dBm -74 dBm

Security

Specification	Value
Security algorithms	SSID, WEP, WPA, WPA2
MAC address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
DHCP client	Yes
Management protocols	SNMP V1, HTTP, Telnet
Media access protocol	CSMA/CA

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Output voltage	48 V
Output current	0.375 A

Design

Specification	Value
Product colour	White
International Protection (IP) code	IP66
Internal	No

Antenna

Specification	Value
Antenna connector type	N-type

Certificates

Specification	Value
Certification	FCC Part 15, CE

Weight & dimensions

Specification	Value
Width	135.2 mm
Depth	163.8 mm
Height	52 mm
Weight	1.2 kg

Packaging content

Specification	Value

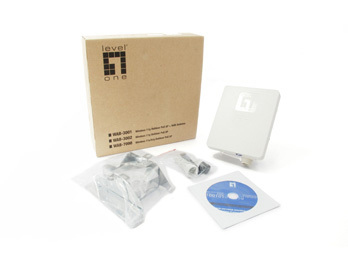

Mounting kit	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 65 °C
Storage temperature (T-T)	-20 - 80 °C
