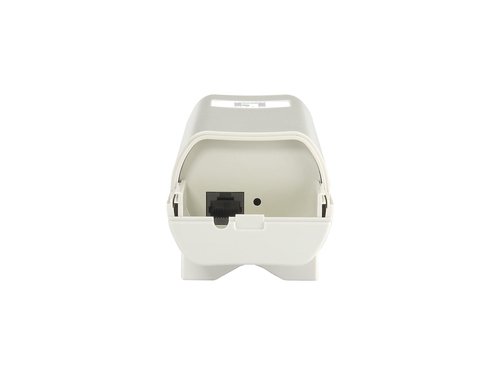

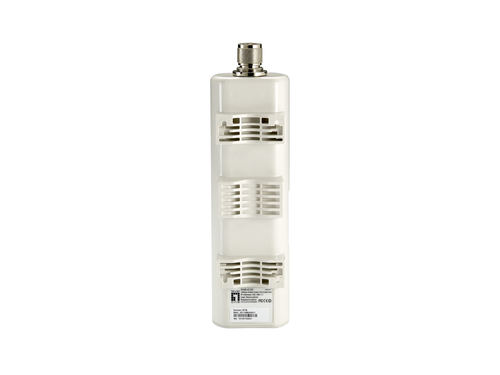

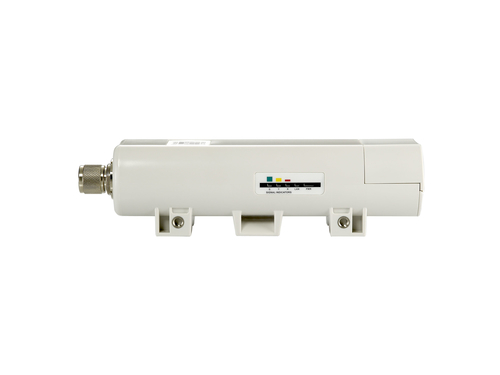

LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna
Model WAB-6120EAN 211131846539
36 specifications
- Speed150 Mbit/s
- Weight500 g
- ColourWhite
- 2.4 GHzYes
- Management protocolsTelnet, FTP, SNMP
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 150 Mbit/s
- Weight
- 500 g
- Colour
- White
- 2.4 GHz
- Yes
- Management protocols
- Telnet, FTP, SNMP
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAB-6120
- Part number
- WAB-6120
- EAN / UPC
- 211131846539, 846359002834, 4015867162156, 5711045526220
- Also known as
- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna
Specifications
36 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 150 Mbit/s |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.412 - 2.462, 2.412 - 2.472, 2.422 - 2.452, 2.422 - 2.462 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u |
| Number of users | 32 user(s) |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Operating modes | Access Point (AP),Customer Premise Equipment (CPE) |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | IEEE 802.11b: -88dBm IEEE 802.11g: -73dBm IEEE 802.11n: -70dBm IEEE 802.11n: -67dBm |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, FTP, SNMP |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP55 |
| Reset button | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 8 dBi |

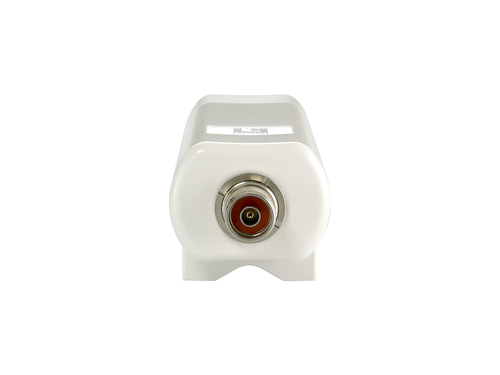

| Antenna connector type | N-type |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 64 mm |
| Depth | 228 mm |
| Height | 61 mm |
| Weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Reviews
No reviews of LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna yet. Have you used it? Tell others what you think.
Write a reviewCompare LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna
All wireless access point comparisons- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsLevelOne WAP-6102 wireless access point 300 Mbit/s Power over Ethernet (PoE)Compare specs
- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsLevelOne WHG-707 wireless access point 1000 Mbit/sCompare specs
- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsLevelOne WAP-6002 wireless access point 150 Mbit/sCompare specs
- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsLevelOne WAP-3100 wireless access point 54 Mbit/s Power over Ethernet (PoE)Compare specs
- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsEnGenius EUB9603H wireless access point 54 Mbit/sCompare specs

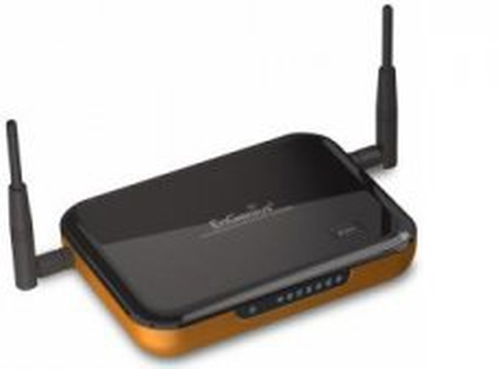

- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsEnGenius ESR9855G wireless access point 300 Mbit/sCompare specs

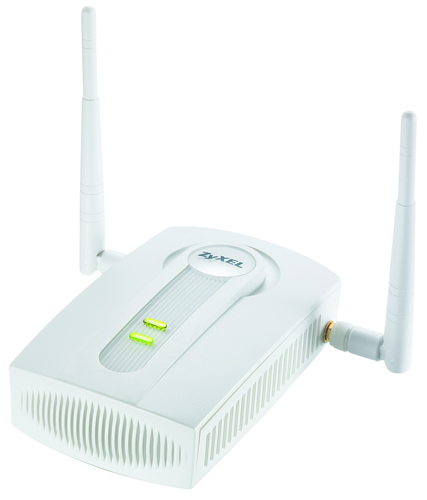

- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsZyxel 802.11a/b/g/n Business APCompare specs

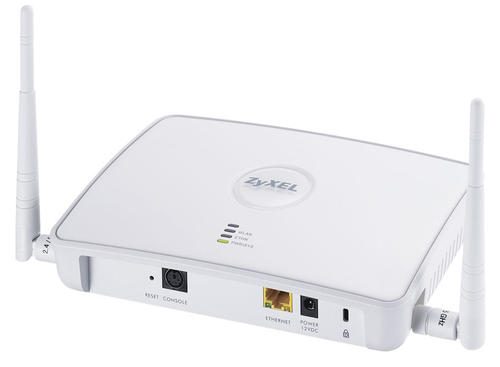

- LevelOne Wireless Access Point, 150Mbps 802.11b/g/n, Passive PoE, Outdoor, Built-in Antenna vsZyxel NWA1100-N 300 Mbit/s Power over Ethernet (PoE)Compare specs
