LevelOne N300 Outdoor PoE Wireless Access Point, Controller Managed

N300 Outdoor PoE Wireless Access Point, Controller Managed

Model WAB-6010EAN 4015867202333

56 specifications

Speed100 Mbit/s
Weight400 g
ColourWhite
2.4 GHzYes
Service Set Identifier (SSID) featuresSSID broadcast on/off
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 100 Mbit/s
Weight: 400 g
Colour: White
2.4 GHz: Yes
Service Set Identifier (SSID) features: SSID broadcast on/off
Ethernet LAN (RJ-45) ports: 1

Brand: LevelOne
Category: Wireless Access Point
Model: WAB-6010
Part number: WAB-6010
EAN / UPC: 4015867202333
Also known as: LevelOne N300 Outdoor PoE Wireless Access Point, Controller Managed

Specifications

56 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	No
Maximum data transfer rate	100 Mbit/s
Wi-Fi data rate (max)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Number of users	64 user(s)
Channels quantity	13 channels
Modulation	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater,WISP
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

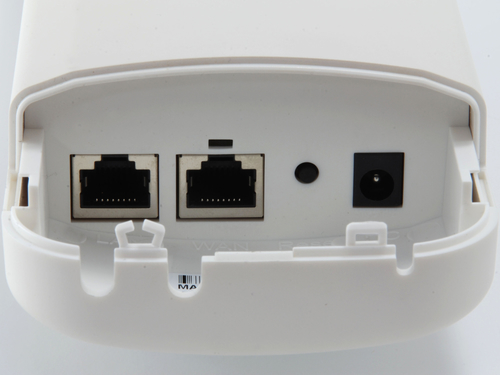

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	1 A

Design

Specification	Value
Placement	Pole
Product colour	White
International Protection (IP) code	IP65
Reset button	Yes
Internal	No

Antenna

Specification	Value
Antennas quantity	2
Antenna gain level (max)	5 dBi

Certificates

Specification	Value
Certification	CE

Weight & dimensions

Specification	Value
Width	87 mm
Depth	257 mm
Height	38 mm
Weight	400 g

Packaging data

Specification	Value
CD manual	Yes
CD quick installation guide	Yes
Package width	106 mm
Package depth	332 mm
Package height	95 mm
Package weight	700 g
Package type	Box

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Mounting kit	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	350 mm
Master (outer) case length	495 mm
Master (outer) case height	452 mm
Master (outer) case gross weight	2.1 kg
Products per master (outer) case	20 pc(s)
