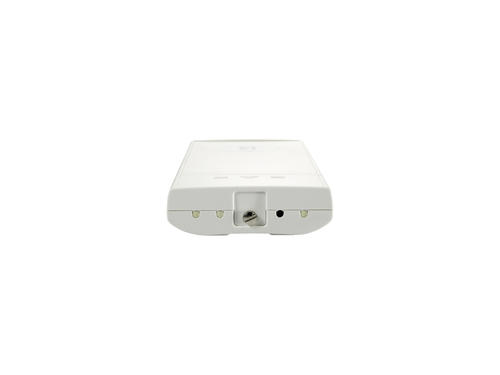

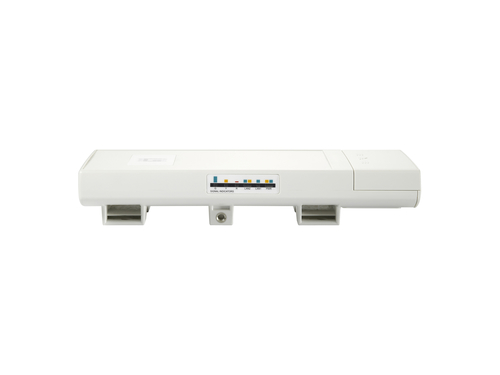

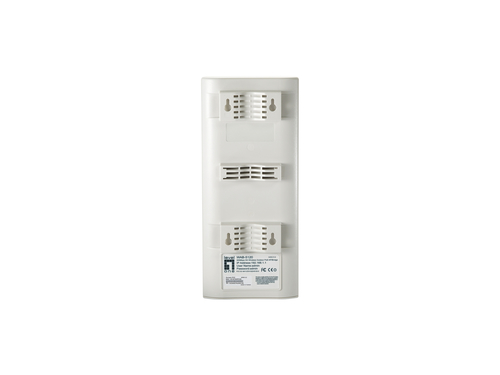

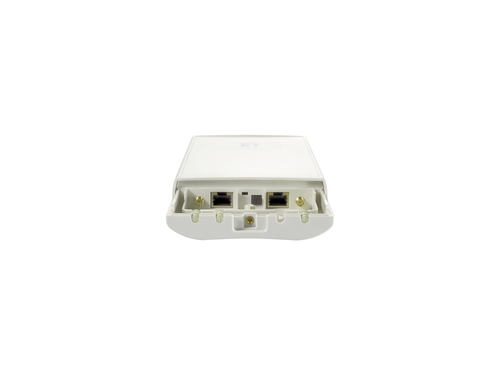

LevelOne 5GHz Wireless Access Point, 300Mbps 802.11a/n, Outdoor, Passive PoE, Built-in Antenna

LevelOne 5GHz Wireless Access Point, 300Mbps 802.11a/n, Outdoor, Passive PoE, Built-in Antenna

Model WAB-5120EAN 4015867163535

40 specifications
  • Speed300 Mbit/s
  • Weight600 g
  • ColourWhite
  • 2.4 GHzNo
  • Management protocolsTelnet, FTP, SNMP
  • Firmware upgradeableYes
See all specifications

Overview

Speed
300 Mbit/s
Weight
600 g
Colour
White
2.4 GHz
No
Management protocols
Telnet, FTP, SNMP
Firmware upgradeable
Yes
Brand
LevelOne
Model
WAB-5120
Part number
WAB-5120
EAN / UPC
4015867163535
Also known as
LevelOne 5GHz Wireless Access Point, 300Mbps 802.11a/n, Outdoor, Passive PoE, Built-in Antenna

Specifications

40 specifications in 11 groups

Features

2.4 GHzNo
5 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5.725 - 5.85, 5.47 - 5.725 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n, IEEE 802.3u
ModulationOFDM
Operating modesAccess Point (AP),Repeater,Router,Client Bridge,WDS
Transmitting power24 dBmW
Receiver sensitivityIEEE 802.11a: -89dBm IEEE 802.11an:-89dBm IEEE 802.11an:-85dBm

Security

Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Protocols

Management protocolsTelnet, FTP, SNMP

Management features

Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0

Power

Power over Ethernet (PoE)Yes
Power managementYes

Design

Product colourWhite
International Protection (IP) codeIP55
On/off switchYes
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna typeInternal
Antenna featuresIntegrated antenna
Antenna gain level (max)16 dBi
Antenna connector typeSMA
Number of connectors2

Weight & dimensions

Width111 mm
Depth255.6 mm
Height47.6 mm
Weight600 g

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-30 - 80 °C
Storage relative humidity (H-H)5 - 95%
