LevelOne N300 5GHz Outdoor PoE Wireless Access Point, Controller Managed

LevelOne N300 5GHz Outdoor PoE Wireless Access Point, Controller Managed

Model WAB-5010EAN 4015867202326

57 specifications

Speed300 Mbit/s
Weight440 g
ColourWhite
2.4 GHzNo
Service Set Identifier (SSID) featuresSSID broadcast on/off
Web-based managementYes

See all specifications

Overview

Speed: 300 Mbit/s
Weight: 440 g
Colour: White
2.4 GHz: No
Service Set Identifier (SSID) features: SSID broadcast on/off
Web-based management: Yes

Brand: LevelOne
Category: Wireless Access Point
Model: WAB-5010
Part number: WAB-5010
EAN / UPC: 4015867202326
Also known as: LevelOne N300 5GHz Outdoor PoE Wireless Access Point, Controller Managed

Specifications

57 specifications in 13 groups

Features

Specification	Value
2.4 GHz	No
5 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	5.18 - 5.825 GHz
Networking standards	IEEE 802.11a, IEEE 802.11e, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Number of users	64 user(s)
Channels quantity	165 channels
Modulation	16-QAM, 64-QAM, BPSK, CCK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Operating modes	Access Point (AP),Gateway,Repeater,WDS,WISP
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, WPA-AES, WPA-TKIP, WPA2-AES, WPA2-TKIP, WPS
Service Set Identifier (SSID) features	SSID broadcast on/off
Number of SSID supported	4
Auto Wireless Distribution System (WDS)	Yes

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value

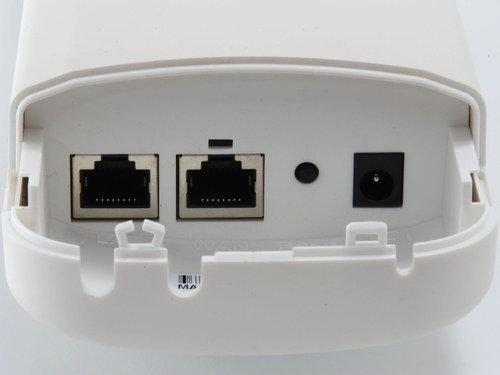

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	12 V
Input current	1.5 A
Power consumption (typical)	15 W

Design

Specification	Value
Product colour	White
International Protection (IP) code	IP65
Reset button	Yes
Internal	No

Antenna

Specification	Value
Antenna features	Integrated antenna
Antenna gain level (max)	15 dBi

Certificates

Specification	Value
Certification	CE, FCC

Weight & dimensions

Specification	Value
Width	87 mm
Depth	257 mm
Height	40 mm
Weight	440 g

Packaging data

Specification	Value
CD manual	Yes
CD quick installation guide	Yes
Package width	106 mm
Package depth	332 mm
Package height	95 mm
Package weight	700 g
Package type	Box

Packaging content

Specification	Value
Cables included	LAN (RJ-45)
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-40 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Country of origin	China
Master (outer) case width	350 mm
Master (outer) case length	495 mm
Master (outer) case height	452 mm
Master (outer) case gross weight	2.1 kg
Products per master (outer) case	20 pc(s)
