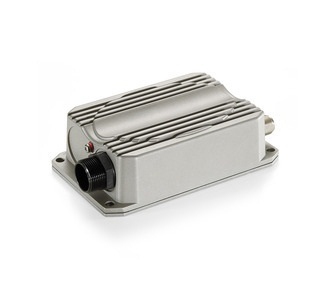

WAB-3003 wireless access point 108 Mbit/s Power over Ethernet (PoE)
Model WAB-3003EAN 4015867156841
30 specifications
- Speed108 Mbit/s
- ConnectivityWLAN
- Weight720 g
- 2.4 GHzYes
- Dimensions (WxDxH)165 x 96 x 48 mm
- Operating relative humidity (H-H)0 - 100%
Overview
- Speed
- 108 Mbit/s
- Connectivity
- WLAN
- Weight
- 720 g
- 2.4 GHz
- Yes
- Dimensions (WxDxH)
- 165 x 96 x 48 mm
- Operating relative humidity (H-H)
- 0 - 100%
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- WAB-3003
- Part number
- WAB-3003
- EAN / UPC
- 4015867156841
- Also known as
- LevelOne WAB-3003 wireless access point 108 Mbit/s Power over Ethernet (PoE)
Specifications
30 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Cabling technology | 10/100Base-T(X) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WDS, WPA, WPA-PSK, WPA2 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | No |
| Supported network protocols | DDNS |
| Management protocols | SNMP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | WLAN |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Input current | 0.4 A |
| Power supply type | DC |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, IP68, RoHS. |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 165 x 96 x 48 mm |
| Weight | 720 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 108/54/11/6/1 Mbps |
| Compliance industry standards | IEEE 802.11e, IEEE 802.11b, IEEE 802.11g, IEEE 802.1X, IEEE 802.11 |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 100% |
