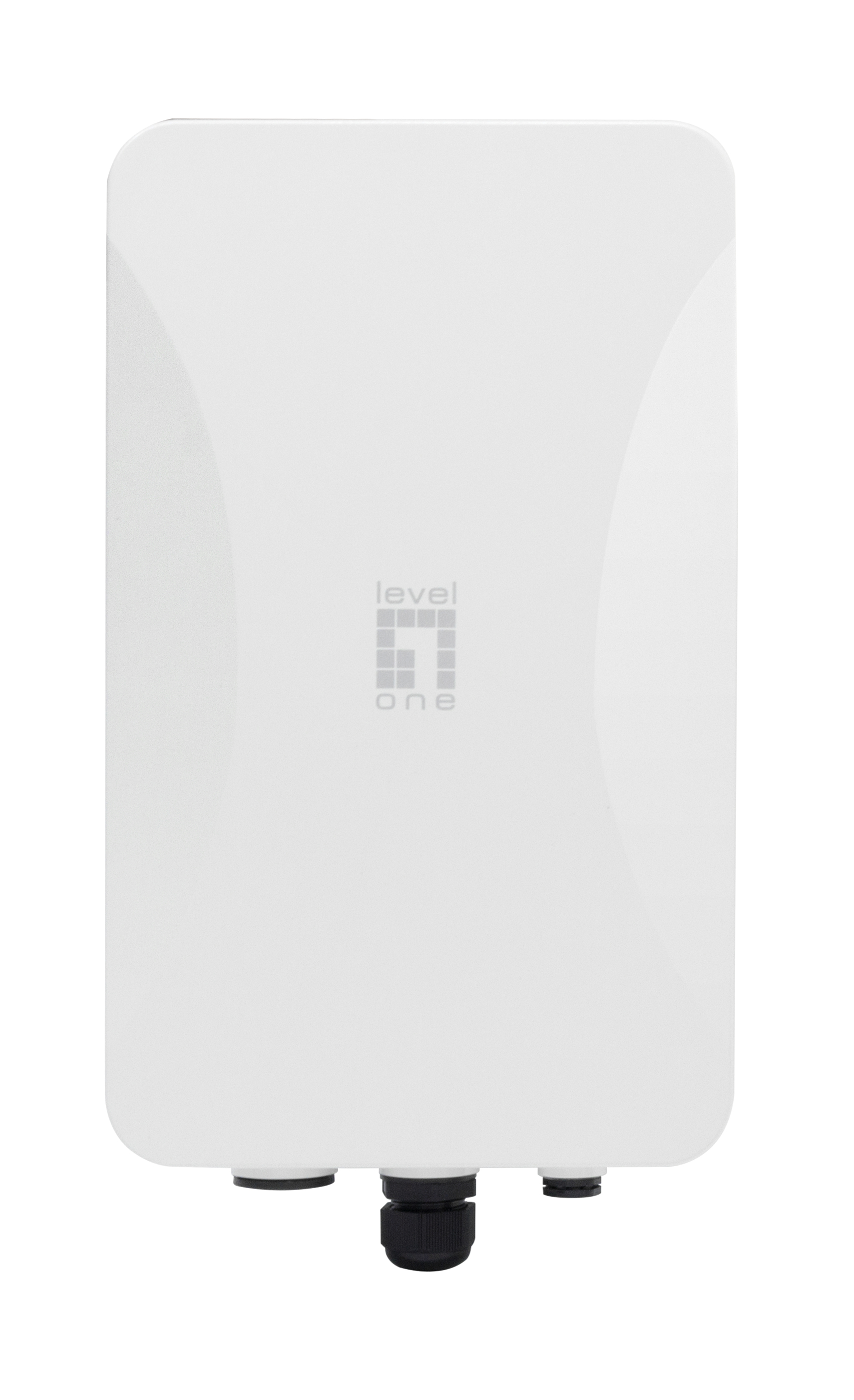

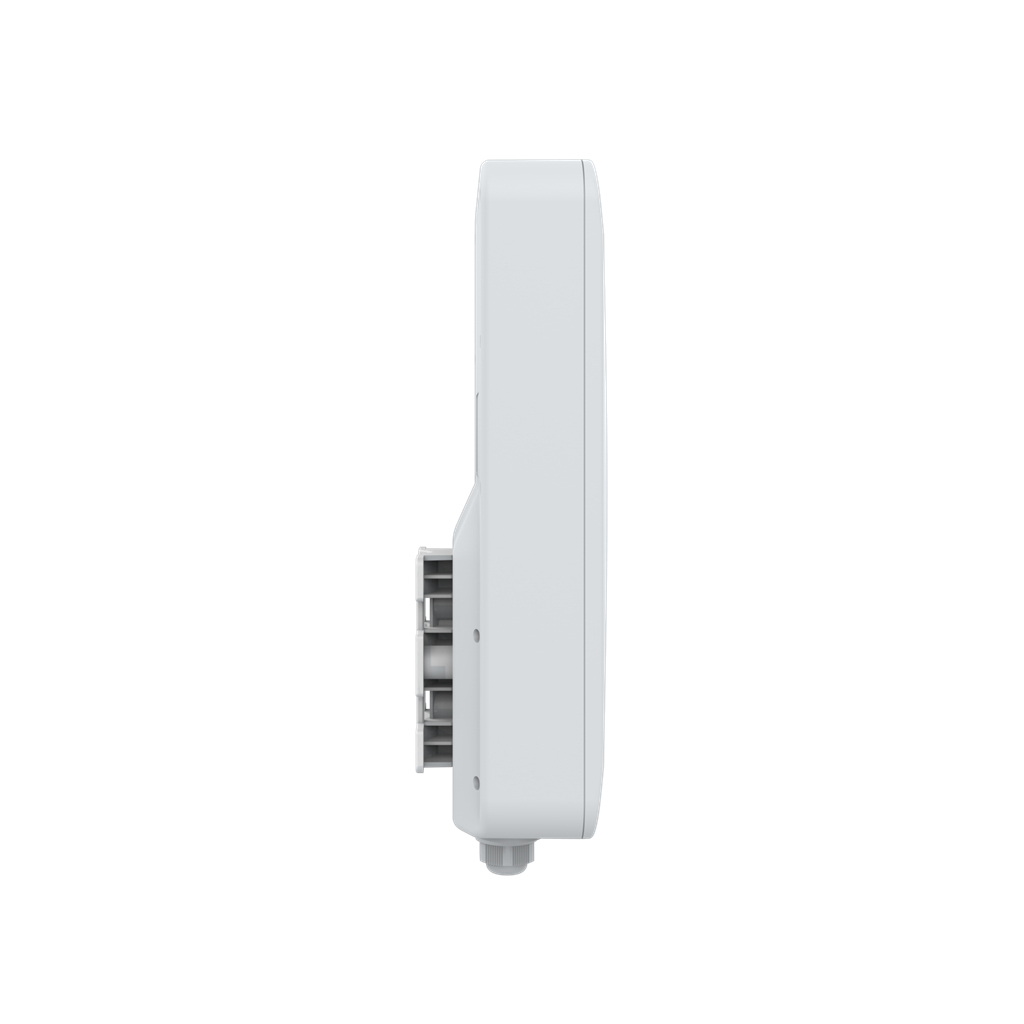

AX3000 Dual Band Wi-Fi 6 Outdoor PoE Wireless Access Point, Omni-directional
Model AX3000Part no. WAB-8021EAN 4015867231630
49 specifications
- Memory512 MB
- Speed3000 Mbit/s
- Weight1.3 kg
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA2, WPA3
Overview
- Memory
- 512 MB
- Speed
- 3000 Mbit/s
- Weight
- 1.3 kg
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA2, WPA3
- Brand
- LevelOne
- Category
- Wireless Access Point
- Model
- AX3000
- Part number
- WAB-8021
- EAN / UPC
- 4015867231630
- Also known as
- LevelOne AX3000 Dual Band Wi-Fi 6 Outdoor PoE Wireless Access Point, Omni-directional
Specifications
49 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2401 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 channels |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Maximum outdoor range | 100 m |
| Receiver sensitivity | 2.4 GHz Radio : l 802.11b / 1Mbps / RX Sensitivity : -90 (dBm) l 802.11b / 11Mbps / RX Sensitivity : -85 (dBm) l 802.11g / 6Mbps / RX Sensitivity : -90 (dBm) l 802.11g / 54Mbps / RX Sensitivity : -72 (dBm) l 802.11n HT20 / MCS0 / RX Sensitivity : -87 (dBm) l 802.11n HT20 / MCS7 / RX Sensitivity : -7 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3 |
| Number of SSID supported | 8 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Wi-Fi |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 16 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
| LED indicators | Power, Status, System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
Performance
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 107 mm |
| Height | 38 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 380 mm |
| Package depth | 230 mm |
| Package height | 107 mm |
| Package weight | 1.73 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Wireless standard | IEEE 802.11a/b/g/n/ac/ax |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
