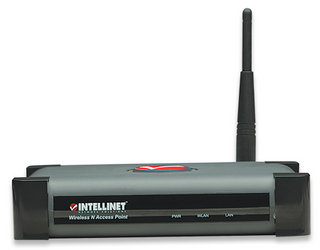

Intellinet Wireless 150N

Intellinet Wireless 150N

Model Wireless 150NPart no. 524704EAN 766623524704

44 specifications

ProcessorRalink RT3050
Memory16 MB
Speed150 Mbit/s
Weight800 g
2.4 GHzYes
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Processor: Ralink RT3050
Memory: 16 MB
Speed: 150 Mbit/s
Weight: 800 g
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1

Brand: Intellinet
Category: Wireless Access Point
Model: Wireless 150N
Part number: 524704
EAN / UPC: 766623524704, 940428567962, 5711045267130, 7666235247042
Also known as: Intellinet Wireless 150N 150 Mbit/s

Specifications

44 specifications in 14 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	150 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.483 GHz
Cabling technology	10/100BASE-T(X)
Number of users	16 user(s)

Security

Specification	Value
Security algorithms	128-bit AES, 256-bit AES, WPA, WPA2
MAC address filtering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes

Protocols

Specification	Value
DHCP server	Yes
Media access protocol	100Base-TX
Supported protocols	-IEEE 802.1d -IEEE 802.11b -IEEE 802.11g -IEEE 802.11n -IEEE 802.1x -IEEE 802.3 -IEEE 802.3u

Management features

Specification	Value
Web-based management	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	No
Power consumption (typical)	4 W
Power requirements	5 V DC, 1.0 A
Power supply type	AC/DC

Design

Specification	Value
LED indicators	LAN, Power, Status, WLAN, Yes
Cable length	1 m
Internal	No

Antenna

Specification	Value
Antenna type	External
Antenna features	Dipole antenna
Antennas quantity	1
Antenna gain level (max)	3 dBi

Performance

Specification	Value
Built-in processor	Yes
Processor model	Ralink RT3050
Flash memory	4 MB
Internal memory	16 MB

Certificates

Specification	Value
Certification	FCC - B, CE

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	160 x 127 x 35 mm
Weight	800 g

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Supported data transfer rates	10/11/54/100 Mbit/s
Power LED	Yes
Rack mounting	No
Wireless technology	Wi-Fi
Connectivity LEDs	Yes
Technical features	- PtP - PtMP - WDS
Weight (imperial)	0.771 kg (1.7 lbs)

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
