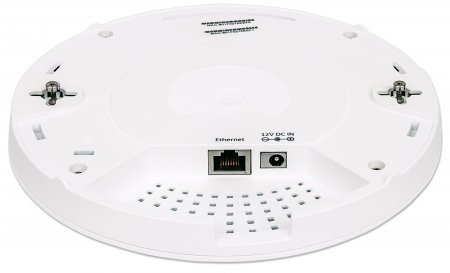

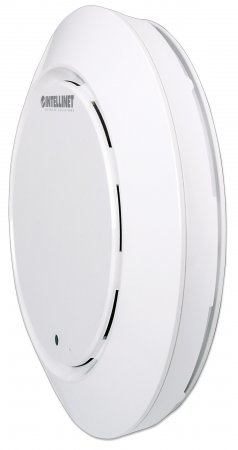

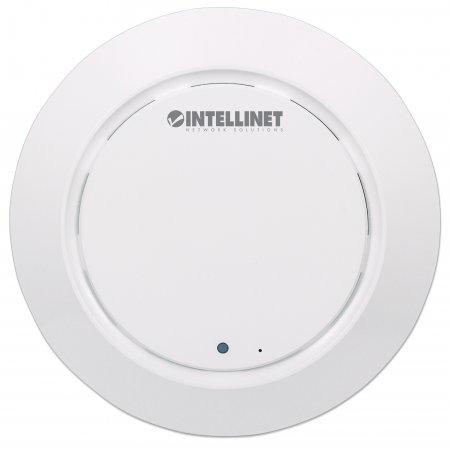

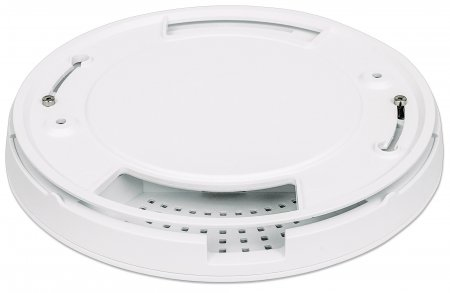

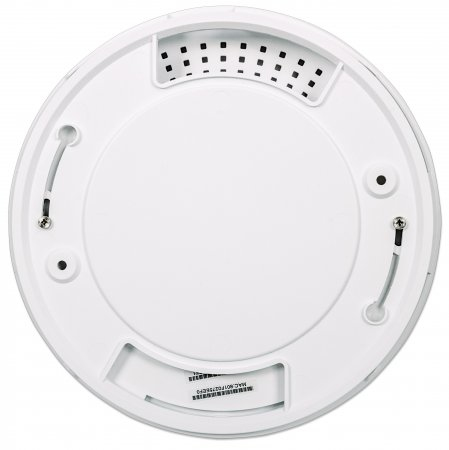

Intellinet High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoE

Intellinet High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoE

Model High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoEPart no. 525688EAN 766623525688

53 specifications
  • Memory64 MB
  • Speed1200 Mbit/s
  • Weight800 g
  • ColourWhite
  • 2.4 GHzYes
  • Supported protocolsSpanning Tree Protocol
See all specifications

Overview

Memory
64 MB
Speed
1200 Mbit/s
Weight
800 g
Colour
White
2.4 GHz
Yes
Supported protocols
Spanning Tree Protocol
Brand
Intellinet
Model
High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoE
Part number
525688
EAN / UPC
766623525688
Also known as
Intellinet High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoE 1200 Mbit/s White Power over Ethernet (PoE)

Specifications

53 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1200 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 5.825 GHz
Bandwidth5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Number of users50 user(s)
Channels quantity14 channels
Spread spectrum methodDSSS
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, QPSK
Number of WLAN connections (max)100
VLAN supportYes
Virtual LAN featuresTagged VLAN
Wireless isolationYes
Quality of Service (QoS) supportYes
Receiver sensitivity- 11b (11 Mbps): -90 dBm - 11g (54 Mbps): -75 dBm - 11n (MSC0 HT20/40): -90 dBm (±2 dBm) - 11n (MSC7 HT20/40): -70 dBm (±2 dBm)

Security

Security algorithms64-bit WEP, 128-bit WEP, WEP, WPA, WPA-AES, WPA-TKIP, WPA2-AES, WPA2-TKIP
MAC address filteringYes
Number of SSID supported32
Auto Wireless Distribution System (WDS)Yes
Port-based Network Access Control (PNAC)Yes
VPN supportIPv6

Protocols

Supported protocolsSpanning Tree Protocol

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current1 A
Power consumption (max)11 W

Design

PlacementCeiling
Product colourWhite
LED indicatorsPower, Status
InternalYes

Antenna

Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity4

Performance

High powerYes
Flash memory8 MB
Internal memory64 MB

Certificates

CertificationFCC Class B, CE, RoHS

Weight & dimensions

Width175 mm
Depth175 mm
Height30 mm
Weight800 g

Packaging data

CD quick installation guideYes

Packaging content

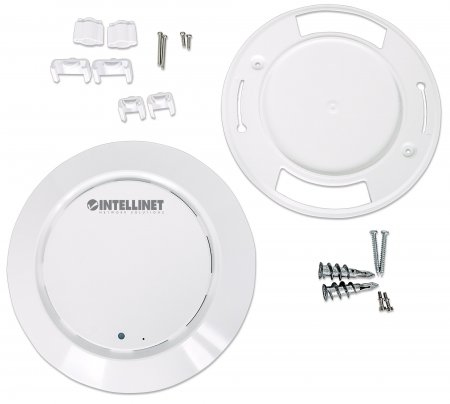

Mounting kitYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
