525831 wireless access point 1300 Mbit/s Black Power over Ethernet (PoE)
Model 525831EAN 766623525831
38 specifications
- Memory128 MB
- Speed1300 Mbit/s
- Weight318 g
- ColourBlack
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
Overview
- Memory
- 128 MB
- Speed
- 1300 Mbit/s
- Weight
- 318 g
- Colour
- Black
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- Intellinet
- Category
- Wireless Access Point
- Model
- 525831
- Part number
- 525831
- EAN / UPC
- 766623525831
- Also known as
- Intellinet 525831 wireless access point 1300 Mbit/s Black Power over Ethernet (PoE)
Specifications
38 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK |
| Transmitting power | 23 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |

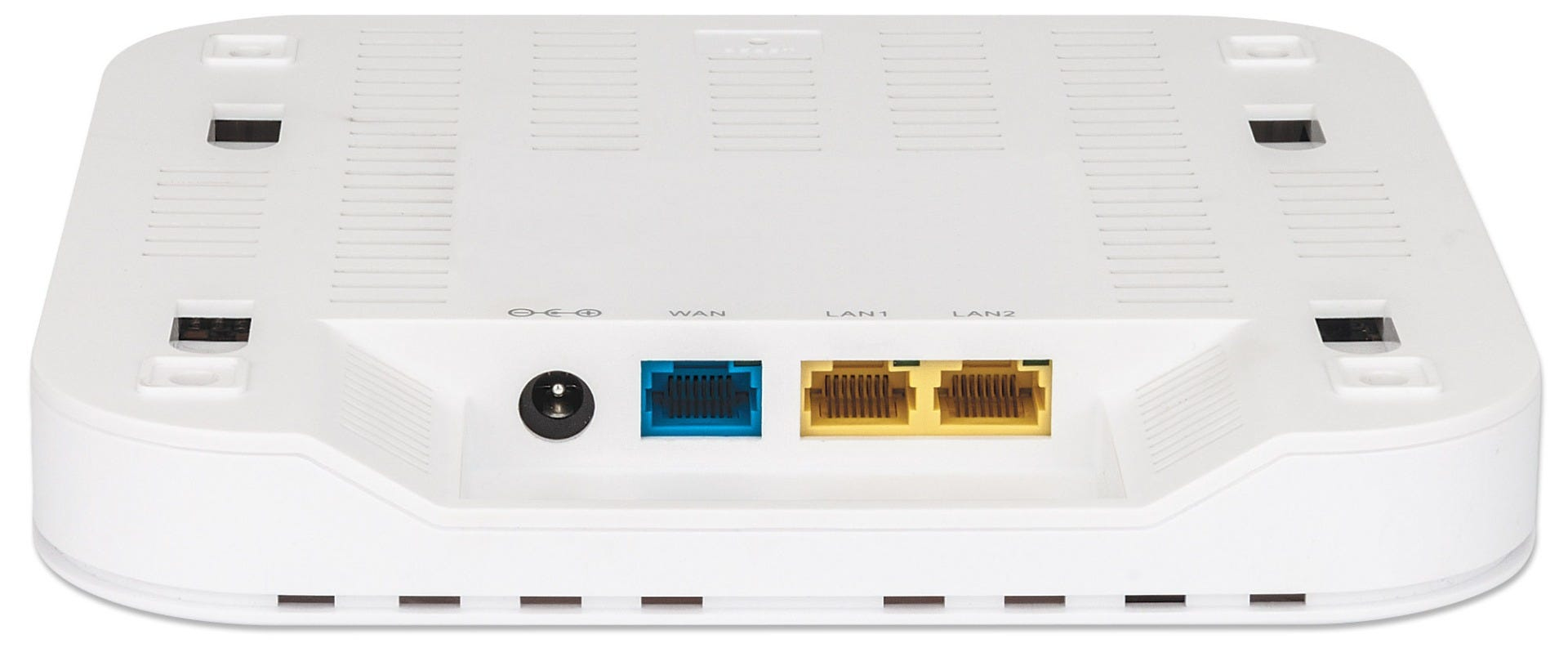

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1.5 A |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | Black |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 3 |
| Antenna gain level (max) | 3 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 16 MB |
| Internal memory | 128 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 180 mm |
| Height | 26 mm |
| Weight | 318 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
