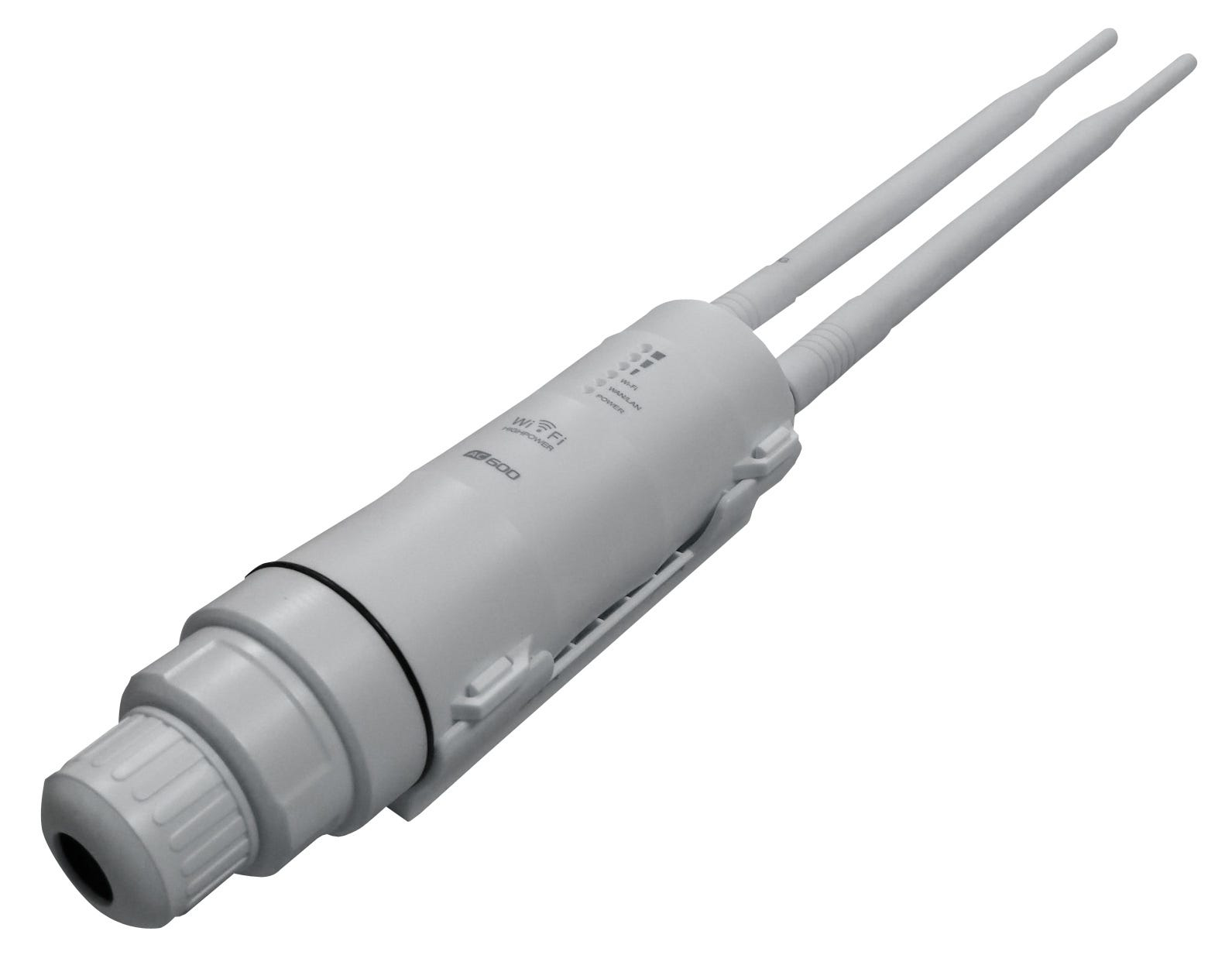

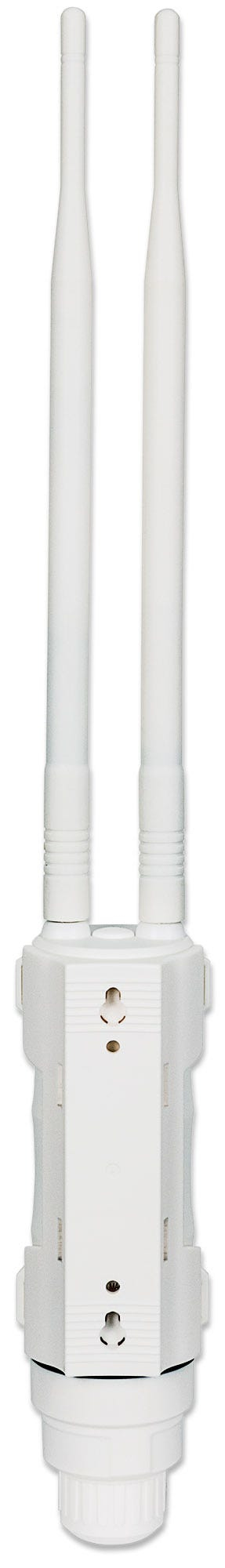

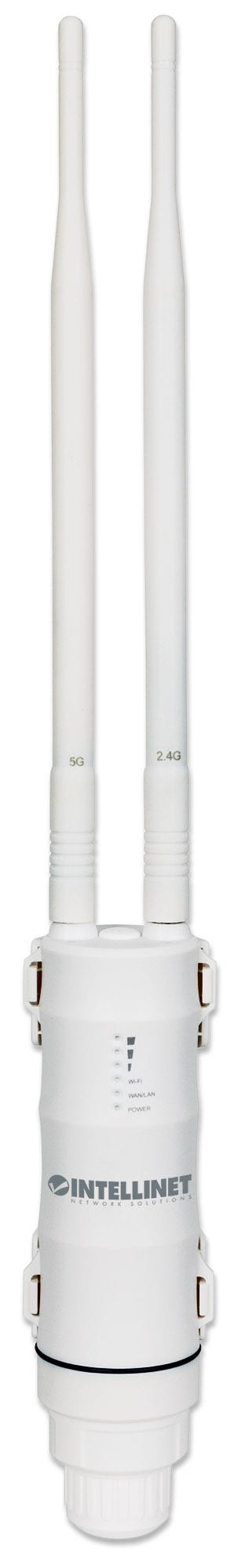

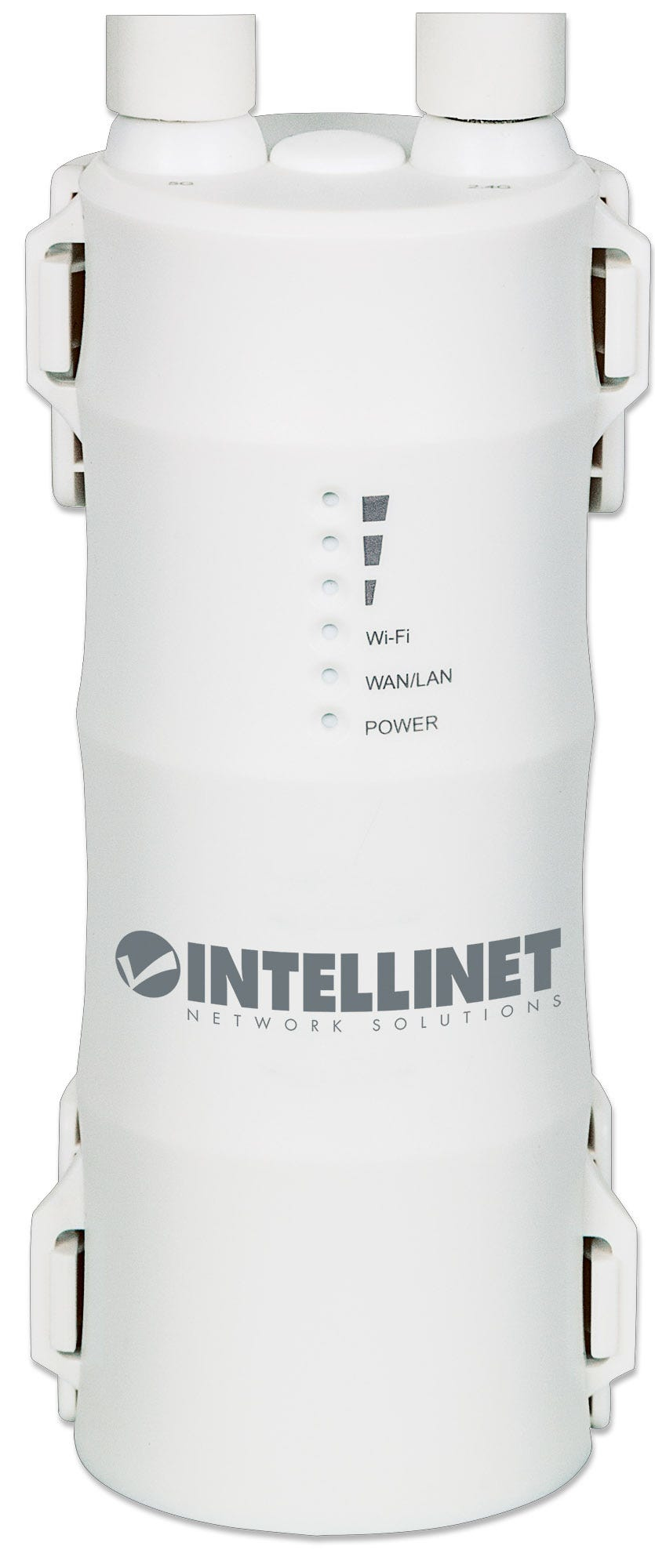

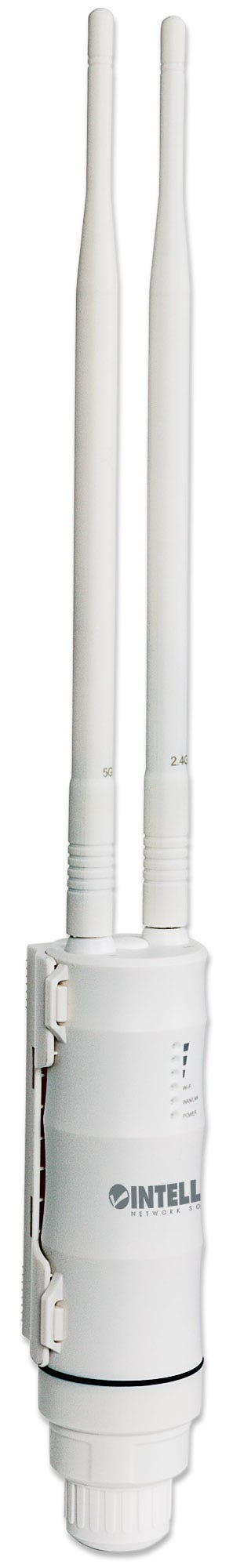

Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien
Model 525824EAN 766623525824
47 specifications
- Memory512 MB
- Speed433 Mbit/s
- Weight260 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
Overview
- Memory
- 512 MB
- Speed
- 433 Mbit/s
- Weight
- 260 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Intellinet
- Category
- Wireless Access Point
- Model
- 525824
- Part number
- 525824
- EAN / UPC
- 766623525824
- Also known as
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien
Specifications
47 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 433 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 150 Mbit/s |
| Maximum data transfer rate (5 GHz) | 433 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Modulation | 16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless isolation | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 28 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA2-PSK, WPS |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

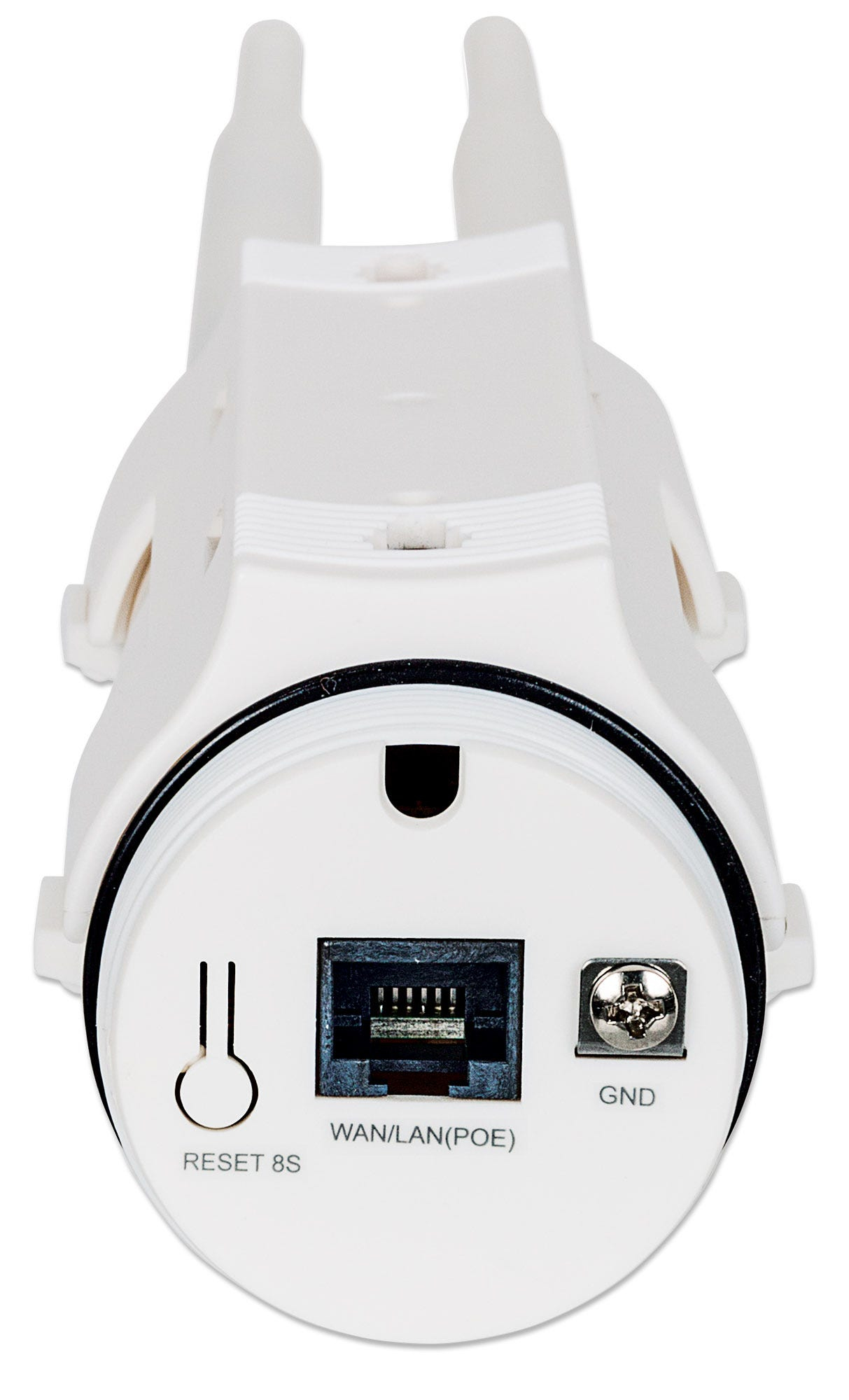

| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|

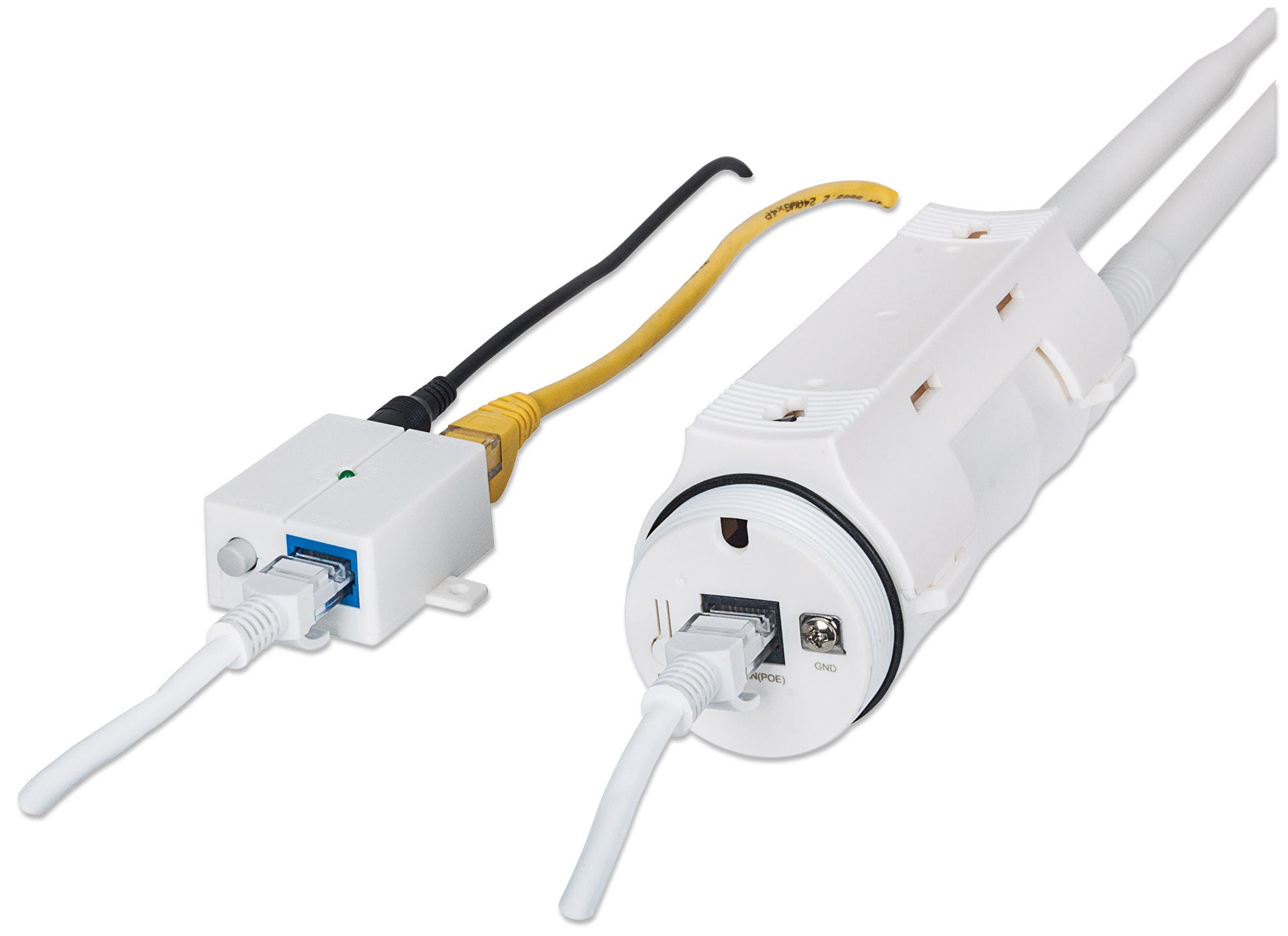

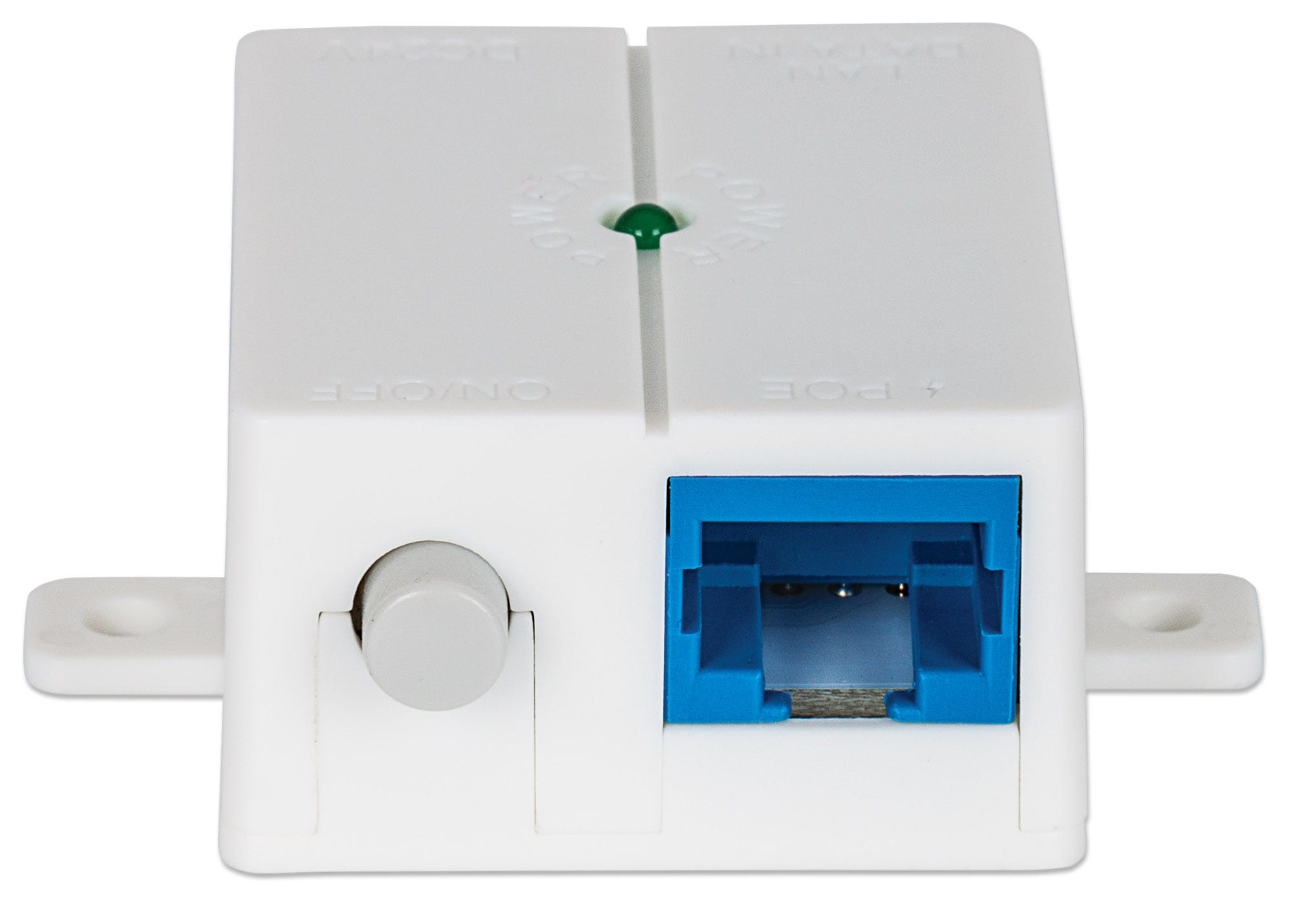

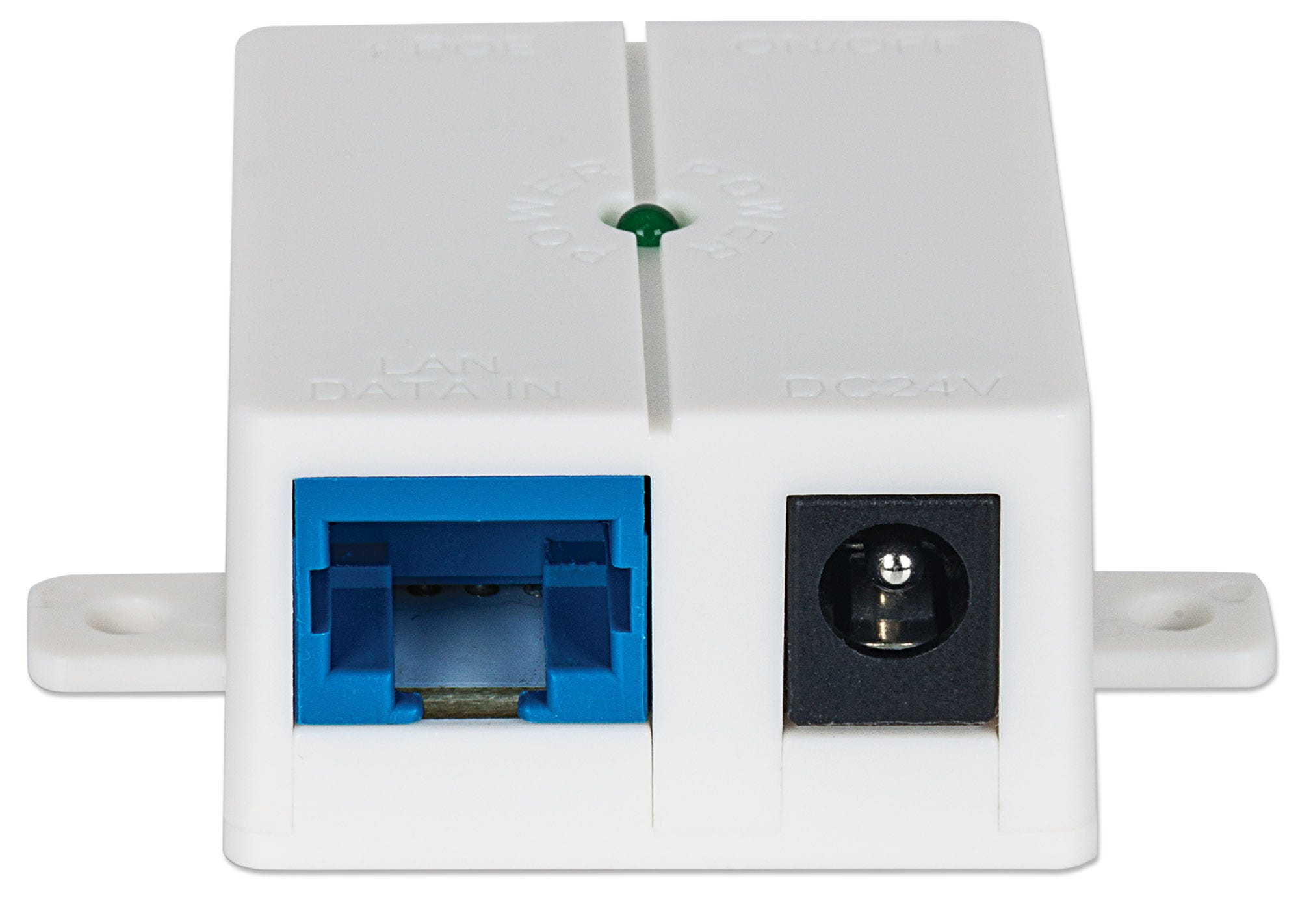

| Power over Ethernet (PoE) | Yes |
| Output voltage | 24 V |
| Output current | 0.5 A |
| Power consumption (max) | 7 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 7 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 64 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 55 mm |
| Depth | 428 mm |
| Height | 55 mm |
| Weight | 260 g |
Packaging data
| Specification | Value |
|---|---|
| CD manual | Yes |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien
No reviews yet
Be the first to tell others how Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien
All wireless access point comparisons- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsIntellinet High-Power Ceiling Mount Wireless 300N PoE Access Point, 300 Mbps, 2T2R MIMO, PoE Support, Multiple SSIDs and VLANs, 27 dBm, 400 mW (Euro 2-pin plug)Compare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsIntellinet 525831 wireless access point 1300 Mbit/s Black Power over Ethernet (PoE)Compare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsIntellinet 525787 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)Compare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsIntellinet 525794 wireless access point 150 Mbit/s WhiteCompare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsTP-Link CPE520 wireless access point 300 Mbit/s White Power over Ethernet (PoE)Compare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsAllied Telesis AT-TQ4400e 1175 Mbit/s White Power over Ethernet (PoE)Compare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsEnGenius ECB351 wireless access point 300 Mbit/s GreyCompare specs
- Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps Wireless AC (5 GHz) + 150 Mbps Wireless N (2.4 GHz), IP65, 28 dBm, Wireless Clien vsTP-Link EAP320 wireless access point 1000 Mbit/s White Power over Ethernet (PoE)Compare specs
Similar products
All wireless access points
Cudy
AC1300 1167 Mbit/s White Power over Ethernet (PoE)
Model AC1300
- Memory
- 128 MB
- Speed
- 1167 Mbit/s
- Weight
- 395.6 g
SilverNet
AP1200 1167 Mbit/s White Power over Ethernet (PoE)
Model AP1200
- Speed
- 1167 Mbit/s
- Weight
- 1.6 kg
- Colour
- White
TP-Link

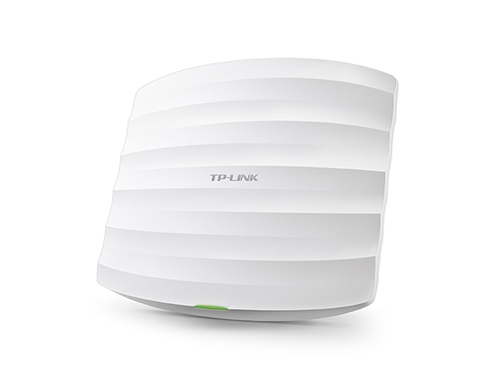

Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Model EAP245
- Speed
- 1750 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
SilverNet
AP1200-360 1167 Mbit/s White Power over Ethernet (PoE)
Model AP1200-360
- Speed
- 1167 Mbit/s
- Weight
- 2 kg
- Colour
- White
Cudy
BE3600 High Power Indoor/Outdoor Wi-Fi 7 Access Point, AP3600 Outdoor 1.0
- Memory
- 512 MB
- Speed
- 3570 Mbit/s
- Colour
- White
TP-Link
Omada EAP245(5-PACK)(EU) wireless access point 1750 Mbit/s White Power over Ethernet (PoE)
Model EAP245(5-PACK)(EU)
- Speed
- 1750 Mbit/s
- Colour
- White
- 2.4 GHz
- Yes
TP-Link

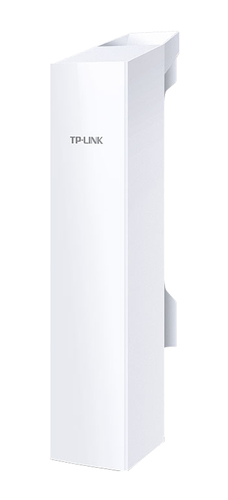

5GHz 300Mbps 13dBi Outdoor CPE
