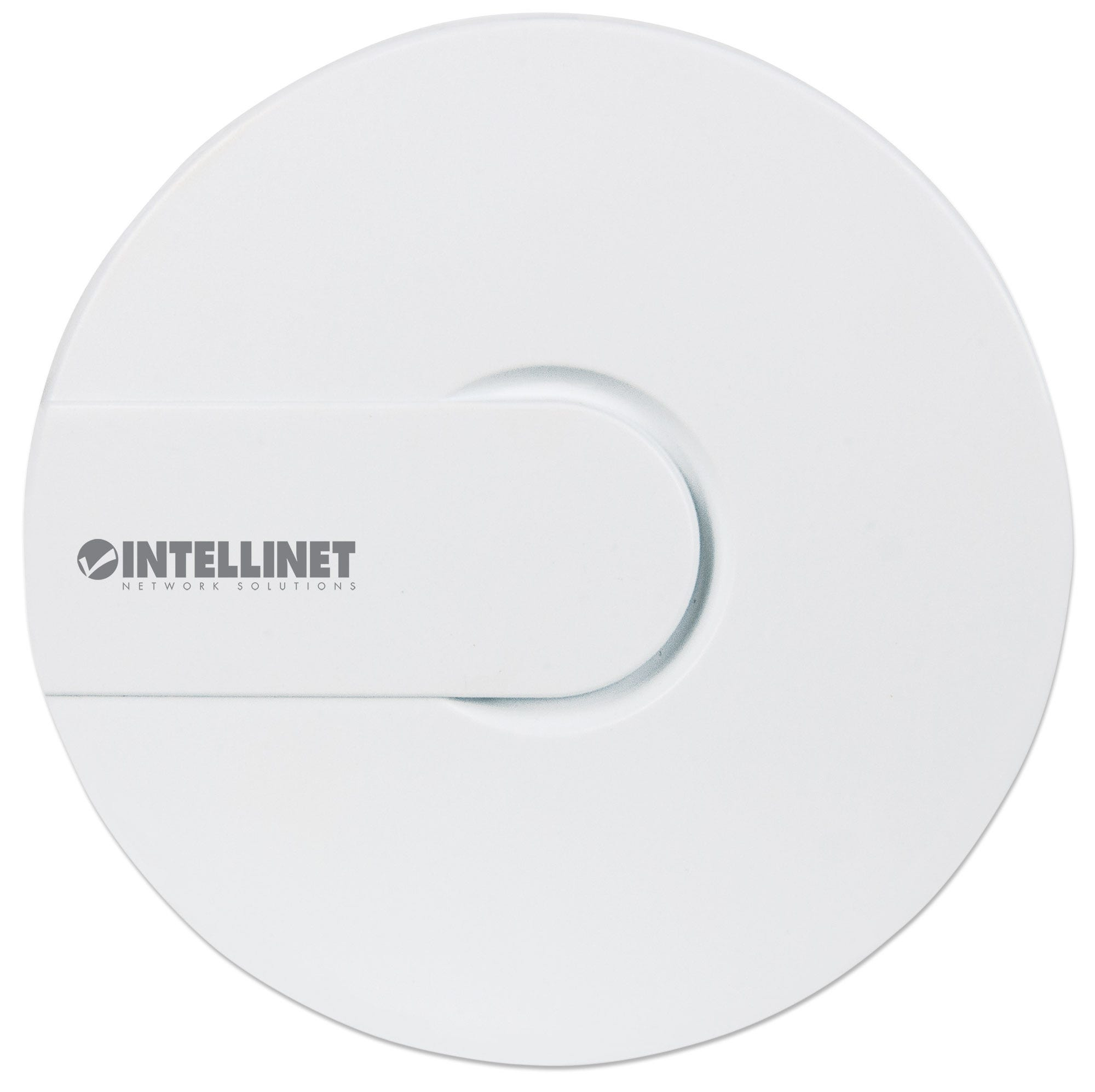

Intellinet High-Power Ceiling Mount Wireless 300N PoE Access Point, 300 Mbps, 2T2R MIMO, PoE Support, Multiple SSIDs and VLANs, 27 dBm, 400 mW (Euro 2-pin plug)

Intellinet High-Power Ceiling Mount Wireless 300N PoE Access Point, 300 Mbps, 2T2R MIMO, PoE Support, Multiple SSIDs and VLANs, 27 dBm, 400 mW (Euro 2-pin plug)

Model 525800EAN 766623525800

37 specifications
  • Memory64 MB
  • Speed100 Mbit/s
  • Weight466 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
64 MB
Speed
100 Mbit/s
Weight
466 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
Intellinet
Model
525800
Part number
525800
EAN / UPC
766623525800
Also known as
Intellinet High-Power Ceiling Mount Wireless 300N PoE Access Point, 300 Mbps, 2T2R MIMO, PoE Support, Multiple SSIDs and VLANs, 27 dBm, 400 mW (Euro 2-pin plug)

Specifications

37 specifications in 13 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate100 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 – 2.483 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Auto MDI/MDI-XYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK

Security

Security algorithms802.1x RADIUS, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES
MAC address filteringYes

Protocols

DHCP clientYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Output voltage48 V
Output current2 A
Power consumption (max)9 W

Design

Product colourWhite
LED indicatorsPower

Antenna

Antenna typeInternal
Antennas quantity2
Antenna gain level (max)3 dBi

Performance

ChipsetAtheros AR9341
Flash memory8 MB
Internal memory64 MB

Certificates

CertificationCC Class B, CE Mark, RoHS

Weight & dimensions

Width144 mm
Depth144 mm
Height42.5 mm
Weight466 g

Packaging content

Quantity per pack1 pc(s)
AC adapter includedYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Logistics data

Harmonized System (HS) code85176990
