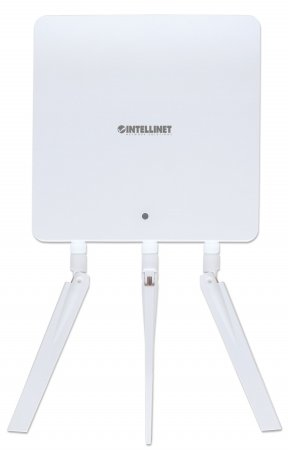

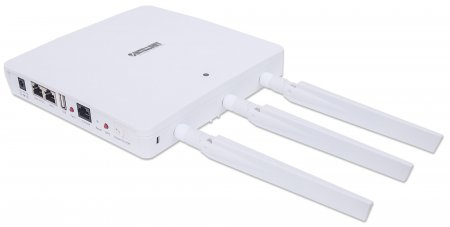

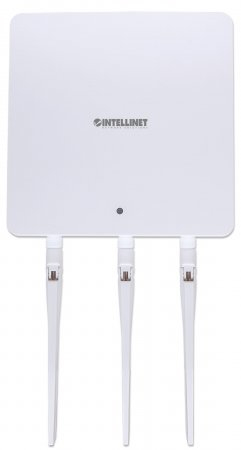

Intellinet 525787 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Intellinet 525787 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Model 525787EAN 766623525787

50 specifications
  • Memory128 MB
  • Speed1300 Mbit/s
  • Weight600 g
  • ColourWhite
  • 2.4 GHzYes
  • Management protocolsSNMPv1/v2c/v3
See all specifications

Overview

Memory
128 MB
Speed
1300 Mbit/s
Weight
600 g
Colour
White
2.4 GHz
Yes
Management protocols
SNMPv1/v2c/v3
Brand
Intellinet
Model
525787
Part number
525787
EAN / UPC
766623525787
Also known as
Intellinet 525787 wireless access point 1300 Mbit/s White Power over Ethernet (PoE)

Specifications

50 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Wi-Fi data rate (max)1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
Modulation16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wireless isolationYes
Transmitting power27.5 dBmW
Receiver sensitivity- 11a (6 Mbps): ‐89 dBm - 11a (54 Mbps): ‐72 dBm - 11a/n (MCS0 HT20): ‐89 dBm - 11a/n (MCS0 HT40): ‐86 dBm - 11a/n (MCS7 HT20): ‐66 dBm - 11a/n (MCS7 HT40): ‐68 dBm - 11ac (MCS0, VHT20/40/80): ‐84 dBm - 11ac (MCS9, VHT40/80): ‐56 dBm

Security

Security algorithmsWPA-RADIUS, 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-TKIP, WPA2, WPA2-AES, WPS
MAC address filteringYes
Auto Wireless Distribution System (WDS)Yes
Remote Authentication Dial-In User Service (RADIUS)Yes

Protocols

Management protocolsSNMPv1/v2c/v3

Management features

Web-based managementYes
Firmware upgradeableYes

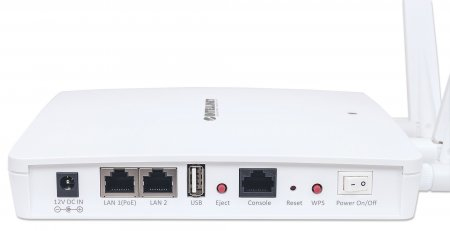

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity1
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Output voltage12 V
Output current4 A
Power consumption (max)18 W

Design

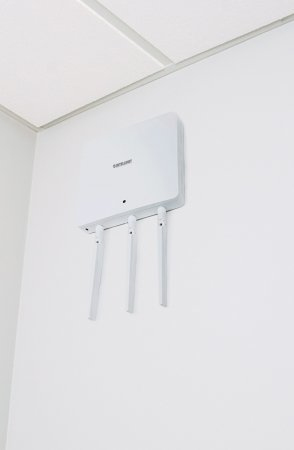

PlacementWall
Product colourWhite
On/off switchYes
Reset buttonYes
LED indicatorsYes
InternalNo

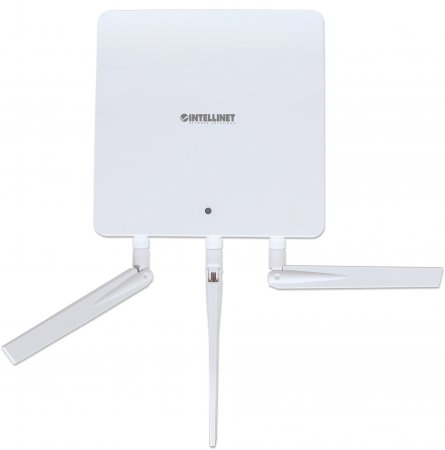

Antenna

Antenna typeExternal
Antennas quantity3
Antenna gain level (max)2 dBi
Antenna connector typeSMA

Performance

High powerYes
Built-in processorYes
Flash memory16 MB
Internal memory128 MB

Certificates

CertificationFCC Class B, CE, RoHS

Weight & dimensions

Width184 mm
Depth184 mm
Height36 mm
Weight600 g

Packaging data

CD quick installation guideYes

Packaging content

AC adapter includedYes
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
