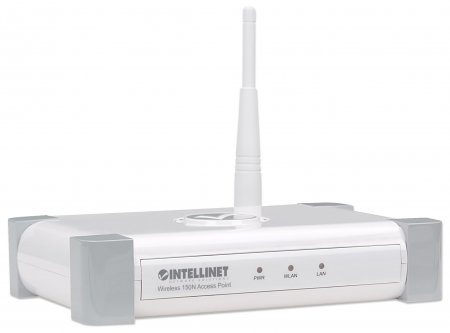

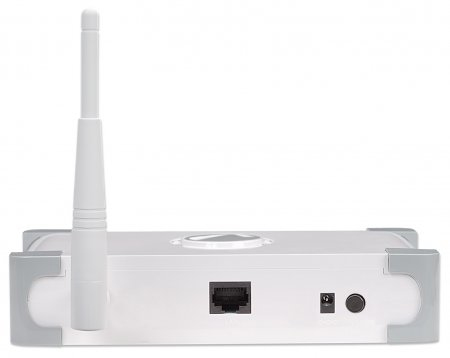

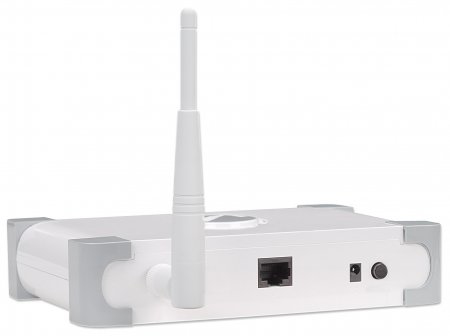

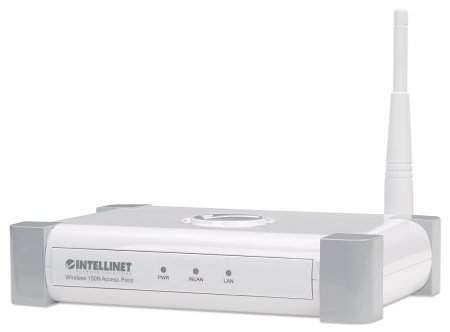

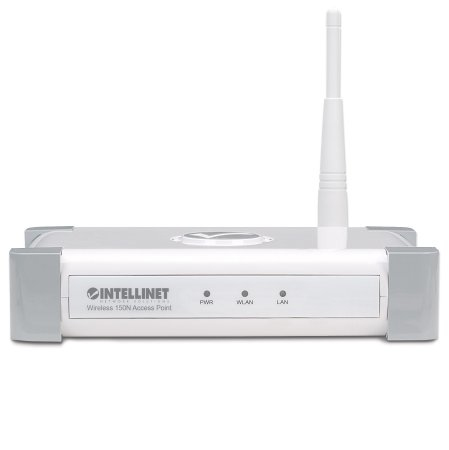

Intellinet 525404 wireless access point 150 Mbit/s White

Intellinet 525404 wireless access point 150 Mbit/s White

Model 525404EAN 751370995518

46 specifications
  • Memory16 MB
  • Speed150 Mbit/s
  • Weight560 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
16 MB
Speed
150 Mbit/s
Weight
560 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
Intellinet
Model
525404
Part number
525404
EAN / UPC
751370995518, 766623525404, 7666235254040
Also known as
Intellinet 525404 wireless access point 150 Mbit/s White

Specifications

46 specifications in 13 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate150 Mbit/s
Wi-Fi data rate (max)150 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.483 GHz
Bandwidth2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Auto MDI/MDI-XYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DBQSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Repeater,P2P Bridge,P2MP Bridge,WDS

Security

Security algorithmsWPA-RADIUS, 64-bit WEP, 128-bit WEP, 802.1x RADIUS, AES, TKIP, WEP, WPA, WPA-TKIP, WPA2, WPA2-AES, WPS
MAC address filteringYes

Protocols

DHCP serverYes

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)No
Output voltage5 V
Output current1 A
Power consumption (max)4 W

Design

PlacementTable
Product colourWhite
LED indicatorsYes
InternalNo

Antenna

Antenna typeExternal
Antenna featuresDetachable antenna
Antennas quantity1
Antenna gain level (max)3 dBi

Performance

Flash memory2 MB
Internal memory16 MB

Certificates

CertificationFCC Class B, CE

Weight & dimensions

Width160 mm
Depth127 mm
Height35 mm
Weight560 g

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
