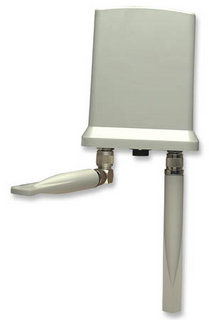

Intellinet 300N Outdoor

Intellinet 300N Outdoor

Model 300N OutdoorPart no. 524711EAN 191120093116

48 specifications
  • ProcessorRalink RT3052
  • Memory16 MB
  • Speed300 Mbit/s
  • Weight2.3 kg
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Processor
Ralink RT3052
Memory
16 MB
Speed
300 Mbit/s
Weight
2.3 kg
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
Intellinet
Model
300N Outdoor
Part number
524711
EAN / UPC
191120093116, 766623524711, 7666235247110
Also known as
Intellinet 300N Outdoor 300 Mbit/s Power over Ethernet (PoE)

Specifications

48 specifications in 14 groups

Features

2.4 GHzYes
Maximum data transfer rate300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.483 GHz
Cabling technology10/100BASE-T(X)
Channels quantity2 channels
VLAN supportYes

Security

Security algorithms128-bit WEP, 256-bit WEP, WPA, WPA-AES, WPA2
MAC address filteringYes
Remote Authentication Dial-In User Service (RADIUS)Yes

Protocols

DHCP serverYes
Supported network protocolsTCP/IP
Media access protocol100Base-TX
Supported protocolsIEEE 802.1d IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.1x IEEE 802.3 IEEE 802.3af IEEE 802.3u

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 Hz
AC input voltage48 V
Power consumption (typical)3.5 W
Power requirements48 V, 0.35 A
Power supply typeAC/DC

Design

LED indicatorsNo
Cable length1 m
InternalNo

Antenna

Antenna typeExternal
Antenna featuresDipole antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Antenna connector typeBNC

Performance

Built-in processorYes
Processor modelRalink RT3052
Flash memory8 MB
Internal memory16 MB

Certificates

CertificationFCC Class B, IP 67, CE, RoHS

Weight & dimensions

Dimensions (WxDxH)88 x 134 x 176 mm
Weight2.3 kg

Packaging content

AC adapter includedYes

Other features

Supported data transfer rates10/11/54/100/300 Mbit/s
Outdoor rangeYes
Rack mountingNo
Wireless technologyWi-Fi
Wireless standardIEEE 802.11b, g, n

Operational conditions

Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-40 - 80 °C
Storage relative humidity (H-H)10 - 90%
