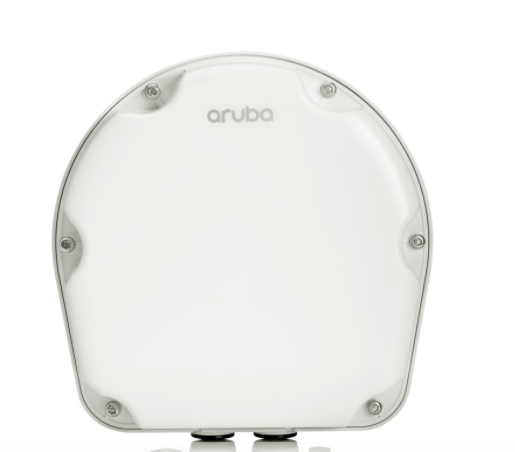

AP-577 RW
Model AP-577 RWPart no. R4H22A
32 specifications
- Weight2.1 kg
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports2
- PlacementPole, Wall
Overview
- Weight
- 2.1 kg
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Pole, Wall
- Brand
- HP
- Category
- Wireless Access Point
- Model
- AP-577 RW
- Part number
- R4H22A
- Also known as
- HP AP-577 RW White Power over Ethernet (PoE)
Specifications
32 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| USB connector type | USB Type-C |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 32 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 5.6 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 220 mm |
| Height | 130 mm |
| Weight | 2.1 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | -40 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 3000 m |
