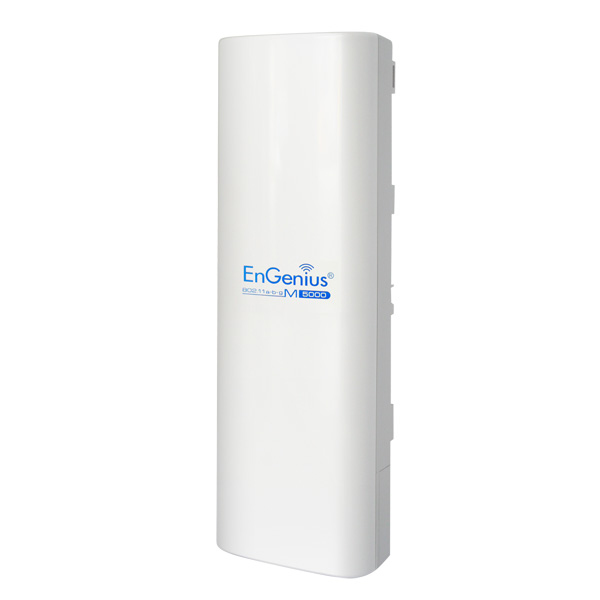

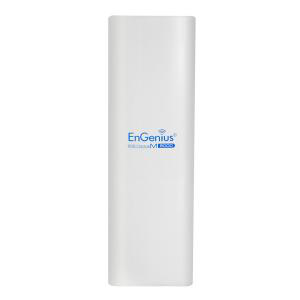

EnGenius M5000 wireless access point 54 Mbit/s
Model M5000EAN 655216004771
34 specifications
- Memory32 MB
- Speed54 Mbit/s
- ConnectivityRJ-45
- Weight300 g
- MAC address filteringYes
- AC input voltage24 V
Overview
- Memory
- 32 MB
- Speed
- 54 Mbit/s
- Connectivity
- RJ-45
- Weight
- 300 g
- MAC address filtering
- Yes
- AC input voltage
- 24 V
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- M5000
- Part number
- M5000
- EAN / UPC
- 655216004771, 6552160047714
- Also known as
- EnGenius M5000 wireless access point 54 Mbit/s
Specifications
34 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Channels quantity | 13 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2 |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP V1, V2c, MIB MIB I, MIB II |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | Yes |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 2 |
| Antenna gain level (max) | 14 dBi |
| Antenna connector type | SMA |
Performance
| Specification | Value |
|---|---|
| Flash memory | 8 MB |
| Internal memory | 32 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, EN, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 84 x 260 x 55 mm |
| Weight | 300 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Frequency range | 2.412 - 2.472 MHz |
| Networking features | Fast Ethernet |
| Wireless technology | 802.11 a/b/g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 70 °C |
