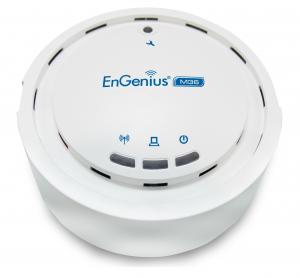

EnGenius M36 108 Mbit/s Power over Ethernet (PoE)
Model M36Part no. M-36EAN 655216004788
34 specifications
- ProcessorQualcomm Atheros AR2316
- Memory32 MB
- Speed108 Mbit/s
- Weight280 g
- 2.4 GHzYes
- Security algorithms802.1x RADIUS, SSID, WPA, WPA2
Overview
- Processor
- Qualcomm Atheros AR2316
- Memory
- 32 MB
- Speed
- 108 Mbit/s
- Weight
- 280 g
- 2.4 GHz
- Yes
- Security algorithms
- 802.1x RADIUS, SSID, WPA, WPA2
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- M36
- Part numbers
- M-36, M36
- EAN / UPC
- 655216004788, 6552160047882
- Also known as
- EnGenius M36 108 Mbit/s Power over Ethernet (PoE)
Specifications
34 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 - 2.484 GHz |
| Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSID, WPA, WPA2 |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Management protocols | SNMP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 100 - 240 VDC ± 10％, 50/60 Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 4 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR2316 |
| Processor frequency | 180 MHz |
| Flash memory | 8 MB |
| Internal memory | 32 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15, ETSI 300/328/CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 120 x 120 x 50 mm |
| Weight | 280 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 108, 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbit/s |
| Compliance industry standards | IEEE 802.3a/f |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Wireless technology | 802.11b/g/n |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
