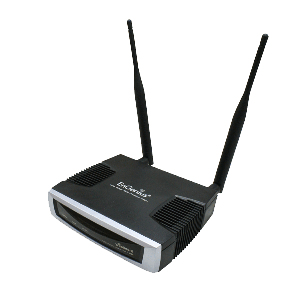

EnGenius M35 108 Mbit/s Power over Ethernet (PoE)
Model M35Part no. M-35EAN 655216004795
32 specifications
- ProcessorQualcomm Atheros AR2316
- Memory32 MB
- Speed108 Mbit/s
- Weight350 g
- Security algorithms802.1x RADIUS, WEP, WPA, WPA2
- DHCP serverYes
Overview
- Processor
- Qualcomm Atheros AR2316
- Memory
- 32 MB
- Speed
- 108 Mbit/s
- Weight
- 350 g
- Security algorithms
- 802.1x RADIUS, WEP, WPA, WPA2
- DHCP server
- Yes
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- M35
- Part numbers
- M-35, M35
- EAN / UPC
- 655216004795, 6552160047950
- Also known as
- EnGenius M35 108 Mbit/s Power over Ethernet (PoE)
Specifications
32 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 108 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.412 - 2.472 GHz |
| Bandwidth | 2.4 GHz |
| Modulation | 16-QAM, 64-QAM, CCK, DQPSK, QPSK |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, WEP, WPA, WPA2 |
| MAC address filtering | Yes |
| VPN support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP v1, v2c |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 90 - 240VDC ± 10%, 50/60Hz |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR2316 |
| Flash memory | 8 MB |
| Internal memory | 32 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 108 x 125 x 31 mm |
| Weight | 350 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbit/s |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g, IEEE 802.3af |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Wireless technology | 802.11b/g/n |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
What people say
Reviews & ratings
EnGenius M35 108 Mbit/s Power over Ethernet (PoE)
No reviews yet
Be the first to tell others how EnGenius M35 108 Mbit/s Power over Ethernet (PoE) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare EnGenius M35 108 Mbit/s Power over Ethernet (PoE)
All wireless access point comparisons- EnGenius M35 108 Mbit/s Power over Ethernet (PoE) vsEnGenius M36 108 Mbit/s Power over Ethernet (PoE)Compare specs

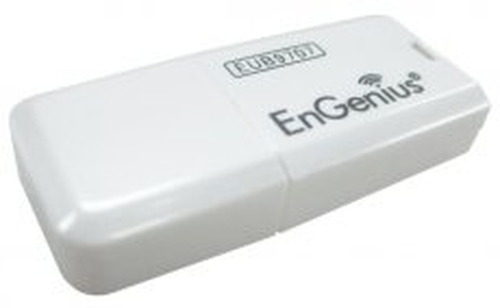

- EnGenius M35 108 Mbit/s Power over Ethernet (PoE) vsEnGenius EUB9707 wireless access point 150 Mbit/sCompare specs
