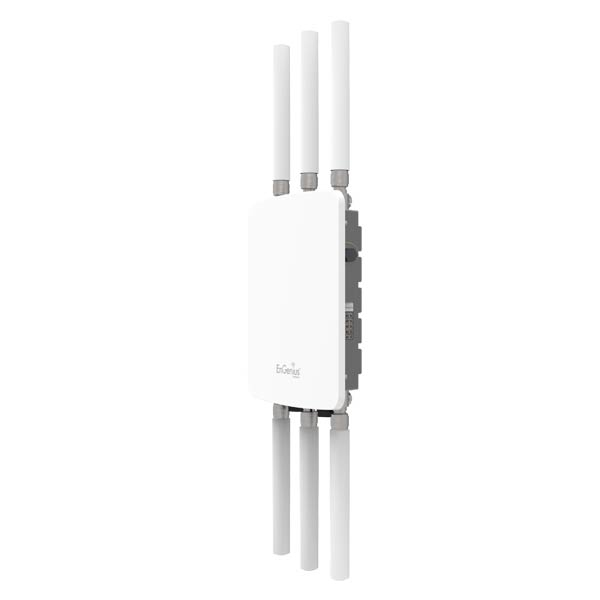

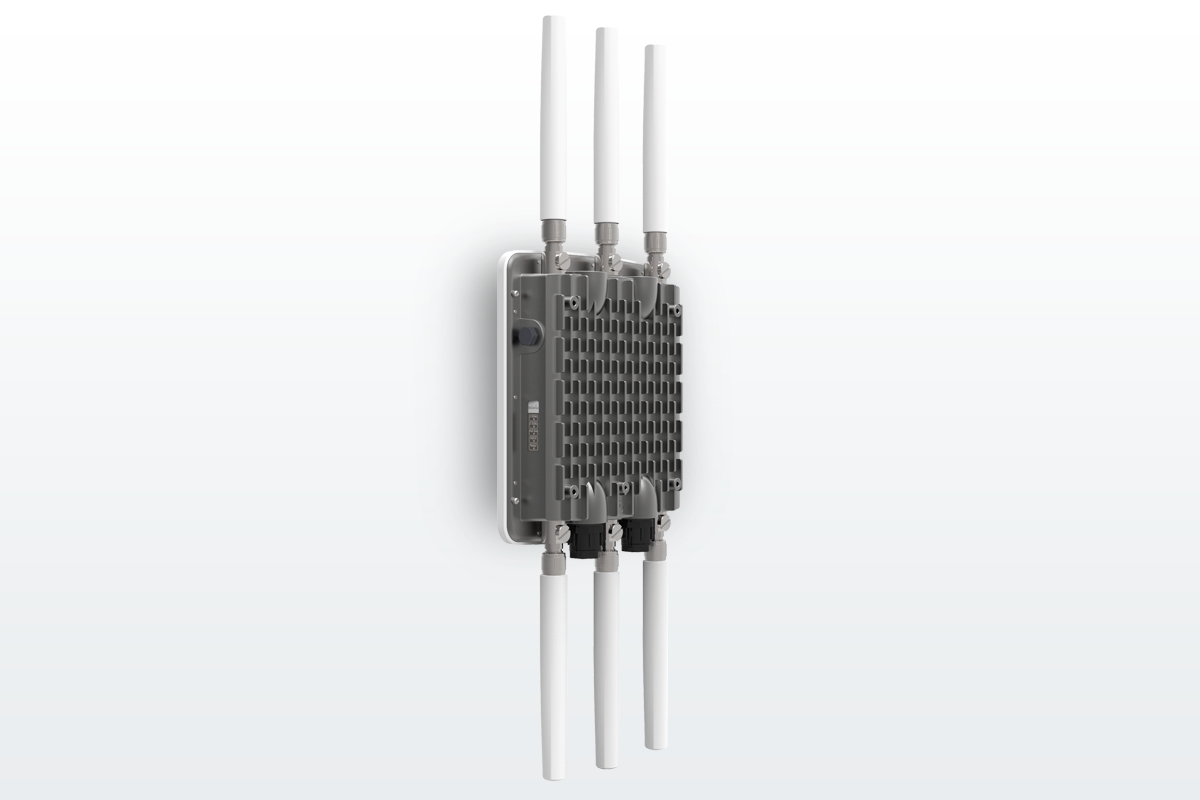

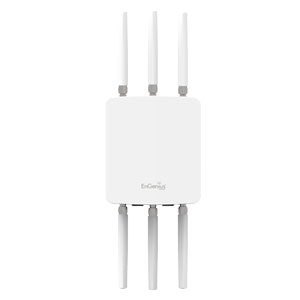

EnGenius EWS860AP Managed AP Outdoor Dual Band 11ac AC1750 450+1300Mbps 3T3R GbE PoE.at

EnGenius EWS860AP Managed AP Outdoor Dual Band 11ac AC1750 450+1300Mbps 3T3R GbE PoE.at

3 x 5dBi +3 x 7dBi N-type IP68

Model EWS860APEAN 655216007314

59 specifications
  • Memory256 MB
  • Speed1300 Mbit/s
  • Weight1.8 kg
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Memory
256 MB
Speed
1300 Mbit/s
Weight
1.8 kg
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
2
Brand
EnGenius
Model
EWS860AP
Part number
EWS860AP
EAN / UPC
655216007314, 4713361931710, 6552160073140
Also known as
EnGenius EWS860AP Managed AP Outdoor Dual Band 11ac AC1750 450+1300Mbps 3T3R GbE PoE.at 3 x 5dBi +3 x 7dBi N-type IP68

Specifications

59 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1300 Mbit/s
Wi-Fi data rate (max)1300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4, 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at
Number of users100 user(s)
Channels quantity11 channels
Channel bandwidth40 MHz
Modulation64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Rate limitingYes
Quality of Service (QoS) supportYes
Transmitting power15 dBmW

Security

Security algorithms802.1x RADIUS, AES, SSID, TKIP, WPA, WPA-EAP, WPA-PSK, WPA2
MAC address filteringYes
IP address filteringYes
Number of SSID supported16

Protocols

DHCP serverYes
DHCP clientYes
Management protocolsSNMP v1/v2c, MIB I/II

Management features

Web-based managementYes
Switch typeManaged
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current0.8 A
Power consumption (max)35.7 W

Design

PlacementWall
Product colourWhite
International Protection (IP) codeIP68
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity6
Antenna gain level (max)7 dBi

Performance

Flash memory16 MB
Internal memory256 MB

Certificates

CertificationFCC, IC

Weight & dimensions

Width217.9 mm
Depth284.9 mm
Height53.3 mm
Weight1.8 kg

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-30 - 80 °C
Storage relative humidity (H-H)0 - 90%

Logistics data

Harmonized System (HS) code85176990
