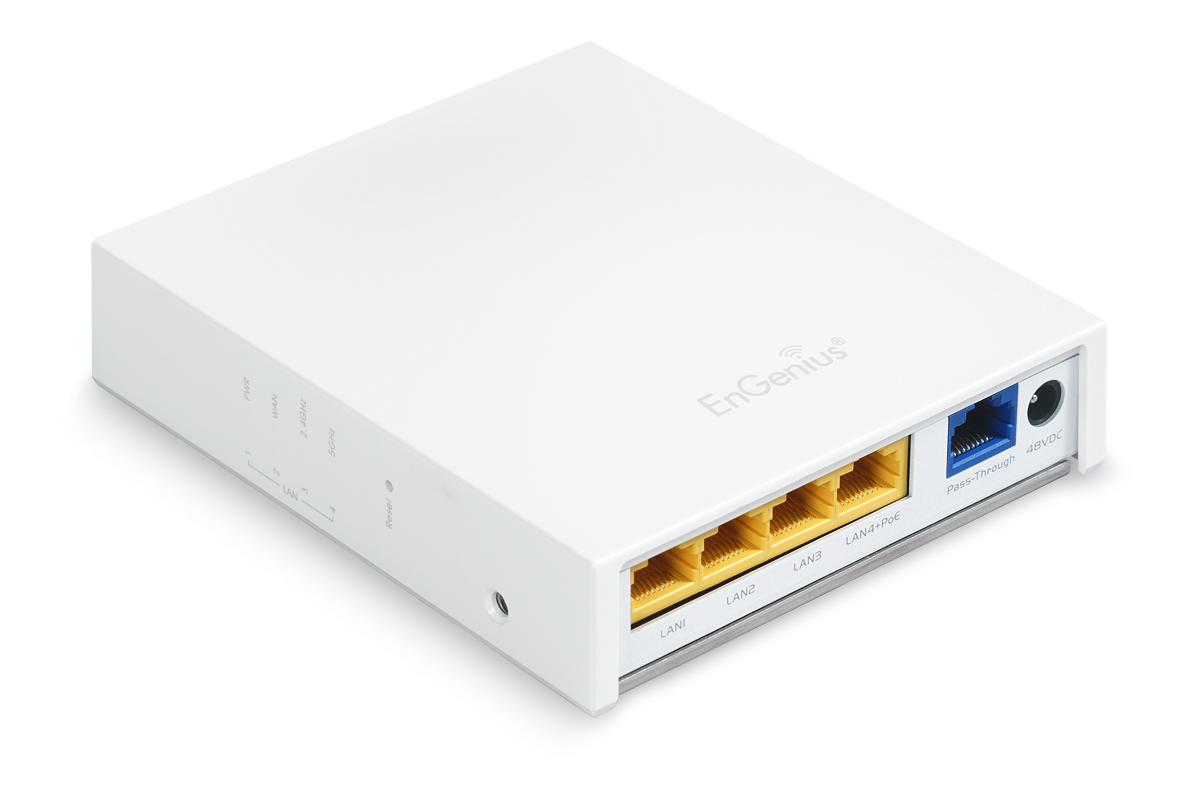

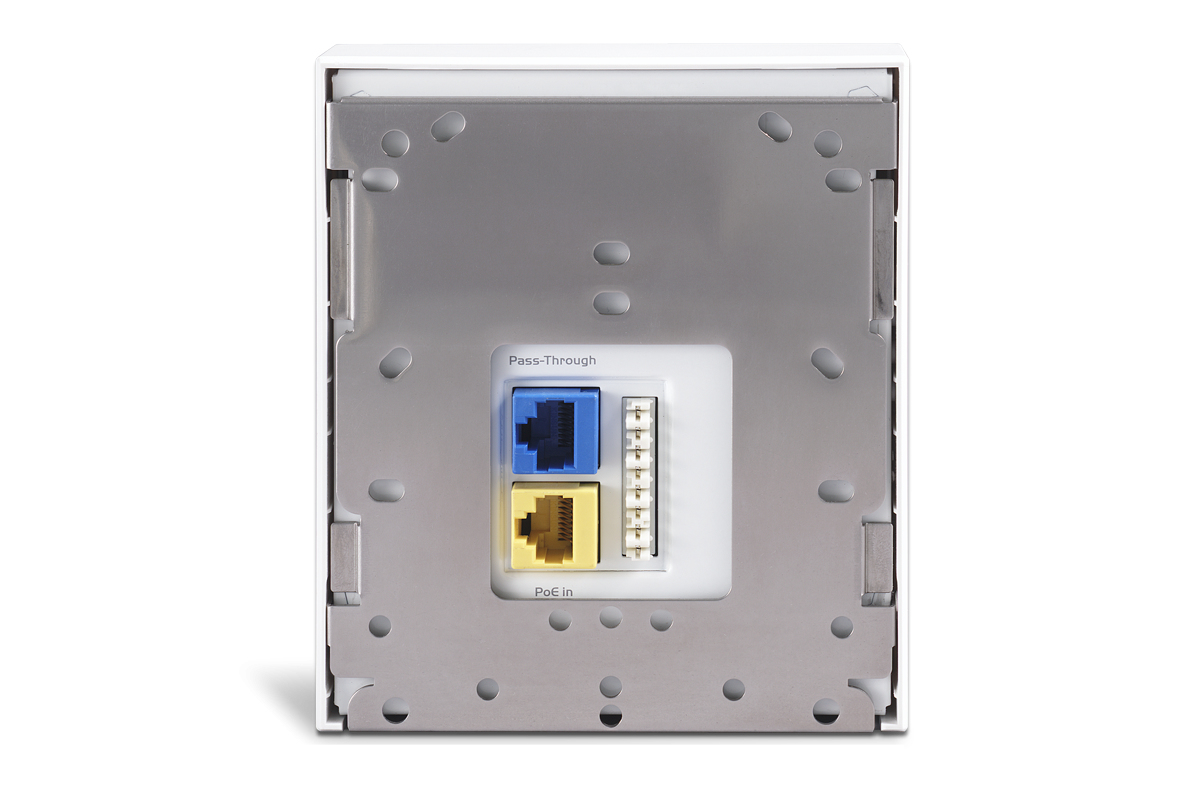

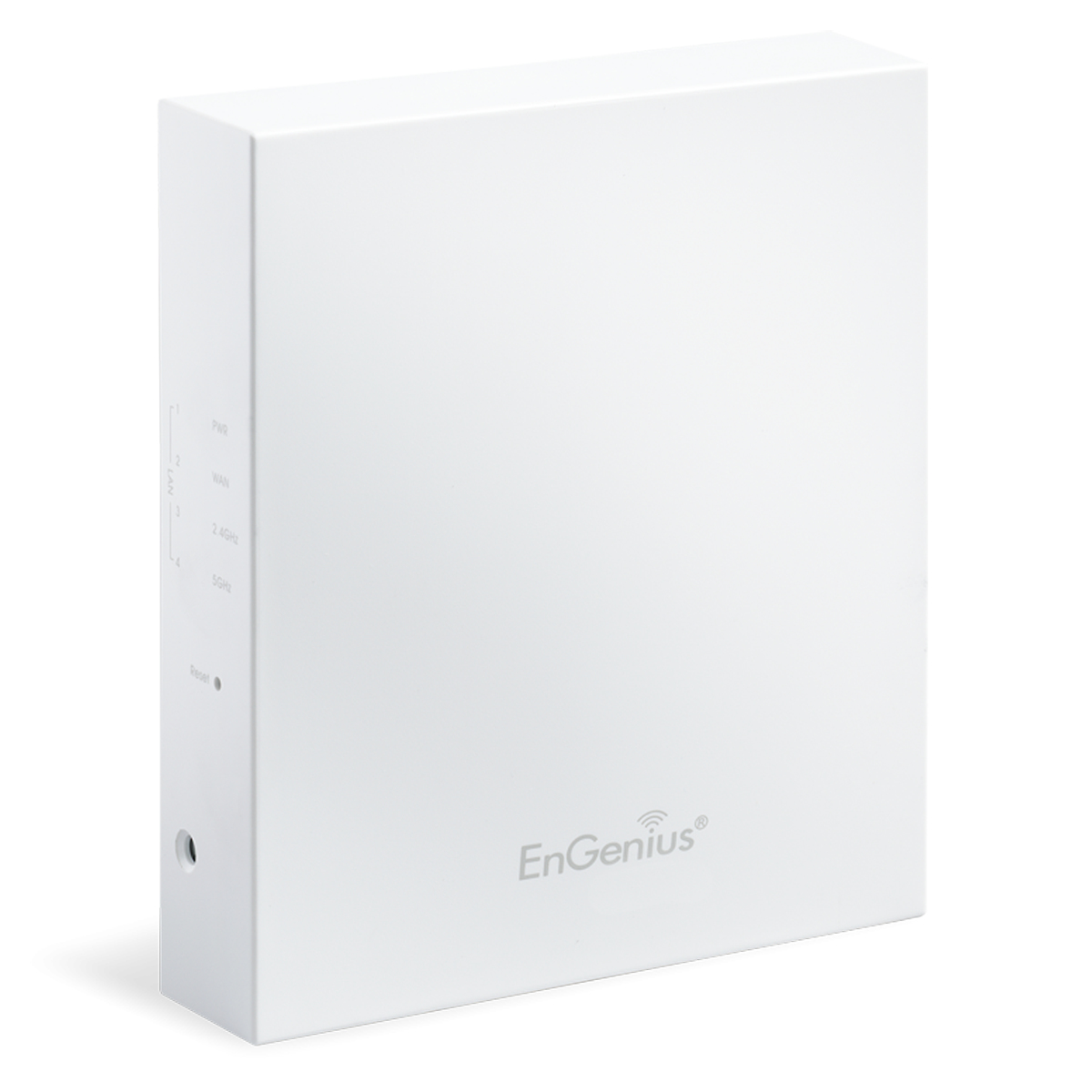

EnGenius EWS500AP wireless access point 300 Mbit/s White Power over Ethernet (PoE)

EnGenius EWS500AP wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model EWS500APEAN 655216007611

43 specifications
  • Memory128 MB
  • Speed300 Mbit/s
  • Weight296 g
  • ColourWhite
  • 2.4 GHzYes
  • Number of SSID supported8
See all specifications

Overview

Memory
128 MB
Speed
300 Mbit/s
Weight
296 g
Colour
White
2.4 GHz
Yes
Number of SSID supported
8
Brand
EnGenius
Model
EWS500AP
Part number
EWS500AP
EAN / UPC
655216007611, 6552160076110
Also known as
EnGenius EWS500AP wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

43 specifications in 11 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Networking standardsIEEE 802.3af, IEEE 802.3at
Number of users100 user(s)
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithms802.1x RADIUS, MD5, PEAP, SSID, WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2
Number of SSID supported8

Management features

Web-based managementYes
SyslogYes
Switch typeManaged

Ports & interfaces

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Output voltage48 V
Output current0.8 A
Power consumption (typical)7.5 W

Design

PlacementWall
Product colourWhite
Reset buttonYes
LED indicatorsYes
InternalYes

Antenna

Antenna featuresIntegrated antenna
Antennas quantity2
Antenna gain level (max)4 dBi

Performance

Flash memory16 MB
Internal memory128 MB

Certificates

CertificationFCC, IC, CE

Weight & dimensions

Width110 mm
Depth37 mm
Height130 mm
Weight296 g

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90%
