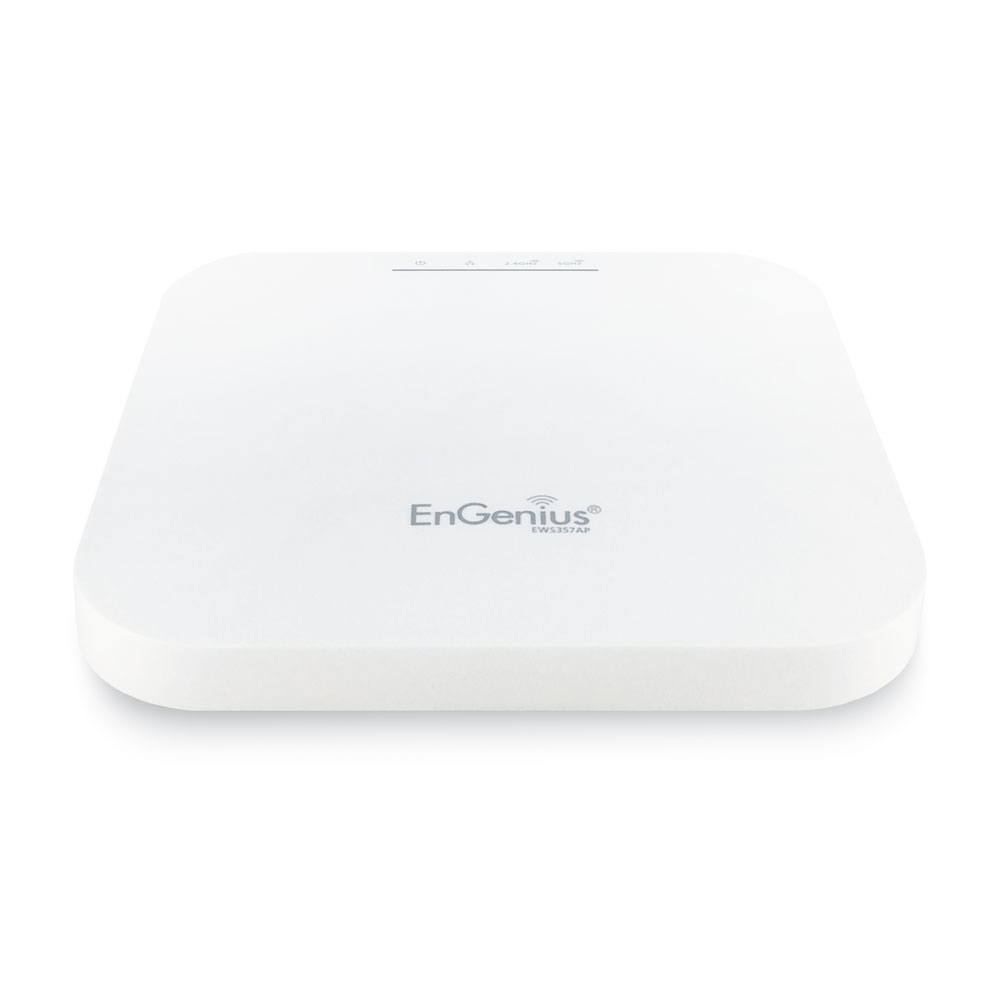

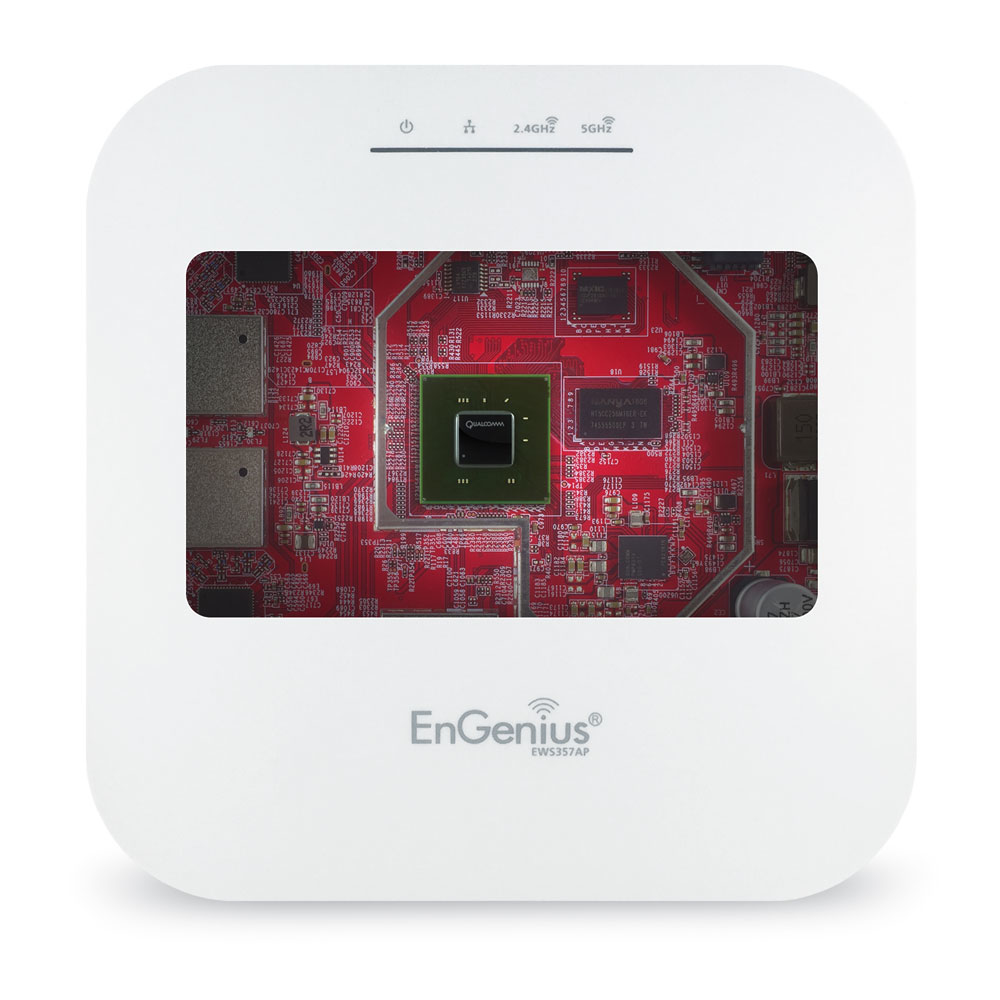

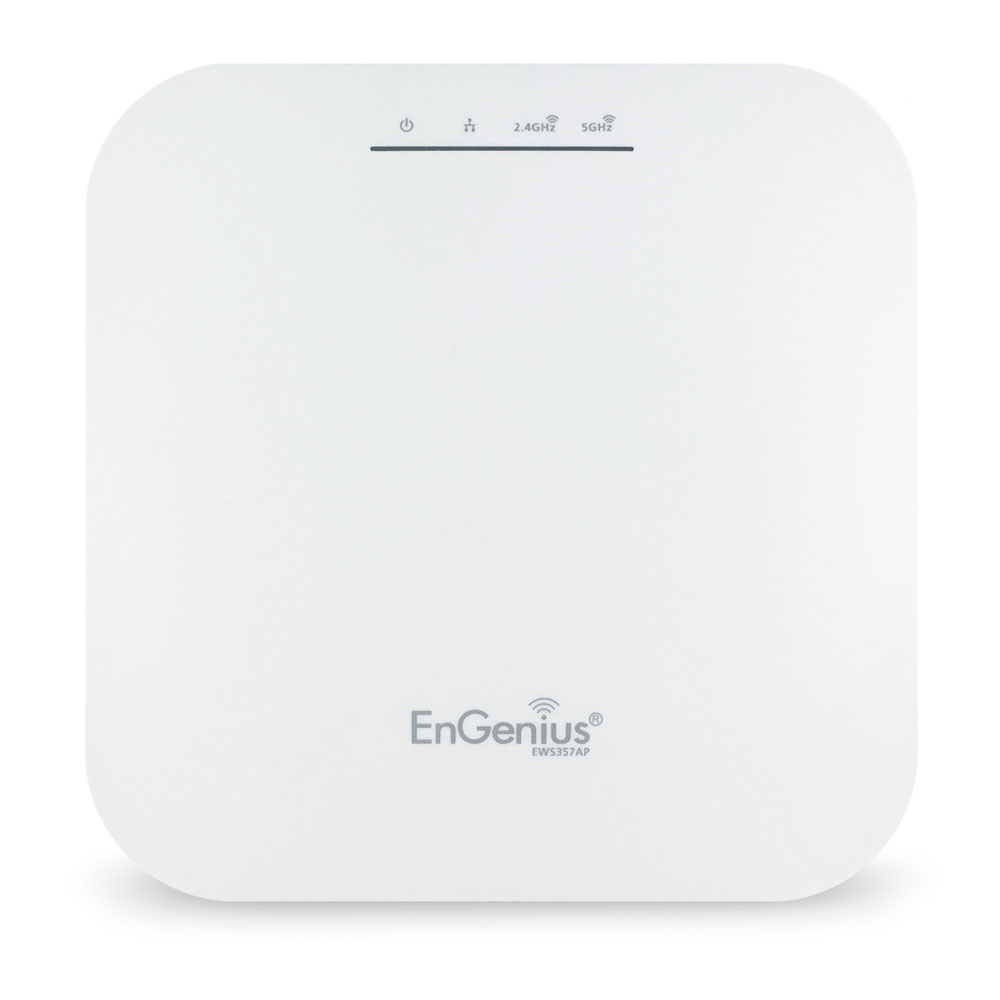

EWS357AP WiFi 6 Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia
Model EWS357APEAN 655216009479
49 specifications
- Speed1200 Mbit/s
- Weight560 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsAES, SSH, SSID, WPA2-Enterprise
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 1200 Mbit/s
- Weight
- 560 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- AES, SSH, SSID, WPA2-Enterprise
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EWS357AP
- Part number
- EWS357AP
- EAN / UPC
- 655216009479, 4713361934667
- Also known as
- EnGenius EWS357AP WiFi 6 Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia
Specifications
49 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3af |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| STA isolation (same VLAN) | Yes |
| Quality of Service (QoS) support | Yes |
| Transmitting power | 20 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | AES, SSH, SSID, WPA2-Enterprise |
| MAC address filtering | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1.25 A |
| Power consumption (max) | 12.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, WLAN |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 3 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.2 mm |
| Weight | 560 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 83 mm |
| Package height | 205 mm |
| Package weight | 580 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 6.8 kg |
| Products per master (outer) case | 10 pc(s) |
