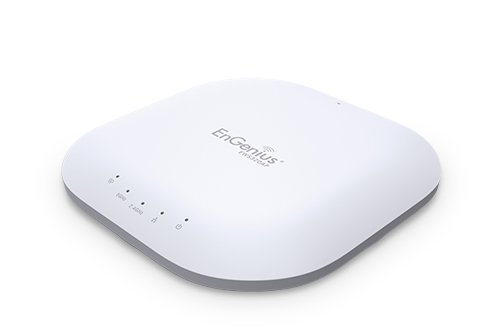

EnGenius EWS320AP wireless access point 450 Mbit/s White Power over Ethernet (PoE)

EnGenius EWS320AP wireless access point 450 Mbit/s White Power over Ethernet (PoE)

Model EWS320APEAN 655216007123

56 specifications
  • Memory64 MB
  • Speed450 Mbit/s
  • Weight362.8 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
64 MB
Speed
450 Mbit/s
Weight
362.8 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
EnGenius
Model
EWS320AP
Part number
EWS320AP
EAN / UPC
655216007123, 6552160071238
Also known as
EnGenius EWS320AP wireless access point 450 Mbit/s White Power over Ethernet (PoE)

Specifications

56 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate450 Mbit/s
Wi-Fi data rate (max)450 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at
Channels quantity11 channels
Channel bandwidth40 MHz
Modulation64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Operating modesAccess Point (AP)
Quality of Service (QoS) supportYes
Transmitting power15 dBmW

Security

Security algorithms802.1x RADIUS, EAP-MD5, EAP-TLS, EAP-TTLS, SNMP, SSID, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-TKIP
MAC address filteringYes
IP address filteringYes
Number of SSID supported16

Protocols

DHCP serverYes
DHCP clientYes
Management protocolsSNMP v1/v2c, MIB I/II

Management features

Web-based managementYes
Switch typeManaged
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Input current2 A
Power consumption (max)18.2 W

Design

PlacementTable, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antennas quantity6
Antenna gain level (max)5 dBi

Performance

Flash memory16 MB
Internal memory64 MB

Certificates

CertificationFCC, IC

Weight & dimensions

Width161.5 mm
Depth161.5 mm
Height41.6 mm
Weight362.8 g

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90%

Logistics data

Harmonized System (HS) code85176990
