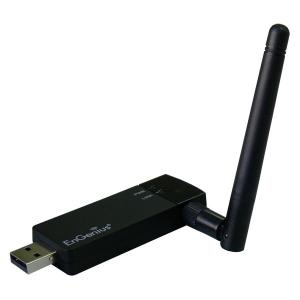

EnGenius EUB9603 EXT
Model EUB9603 EXTPart no. EUB9603EXTEAN 655216004597
18 specifications
- Speed54 Mbit/s
- 2.4 GHzYes
- USB 2.0 ports quantity1
- Antenna typeExternal
Overview
- Speed
- 54 Mbit/s
- 2.4 GHz
- Yes
- USB 2.0 ports quantity
- 1
- Antenna type
- External
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EUB9603 EXT
- Part number
- EUB9603EXT
- EAN / UPC
- 655216004597, 6552160045970
- Also known as
- EnGenius EUB9603 EXT 54 Mbit/s
Specifications
18 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4 GHz |
| Modulation | 16-QAM, 64-QAM |
| Receiver sensitivity | 2.412~2.472G(IEEE802.11b) (1Rx) <= -90 dBm@1Mbps 2.412~2.472G(IEEE802.11g) (1Rx) <= -87dBm@6Mbps 2.412~2.472G(IEEE802.11N) (1Rx) <= -85dBm@MCS0 (11N 20M) <= -85dBm@MCS0 (11N 40M) |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna features | Dipole antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 2 dBi |
| Antenna connector type | SMA |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15, ETSI 300/328/CE |
Other features
| Specification | Value |
|---|---|
| Compatibility | Windows 7/Vista/XP/2000, Mac OS support |
| Power LED | Yes |
| Wireless technology | 11b/11g/11n |
| Connectivity LEDs | Yes |
