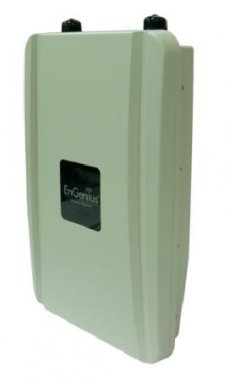

EnGenius EOR7550 300 Mbit/s

EnGenius EOR7550 300 Mbit/s

Model EOR7550Part no. EOR-7550EAN 655216003873

23 specifications

Memory32 MB
Speed300 Mbit/s
Weight600 g
2.4 GHzYes
Security algorithmsEAP-TLS, EAP-TTLS, WPA, WPA2
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Memory: 32 MB
Speed: 300 Mbit/s
Weight: 600 g
2.4 GHz: Yes
Security algorithms: EAP-TLS, EAP-TTLS, WPA, WPA2
Ethernet LAN (RJ-45) ports: 1

Brand: EnGenius
Category: Wireless Access Point
Model: EOR7550
Part numbers: EOR-7550, EOR7550
EAN / UPC: 655216003873, 6552160038736
Also known as: EnGenius EOR7550 300 Mbit/s

Specifications

23 specifications in 9 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 GHz
Quality of Service (QoS) support	Yes
Receiver sensitivity	IEEE 802.11a -92dBm @ 6Mbps -73dBm @ 54Mbps IEEE 802.11g -94dBm @ 6Mbps -74dBm @ 54Mbps IEEE 802.11b -97dBm @ 1Mbps -92dBm @ 11Mbps IEEE 802.11n -91dBm @ MCS8 -74dBm @ MCS15 Available Transmit Power (Average): Radio1 (WLAN1): IEEE 802.11a 28dBm @ 6~24Mbps 26dBm @ 36Mbps 24dBm @ 48Mbps 22dBm @ 54Mbps

Security

Specification	Value
Security algorithms	EAP-TLS, EAP-TTLS, WPA, WPA2
MAC address filtering	Yes

Protocols

Specification	Value
DHCP server	Yes
DHCP client	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Design

Specification	Value
LED indicators	Yes

Antenna

Specification	Value
Antenna gain level (max)	6 dBi
Antenna connector type	N-type
Number of connectors	2

Performance

Specification	Value
Flash memory	8 MB
Internal memory	32 MB

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	175 x 260 x 65 mm
Weight	600 g

Other features

Specification	Value
Power LED	Yes
Connectivity LEDs	Yes
