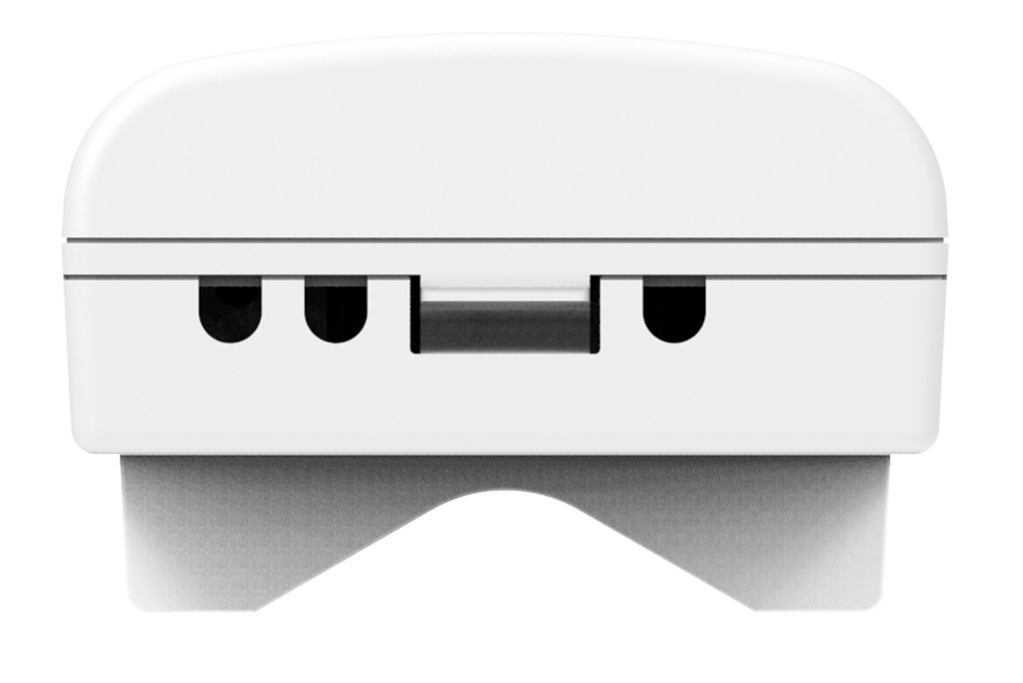

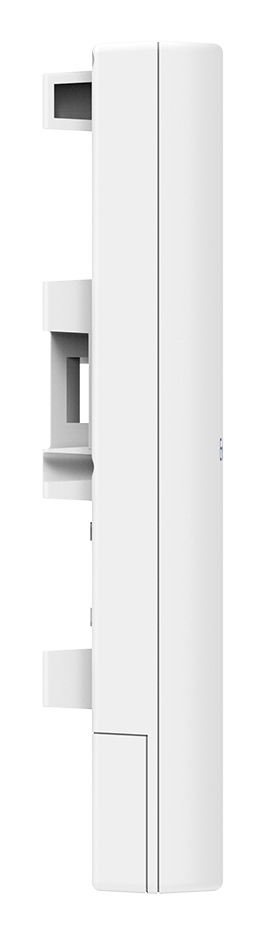

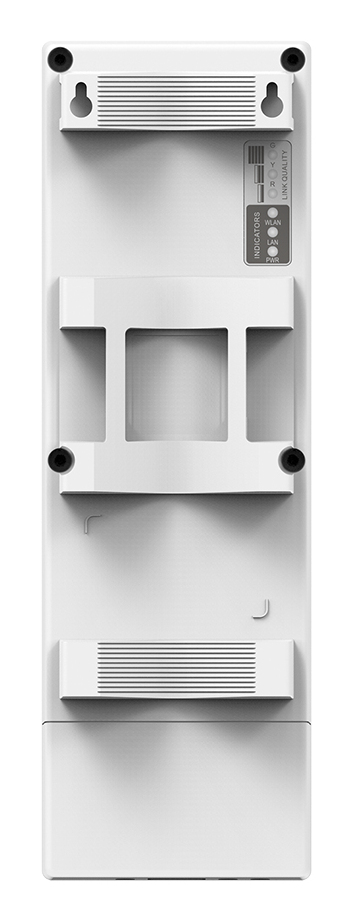

EOC600 wireless access point White Power over Ethernet (PoE)
Model EOC600EAN 655216011519
55 specifications
- Memory512 MB
- Weight610 g
- ColourWhite
- 2.4 GHzNo
- Security algorithms256-bit AES
- DHCP serverYes
Overview
- Memory
- 512 MB
- Weight
- 610 g
- Colour
- White
- 2.4 GHz
- No
- Security algorithms
- 256-bit AES
- DHCP server
- Yes
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EOC600
- Part number
- EOC600
- EAN / UPC
- 655216011519, 4711488350339
- Also known as
- EnGenius EOC600 wireless access point White Power over Ethernet (PoE)
Specifications
55 specifications in 15 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | No |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Frequency band | 5.15 - 5.85 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Channel bandwidth | 160 MHz |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Maximum Tx power (2.4 GHz) | 9 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | 256-bit AES |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| IGMP snooping | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 13 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IP55 |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 16 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 260 mm |
| Depth | 84 mm |
| Height | 55 mm |
| Weight | 610 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 307 mm |
| Package depth | 126 mm |
| Package height | 122 mm |
| Package weight | 1.25 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 270 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 9.5 kg |
| Products per master (outer) case | 8 pc(s) |
