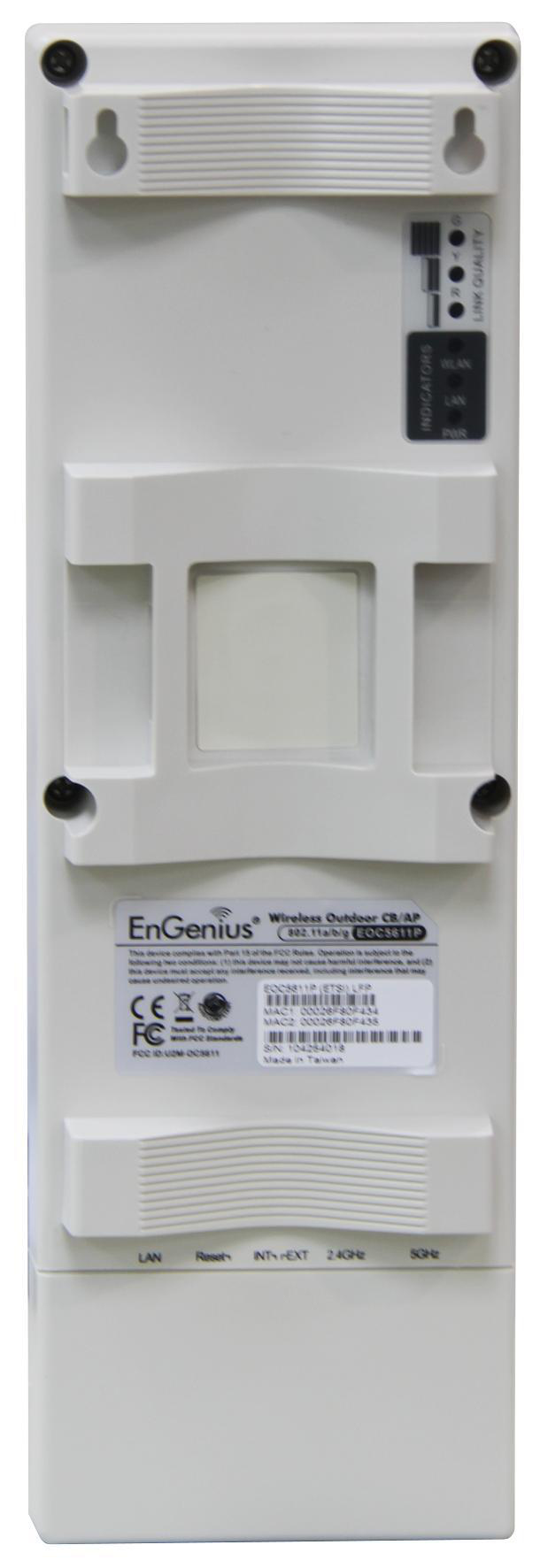

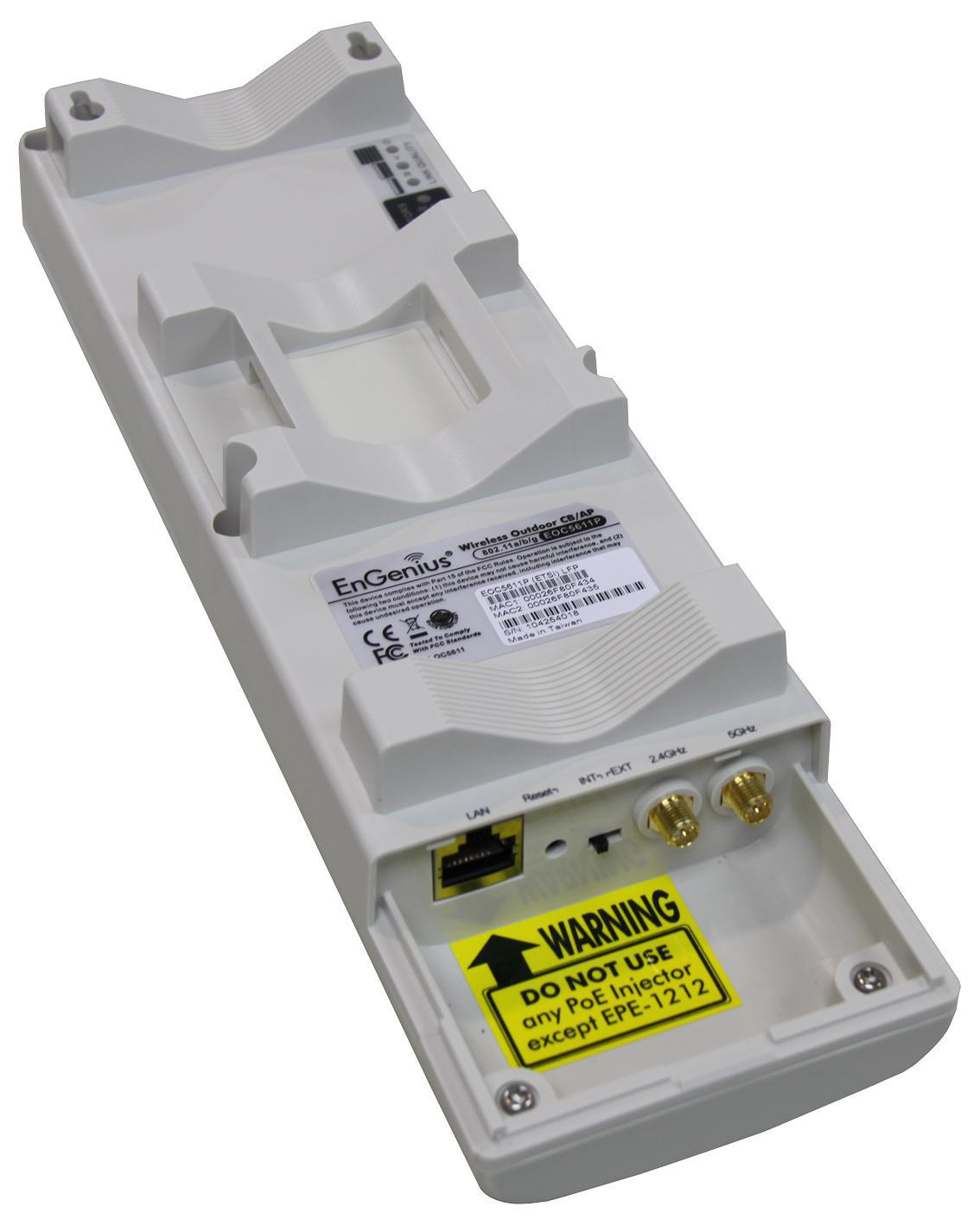

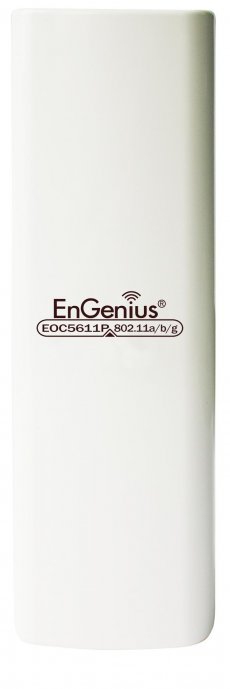

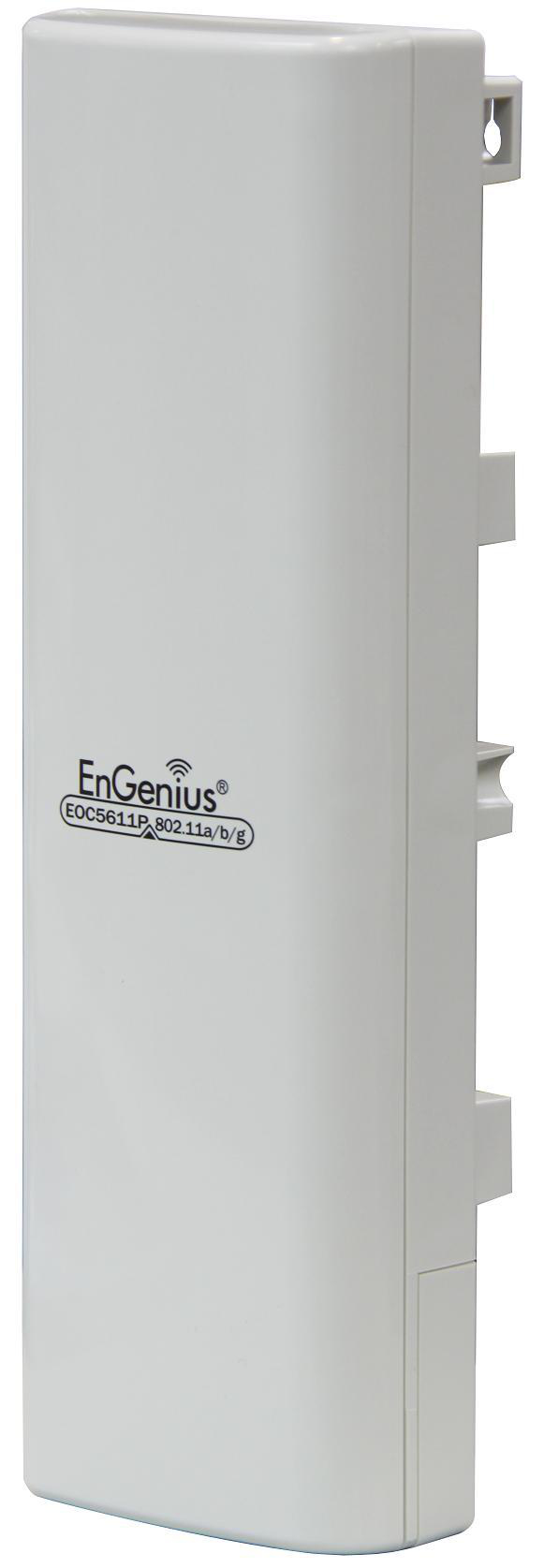

EnGenius EOC5611P 54 Mbit/s Power over Ethernet (PoE)
Model EOC5611PPart no. EOC-5611PEAN 655216004757
35 specifications
- ProcessorQualcomm Atheros AR2313 + AR5112
- Memory32 MB
- Speed54 Mbit/s
- Weight300 g
- MAC address filteringYes
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- Qualcomm Atheros AR2313 + AR5112
- Memory
- 32 MB
- Speed
- 54 Mbit/s
- Weight
- 300 g
- MAC address filtering
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EOC5611P
- Part numbers
- EOC-5611P, EOC5611P
- EAN / UPC
- 655216004757, 6552160047578
- Also known as
- EnGenius EOC5611P 54 Mbit/s Power over Ethernet (PoE)
Specifications
35 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 5.1 - 5.8 GHz |
| Modulation | 16-QAM, 64-QAM, CCK, DQPSK, QPSK |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSID, WEP, WPA, WPA2 |
| MAC address filtering | Yes |
| VPN support | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP v1, v2c |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 24V/ 1A DC |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Antenna connector type | RP-SMA |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR2313 + AR5112 |
| Flash memory | 8 MB |
| Internal memory | 32 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15C/15B/15E, EN301 893, EN 300 328, EN 301 489-1/-17, EN60950, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 84 x 260 x 55 mm |
| Weight | 300 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbit/s |
| Outdoor range | 1 - 30km |
| Compliance industry standards | 802.3, 802.3u, 802.11a, 802.11b/g |
| Networking features | Fast Ethernet |
| Power LED | Yes |
| Wireless technology | 802.11a/b/g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 80 °C |
