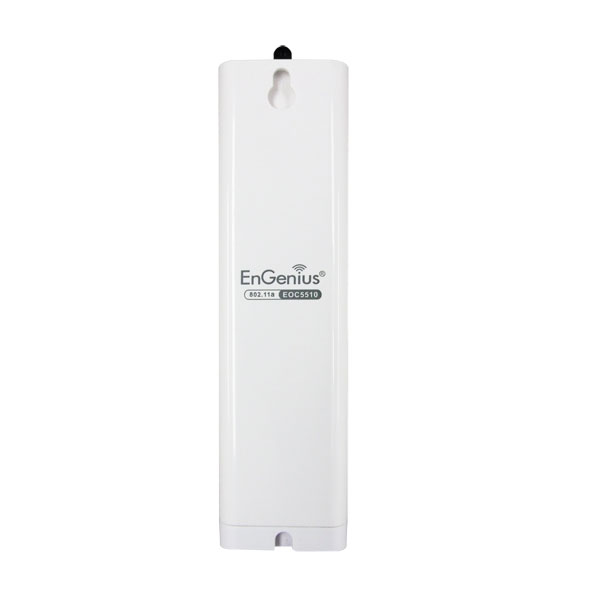

EnGenius EOC5510 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model EOC5510EAN 6552160042696
36 specifications
- ProcessorQualcomm Atheros AR2313 + AR5112
- Memory32 MB
- Speed54 Mbit/s
- Weight270 g
- 5 GHzYes
- WAN connectionEthernet (RJ-45)
Overview
- Processor
- Qualcomm Atheros AR2313 + AR5112
- Memory
- 32 MB
- Speed
- 54 Mbit/s
- Weight
- 270 g
- 5 GHz
- Yes
- WAN connection
- Ethernet (RJ-45)
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EOC5510
- Part number
- EOC5510
- EAN / UPC
- 6552160042696
- Also known as
- EnGenius EOC5510 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
36 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 5 GHz |
| Networking standards | IEEE 802.11a |
| Channels quantity | 11 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, QPSK |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-AES, WPA-TKIP, 802.1x RADIUS |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP, HTTP |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |

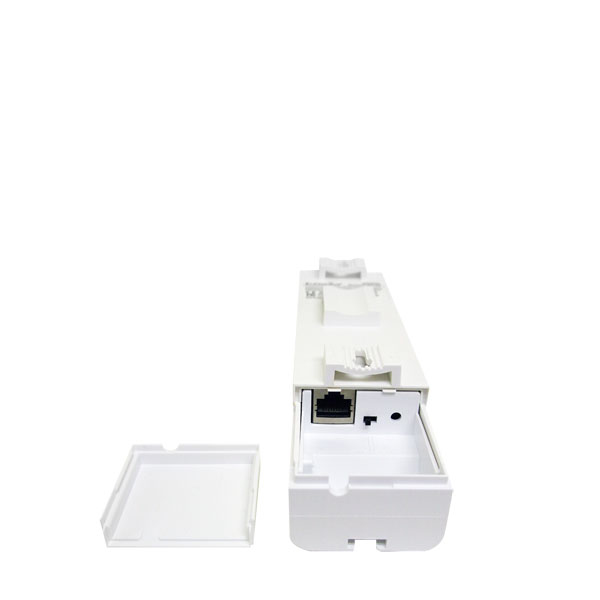

Ports & interfaces
| Specification | Value |
|---|---|
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 24V / 0.6A DC |
Design
| Specification | Value |
|---|---|

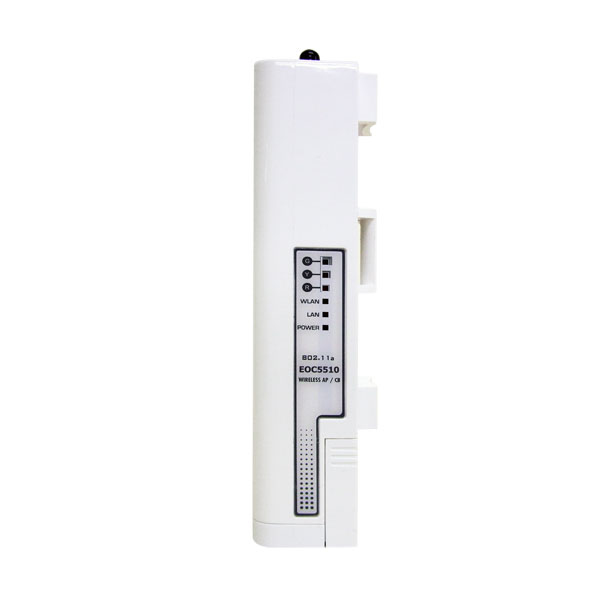

| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Antenna connector type | SMA |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR2313 + AR5112 |
| Flash memory | 8 MB |
| Internal memory | 32 MB |
| Internal memory type | DDR |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC 15E, EN301 893, EN 301 489-1/-17, EN60950, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 84 x 260 x 55 mm |
| Weight | 270 g |
Other features
| Specification | Value |
|---|---|
| Maximum operating distance | 30000 m |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 5 - 95% |
