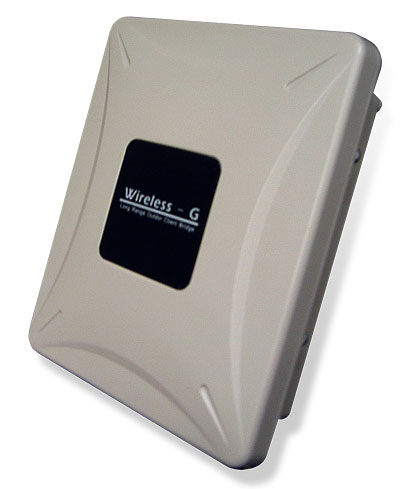

EnGenius EOC-3220 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model EOC-3220
34 specifications
- Speed54 Mbit/s
- ConnectivityRJ-45, RS-232
- Weight1.2 kg
- 2.4 GHzYes
- Antenna connector typeSMA
- Dimensions (WxDxH)135.2 x 163.8 x 47 mm
Overview
- Speed
- 54 Mbit/s
- Connectivity
- RJ-45, RS-232
- Weight
- 1.2 kg
- 2.4 GHz
- Yes
- Antenna connector type
- SMA
- Dimensions (WxDxH)
- 135.2 x 163.8 x 47 mm
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EOC-3220
- Part number
- EOC-3220
- Also known as
- EnGenius EOC-3220 wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
34 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Cabling technology | 10/100Base-T(X) |
| Channels quantity | 14 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, OFDM, QPSK |
| Receiver sensitivity | 802.11g: -88dBm-6Mbps -70dBm-54Mbps 802.11b: -92 dBm-1Mbps -85 dBm-11Mbps |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, EAP-TLS, EAP-TTLS, MD5, SSID, WPA, WPA2 |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP V1, V2c |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | RJ-45, RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 48 V |
| Input current | 0.375 A |
| Power supply type | VDC |
Antenna
| Specification | Value |
|---|---|
| Antenna connector type | SMA |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 135.2 x 163.8 x 47 mm |
| Weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps |
| Compliance industry standards | IEEE802.11b/g, IEEE802.1x, IEEE802.3, IEEE802.3u |
| Transmit power range | 20 - 26 dBmW |
| Wireless technology | IEEE802.11b/g |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -20 - 80 °C |
