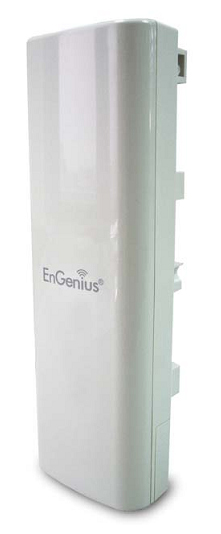

EOC-2610 Long Range Wireless Access Point /Client Bridge
Model EOC-2610 Long Range Wireless Access Point /Client BridgePart no. 710201GEOC2610
23 specifications
- Speed108 Mbit/s
- Weight300 g
- 2.4 GHzYes
- Security algorithmsWEP, WPA, WPA2
- Antenna gain level (max)10 dBi
- Dimensions (WxDxH)84 x 260 x 55 mm
Overview
- Speed
- 108 Mbit/s
- Weight
- 300 g
- 2.4 GHz
- Yes
- Security algorithms
- WEP, WPA, WPA2
- Antenna gain level (max)
- 10 dBi
- Dimensions (WxDxH)
- 84 x 260 x 55 mm
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- EOC-2610 Long Range Wireless Access Point /Client Bridge
- Part number
- 710201GEOC2610
- Also known as
- EnGenius EOC-2610 Long Range Wireless Access Point /Client Bridge 108 Mbit/s Power over Ethernet (PoE)
Specifications
23 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Frequency band | 2.4 GHz |
| Modulation | 16-QAM, DQPSK, QPSK |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA2 |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management protocols | SNMP |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power requirements | 24V / 0.8A DC |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 10 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15C/15B, EN 300 328/EN 301 489-1/-17 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 84 x 260 x 55 mm |
| Weight | 300 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 Mbit/s |
| Compliance industry standards | IEEE 802.11b/g |
| Maximum operating distance | 30000 m |
| Connectivity LEDs | Yes |
| Non-operating relative humidity (non-condensing) | 0 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -30 - 80 °C |
