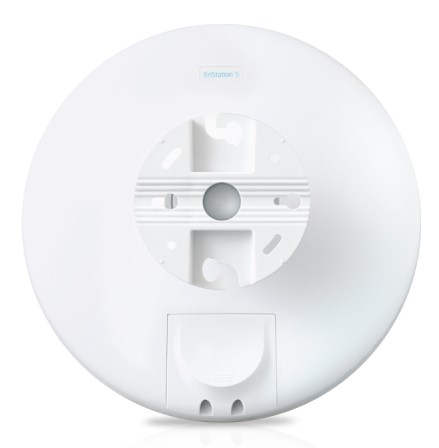

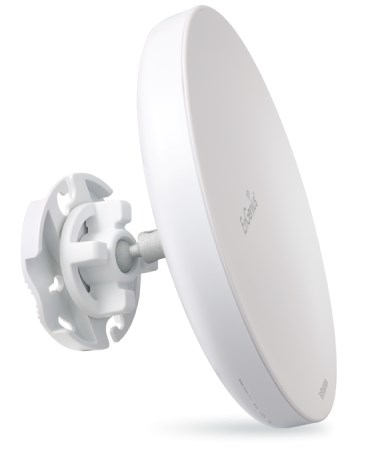

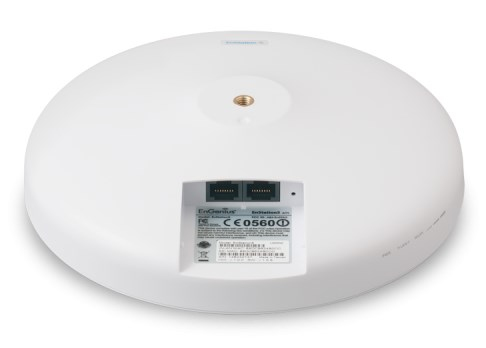

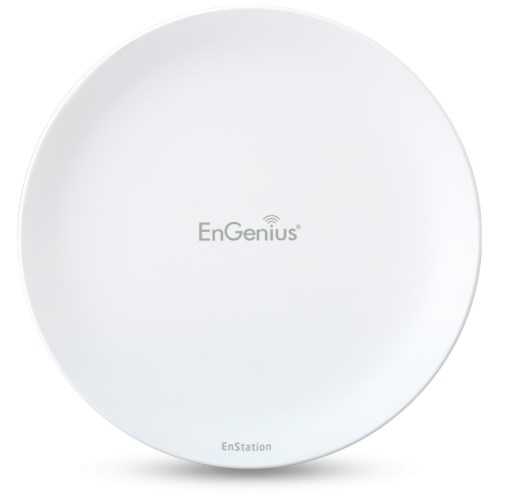

EnGenius EnStation5 300 Mbit/s White Power over Ethernet (PoE)

EnGenius EnStation5 300 Mbit/s White Power over Ethernet (PoE)

Model EnStation5Part no. ENSTATION5EAN 5060402400551

57 specifications
  • Memory64 MB
  • Speed300 Mbit/s
  • Weight460 g
  • ColourWhite
  • 2.4 GHzNo
  • MAC address filteringYes
See all specifications

Overview

Memory
64 MB
Speed
300 Mbit/s
Weight
460 g
Colour
White
2.4 GHz
No
MAC address filtering
Yes
Brand
EnGenius
Model
EnStation5
Part number
ENSTATION5
EAN / UPC
5060402400551, 655216007376, 4713361930799, 6552160073768 +1 more
Also known as
EnGenius EnStation5 300 Mbit/s White Power over Ethernet (PoE)

Specifications

57 specifications in 15 groups

Features

2.4 GHzNo
5 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5.18 - 5.825 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n, IEEE 802.1x
Channel bandwidth40 MHz
Automatic channel selectionYes
Modulation16-QAM, 64-QAM, BPSK, QPSK
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Client Bridge,Client Router,WDS
Quality of Service (QoS) supportYes
Transmitting power26 dBmW

Security

Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA2
MAC address filteringYes
Number of SSID supported4
Auto Wireless Distribution System (WDS)Yes

Protocols

DHCP serverYes
Management protocolsSNMP V1/v2c/v3, MIB I/II

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0

Power

Power over Ethernet (PoE)Yes
AC input voltage24 V
Input current0.6 A
Power consumption (typical)7 W

Design

PlacementWall
Product colourWhite
International Protection (IP) codeIP55
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna direction typeDirectional
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)19 dBi

Performance

Flash memory16 MB
Internal memory64 MB

Certificates

CertificationFCC, CE

Weight & dimensions

Width190 mm
Depth190 mm
Height38 mm
Weight460 g

Packaging data

Package width247 mm
Package depth321 mm
Package height88 mm
Package weight1.04 kg

Packaging content

Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-30 - 80 °C
Storage relative humidity (H-H)0 - 90%

Logistics data

Harmonized System (HS) code85176990
