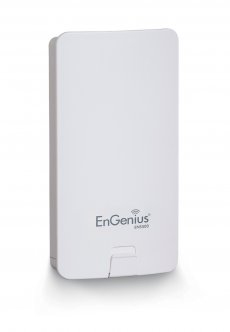

EnGenius ENS500 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

EnGenius ENS500 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model ENS500EAN 8497817695772

52 specifications
  • Memory64 MB
  • Speed300 Mbit/s
  • ConnectivityLAN, WLAN
  • Weight300 g
  • ColourWhite
  • 2.4 GHzNo
See all specifications

Overview

Memory
64 MB
Speed
300 Mbit/s
Connectivity
LAN, WLAN
Weight
300 g
Colour
White
2.4 GHz
No
Brand
EnGenius
Model
ENS500
Part number
ENS500
EAN / UPC
8497817695772, 655216006249, 729198053536, 4713361930720 +5 more
Also known as
EnGenius ENS500 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

52 specifications in 13 groups

Features

2.4 GHzNo
5 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11n, IEEE 802.1x
Automatic channel selectionYes
Modulation16-QAM, 64-QAM, BPSK, OFDM, QPSK
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Client Bridge,Client Router,WDS
Quality of Service (QoS) supportYes
Transmitting power15 dBmW

Security

Security algorithms802.1x RADIUS, WDS, WPA, WPA2
MAC address filteringYes
Number of SSID supported4
Auto Wireless Distribution System (WDS)Yes
Remote Authentication Dial-In User Service (RADIUS)Yes

Protocols

Management protocolsSNMP v1/v2c/v3, MIB I/II

Ports & interfaces

InterfaceLAN, WLAN
Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0

Power

Power over Ethernet (PoE)Yes
AC input voltage24 V
Power requirements24V, 0.6A

Design

PlacementWall
Product colourWhite
International Protection (IP) codeIP65
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna direction typeDirectional
Antenna featuresIntegrated antenna
Antenna gain level (max)10 dBi

Performance

Flash memory16 MB
Internal memory64 MB

Weight & dimensions

Width99 mm
Depth185.4 mm
Height28.9 mm
Dimensions (WxDxH)99.06 x 185.42 x 28.9 mm
Weight300 g

Packaging data

Package width71.1 mm
Package depth309.9 mm
Package height233.7 mm
Package weight707.6 g

Packaging content

AC adapter includedYes

Other features

Supported data transfer rates6, 9, 12, 18, 24, 36, 48, 54, 300Mbps
Package dimensions (WxDxH)71.12 x 309.8 x 233.68 mm

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-30 - 80 °C
