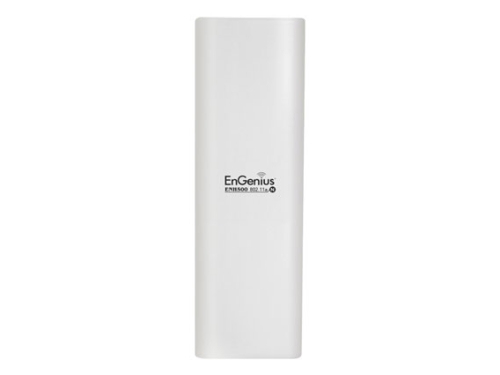

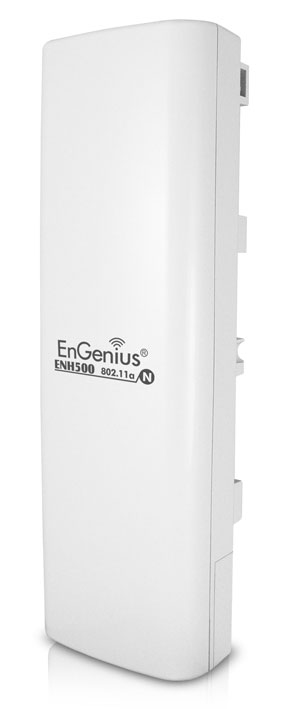

EnGenius ENH500 300 Mbit/s White Power over Ethernet (PoE)

EnGenius ENH500 300 Mbit/s White Power over Ethernet (PoE)

Model ENH500Part no. N-ENH500 KITEAN 6552160058154

53 specifications
  • ProcessorQualcomm Atheros AR7240
  • Memory32 MB
  • Speed300 Mbit/s
  • Weight380 g
  • ColourWhite
  • 2.4 GHzNo
See all specifications

Overview

Processor
Qualcomm Atheros AR7240
Memory
32 MB
Speed
300 Mbit/s
Weight
380 g
Colour
White
2.4 GHz
No
Brand
EnGenius
Model
ENH500
Part numbers
N-ENH500 KIT, 1102A1297301
EAN / UPC
6552160058154, 115970741690, 132018004104, 132018351338 +23 more
Also known as
EnGenius ENH500 300 Mbit/s White Power over Ethernet (PoE)

Specifications

53 specifications in 14 groups

Features

2.4 GHzNo
5 GHzYes
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band5 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channel bandwidth40 MHz
Automatic channel selectionYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Client Bridge,Client Router,WDS
Quality of Service (QoS) supportYes

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, 802.1x RADIUS
MAC address filteringYes
Number of SSID supported4
Auto Wireless Distribution System (WDS)Yes

Protocols

Management protocolsSNMP v1/v2c, MIB I/II

Management features

Web-based managementYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)

Power

Power over Ethernet (PoE)Yes
AC input voltage24 V

Design

PlacementWall
Product colourWhite
International Protection (IP) codeIP65
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antenna gain level (max)13 dBi

Performance

Built-in processorYes
Processor modelQualcomm Atheros AR7240
Flash memory8 MB
Internal memory32 MB
Internal memory typeDDR

Certificates

CertificationFCC, CE, IC

Weight & dimensions

Width84 mm
Depth260 mm
Height55 mm
Weight380 g

Packaging content

AC adapter includedYes

Other features

Compliance industry standardsIP65
Maximum operating distance2000 m
Power LEDYes

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)5 - 90%
