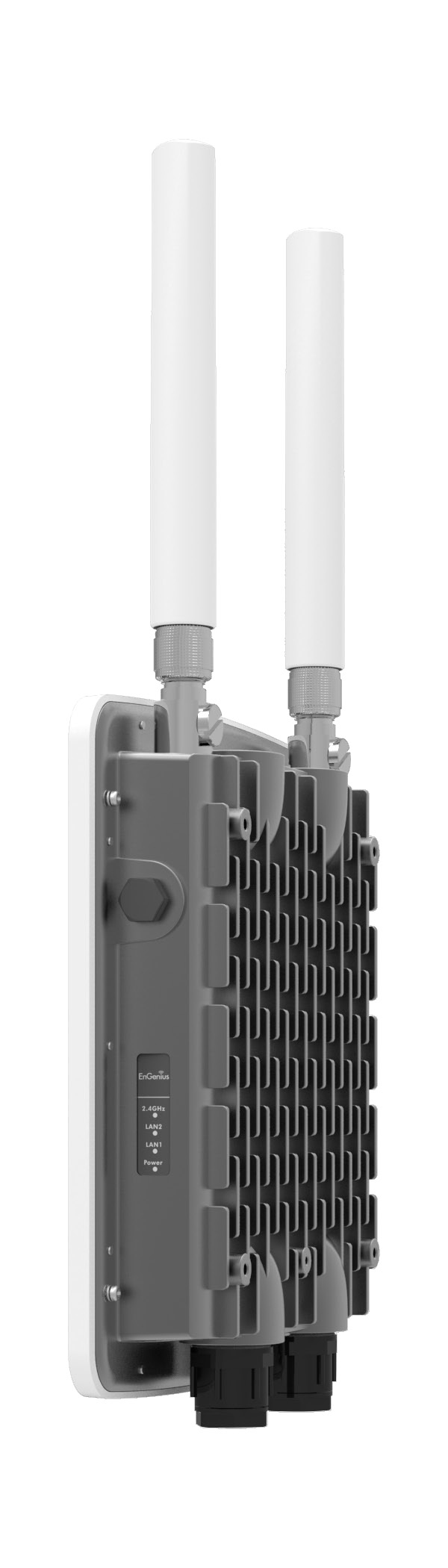

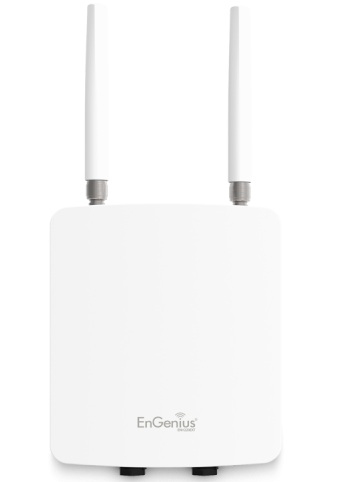

EnGenius ENH220EXT wireless access point 300 Mbit/s White Power over Ethernet (PoE)

EnGenius ENH220EXT wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Model ENH220EXTEAN 655216007444

52 specifications
  • Memory128 MB
  • Speed300 Mbit/s
  • Weight1.67 kg
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports2
See all specifications

Overview

Memory
128 MB
Speed
300 Mbit/s
Weight
1.67 kg
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
2
Brand
EnGenius
Model
ENH220EXT
Part number
ENH220EXT
EAN / UPC
655216007444, 805100142748, 6552160074444
Also known as
EnGenius ENH220EXT wireless access point 300 Mbit/s White Power over Ethernet (PoE)

Specifications

52 specifications in 13 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.484 GHz
Networking standardsIEEE 802.11d, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Channels quantity11 channels
Channel bandwidth40 MHz
Automatic channel selectionYes
Spread spectrum methodDSSS
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK
VLAN supportYes
Operating modesAccess Point (AP),Client Bridge,WDS
Quality of Service (QoS) supportYes
Transmitting power28 dBmW
Receiver sensitivity802.11n 2.4 GHz -95dBm @ MCS0/MCS8 -92dBm @ MCS1/MCS9 -87dBm @ MCS2/MCS10 -85dBm @ MCS3/MCS11 -80dBm @ MCS4/MCS12 -79dBm @ MCS5/MCS13 -74dBm @ MCS5/MCS13 -73dBm @ MCS7/MCS15 802.11g 2.4 GHz -96dBm @ 6Mbps -93dBm @ 9Mbps -89dBm @ 12Mbps -85dBm @ 18Mbps -81dBm @ 24Mbps -79dBm @ 36Mbps -76dBm @ 48Mbps

Security

Security algorithms128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, AES, SSID, TKIP, WPA, WPA-EAP, WPA-PSK, WPA2
MAC address filteringYes
Number of SSID supported8
Auto Wireless Distribution System (WDS)Yes

Protocols

DHCP serverYes
DHCP clientYes
Management protocolsSNMP V1/V2c, MIB I/II

Management features

Wake-on-LAN readyYes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports2
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
Output voltage48 V
Output current0.375 A
Power consumption (typical)12 W

Design

PlacementWall
Product colourWhite
International Protection (IP) codeIP67
Reset buttonYes
InternalNo

Antenna

Antennas quantity2
Antenna gain level (max)5 dBi

Performance

Flash memory16 MB
Internal memory128 MB

Certificates

CertificationFCC 15B, FCC 15C, IC, CSA

Weight & dimensions

Width285 mm
Depth218 mm
Height55.5 mm
Weight1.67 kg

Packaging content

AC adapter includedYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-30 - 80 °C
