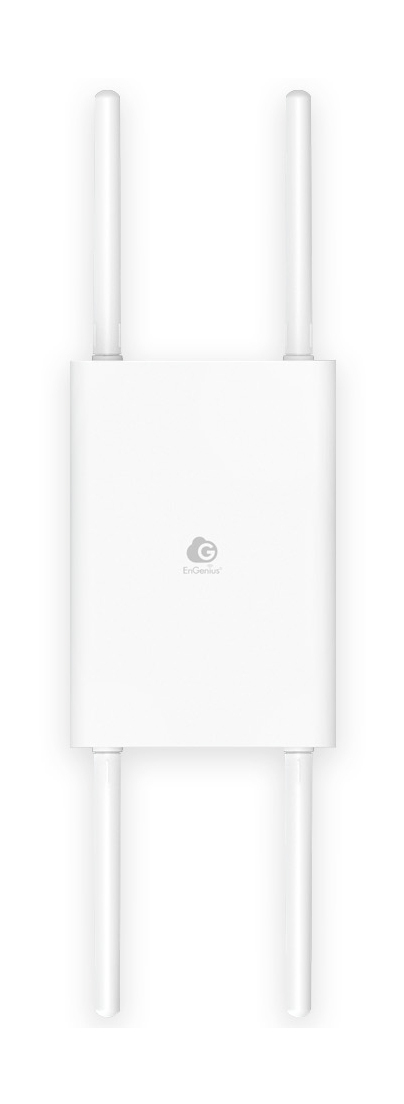

Cloud Managed Wi-Fi 7
2x2 Outdoor Access Point
Model ECW560
36 specifications
- Speed3600 Mbit/s
- Weight1.24 kg
- ColourWhite
- 2.4 GHzYes
- Service Set Identifier (SSID) featuresMultiple SSIDs
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 3600 Mbit/s
- Weight
- 1.24 kg
- Colour
- White
- 2.4 GHz
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW560
- Part number
- ECW560
- Also known as
- EnGenius Cloud Managed Wi-Fi 7 2x2 Outdoor Access Point
Specifications
36 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 700 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2900 Mbit/s |
| Ethernet LAN data rates | 2500 Mbit/s |
| Networking standards | IEEE 802.11be, IEEE 802.11a, IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3at |
| Number of users | 512 user(s) |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 22.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.24 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
