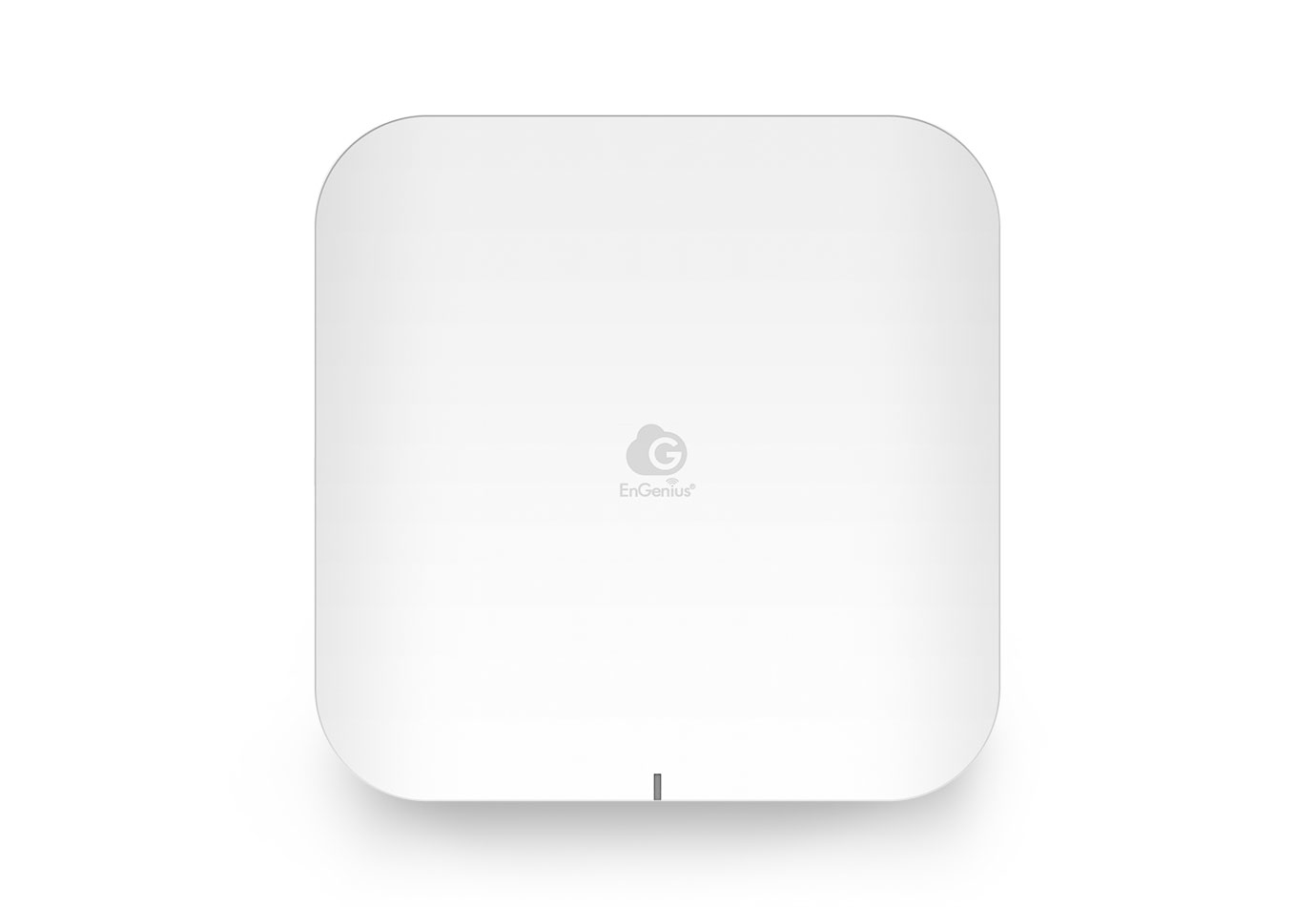

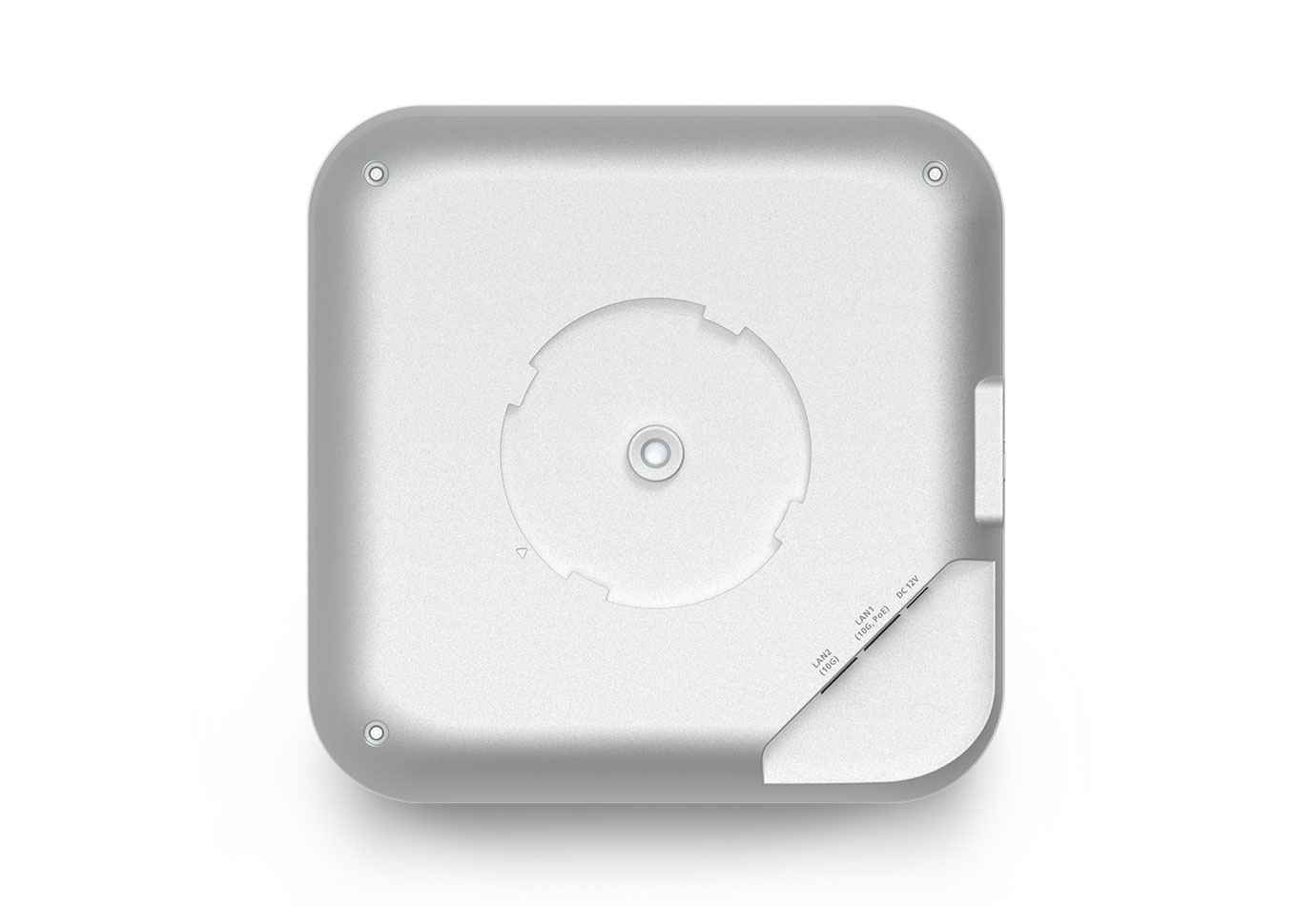

Cloud7 4x4x4
Model ECW536EAN 655216011311
49 specifications
- Speed11600 Mbit/s
- Weight1.27 kg
- ColourWhite
- 2.4 GHzYes
- Service Set Identifier (SSID) featuresMultiple SSIDs
- Ethernet LAN (RJ-45) ports2
Overview
- Speed
- 11600 Mbit/s
- Weight
- 1.27 kg
- Colour
- White
- 2.4 GHz
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Ethernet LAN (RJ-45) ports
- 2
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW536
- Part number
- ECW536
- EAN / UPC
- 655216011311, 4711488350117, 7071320165833
- Also known as
- EnGenius Cloud7 4x4x4
Specifications
49 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 11600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5800 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11600 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 2.4 - 7.125 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r |
| Number of users | 512 user(s) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |

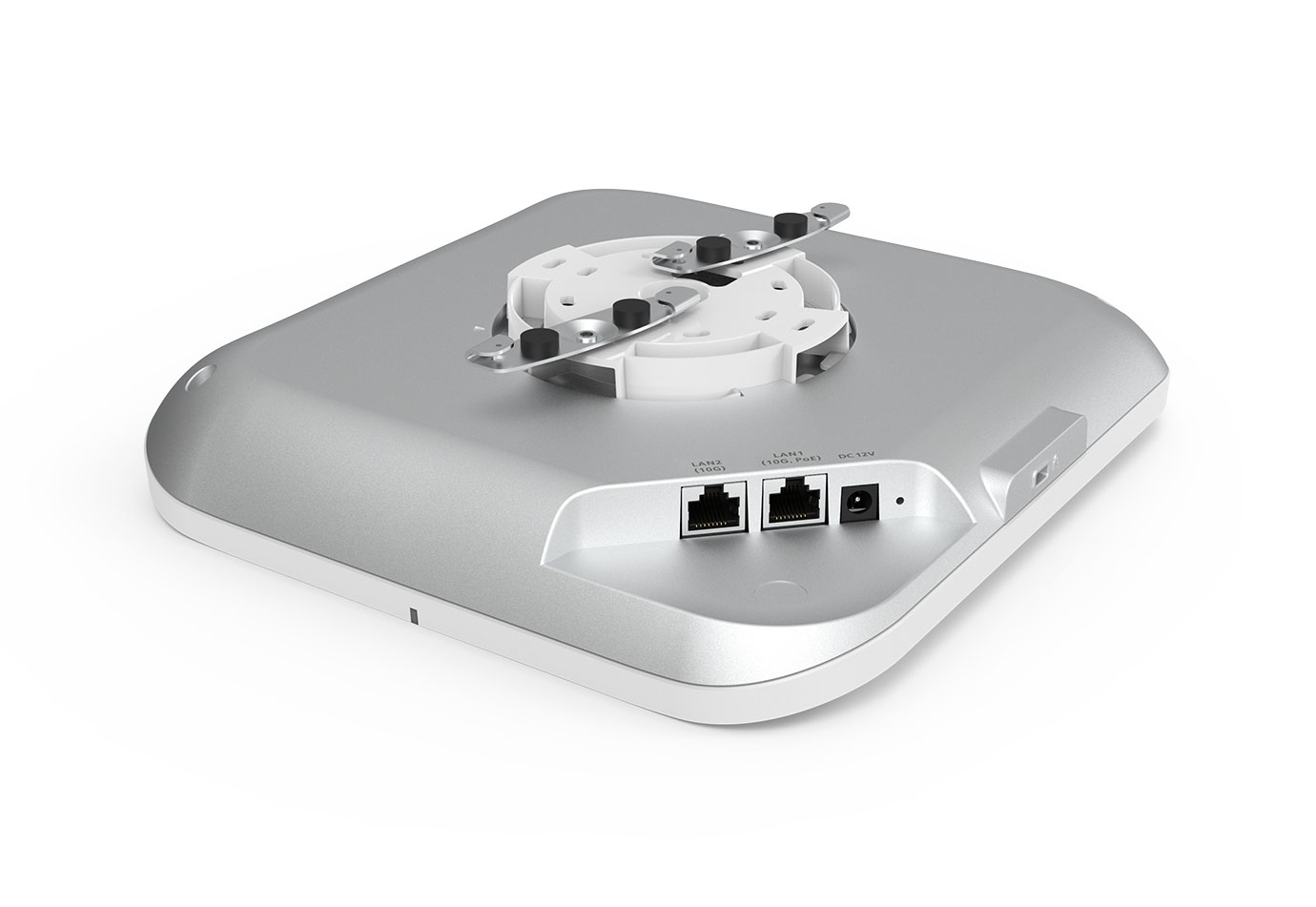

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Power consumption (max) | 38 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Table, Wall |
| Product colour | White |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 230 mm |
| Height | 39.5 mm |
| Weight | 1.27 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 286 mm |
| Package depth | 277 mm |
| Package height | 72 mm |
| Package weight | 1.64 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 570 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 16.2 kg |
| Products per master (outer) case | 10 pc(s) |
