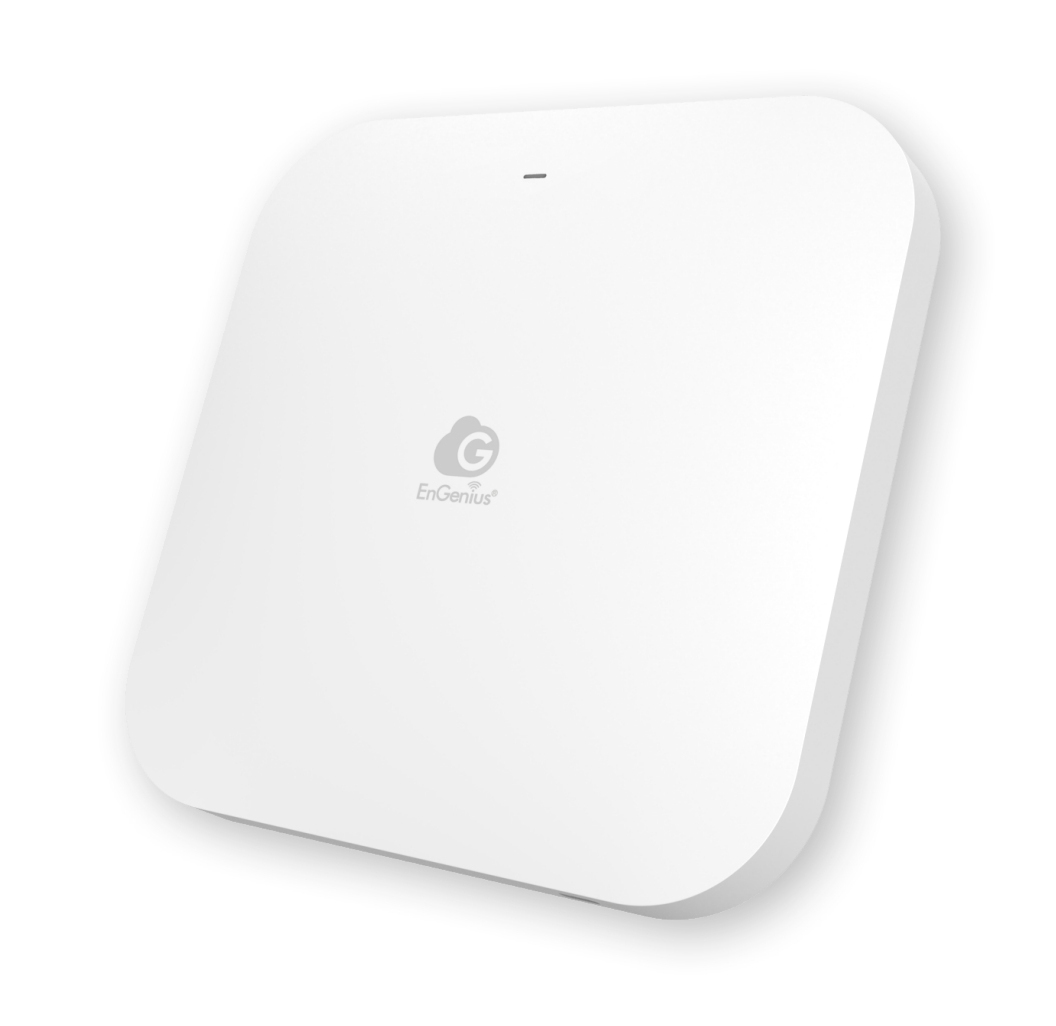

Cloud Managed Wi-Fi 7
2x2 Indoor Access Point
Model ECW510EAN 655216011823
56 specifications
- Weight660 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementWall
- Antenna typeInternal
Overview
- Weight
- 660 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Wall
- Antenna type
- Internal
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW510
- Part number
- ECW510
- EAN / UPC
- 655216011823, 4711488350674
- Also known as
- EnGenius Cloud Managed Wi-Fi 7 2x2 Indoor Access Point
Specifications
56 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 700 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Mesh networking |
| Fast roaming | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 21 dBmW |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| Access Control List (ACL) | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (max) | 15.5 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 32 mm |
| Height | 160 mm |
| Weight | 660 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 207 mm |
| Package depth | 207 mm |
| Package height | 87 mm |
| Package weight | 660 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 9.87 kg |
| Products per master (outer) case | 10 pc(s) |
