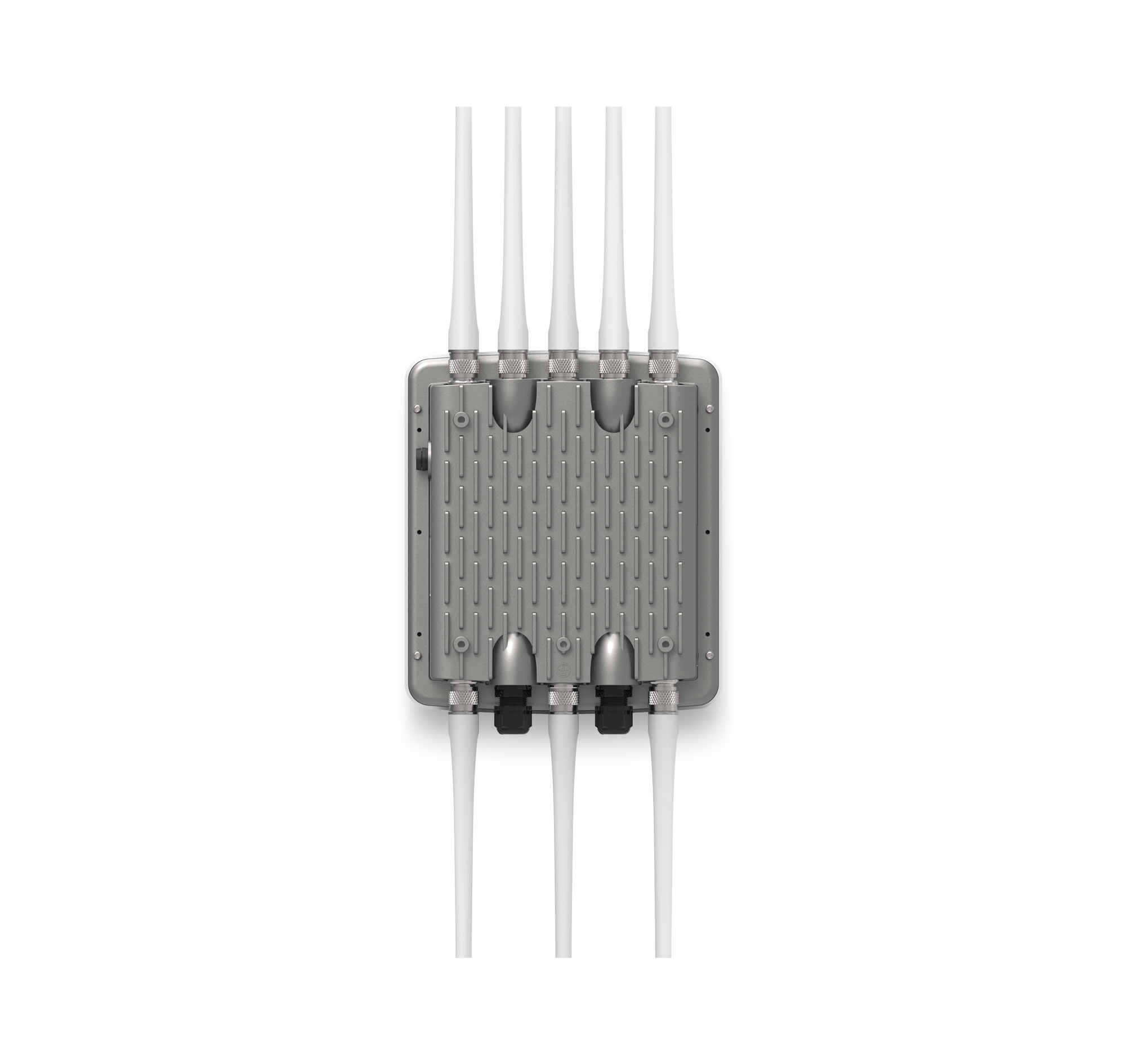

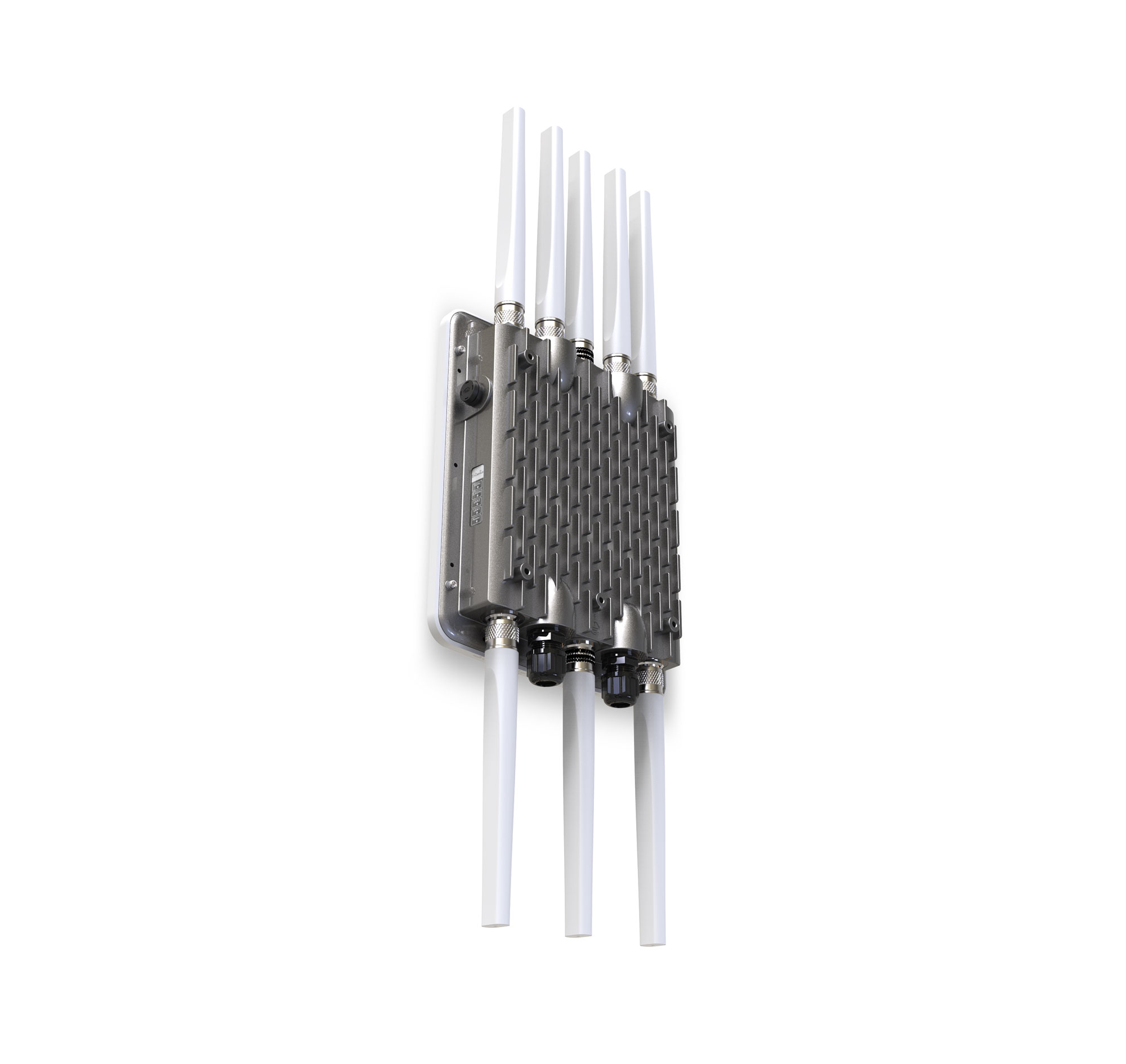

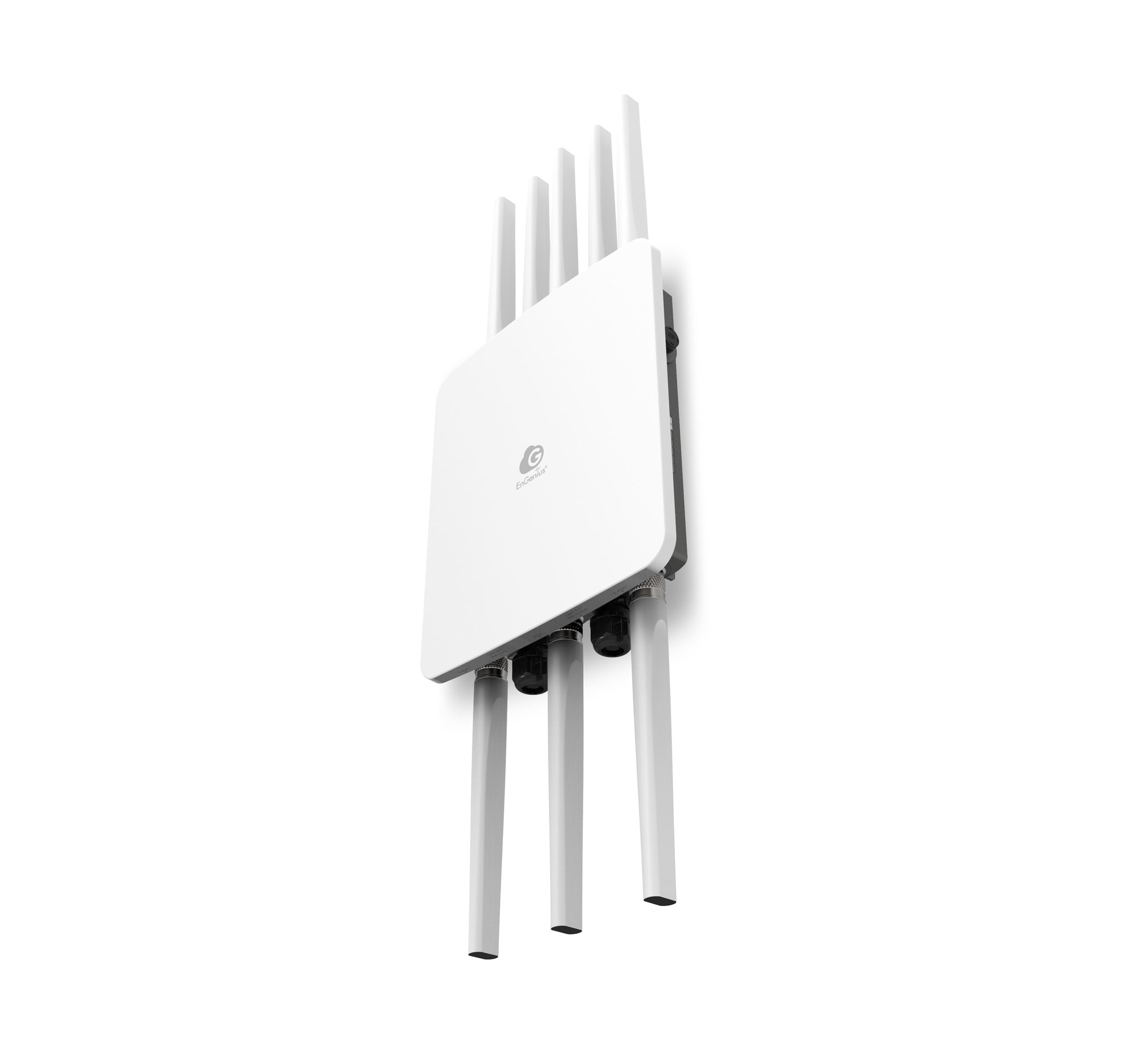

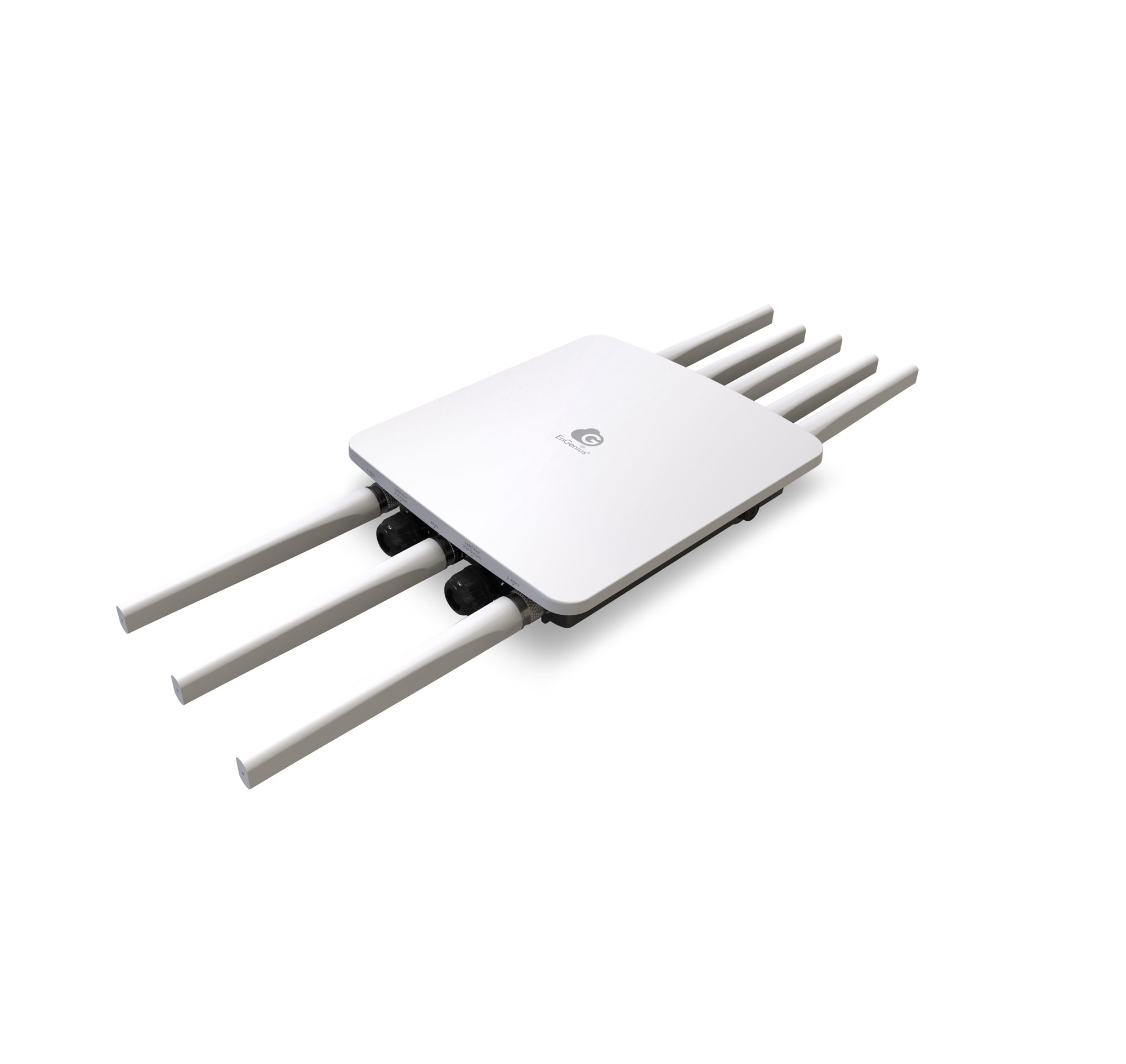

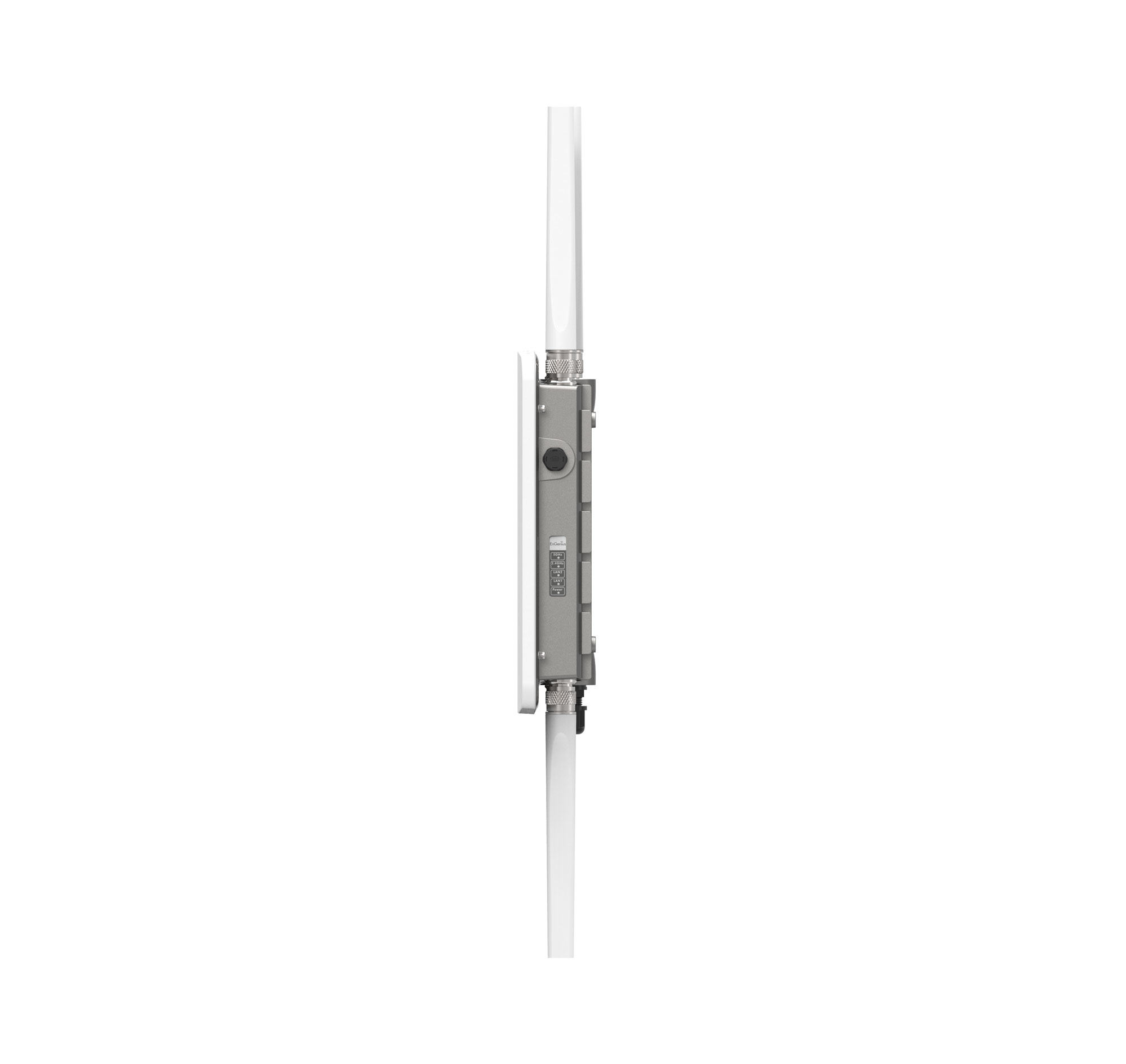

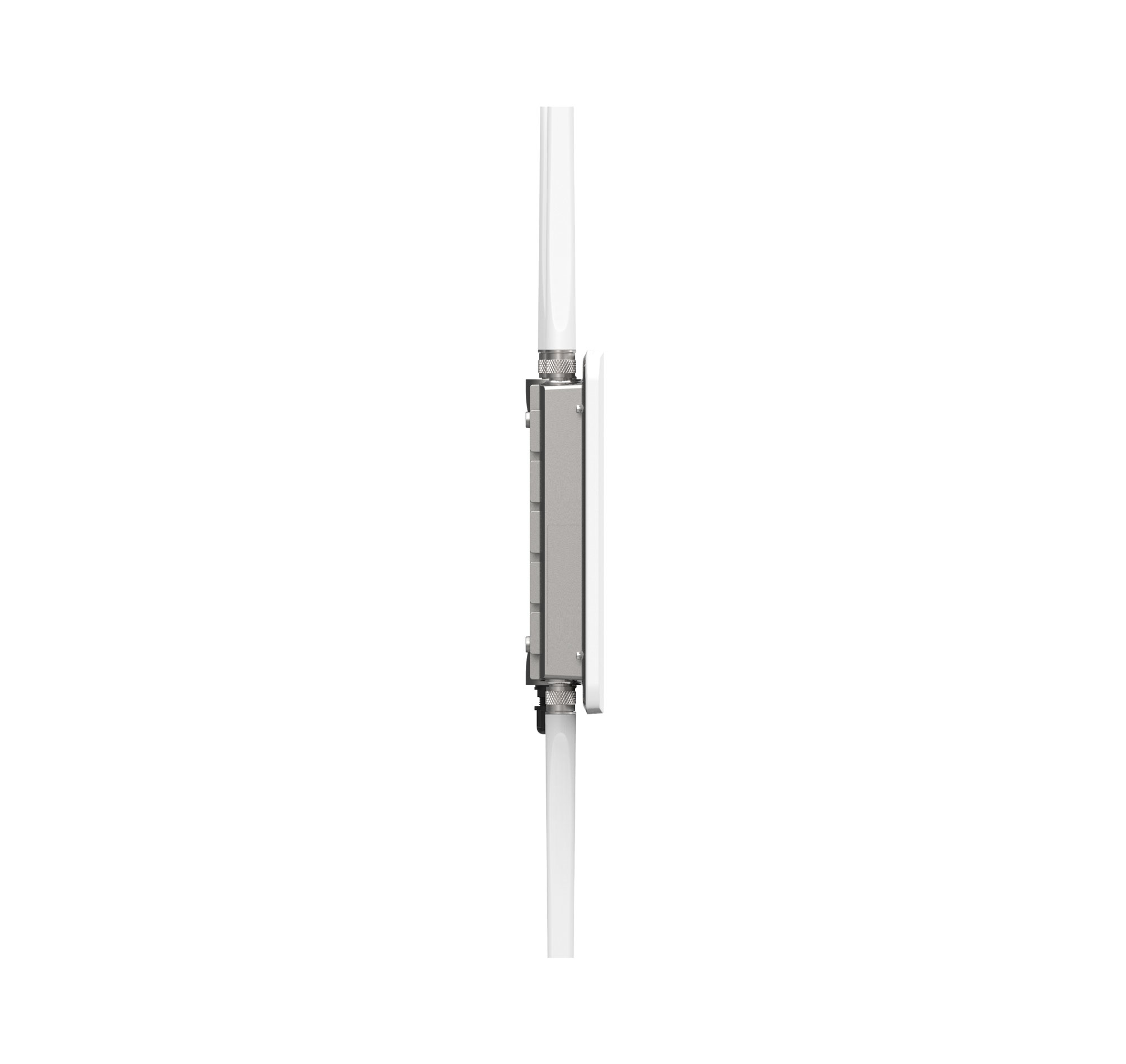

Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 5dBi ea
Model ECW270EAN 655216010659
44 specifications
- Speed2400 Mbit/s
- Weight1.87 kg
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementPole, Wall
Overview
- Speed
- 2400 Mbit/s
- Weight
- 1.87 kg
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Pole, Wall
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW270
- Part number
- ECW270
- EAN / UPC
- 655216010659, 4713361935886
- Also known as
- EnGenius Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 5dBi ea
Specifications
44 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP68 |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna connector type | N-type |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 285 mm |
| Height | 55.5 mm |
| Weight | 1.87 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 370 mm |
| Package depth | 146 mm |
| Package height | 305 mm |
| Package weight | 4.37 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 2 pc(s) |
