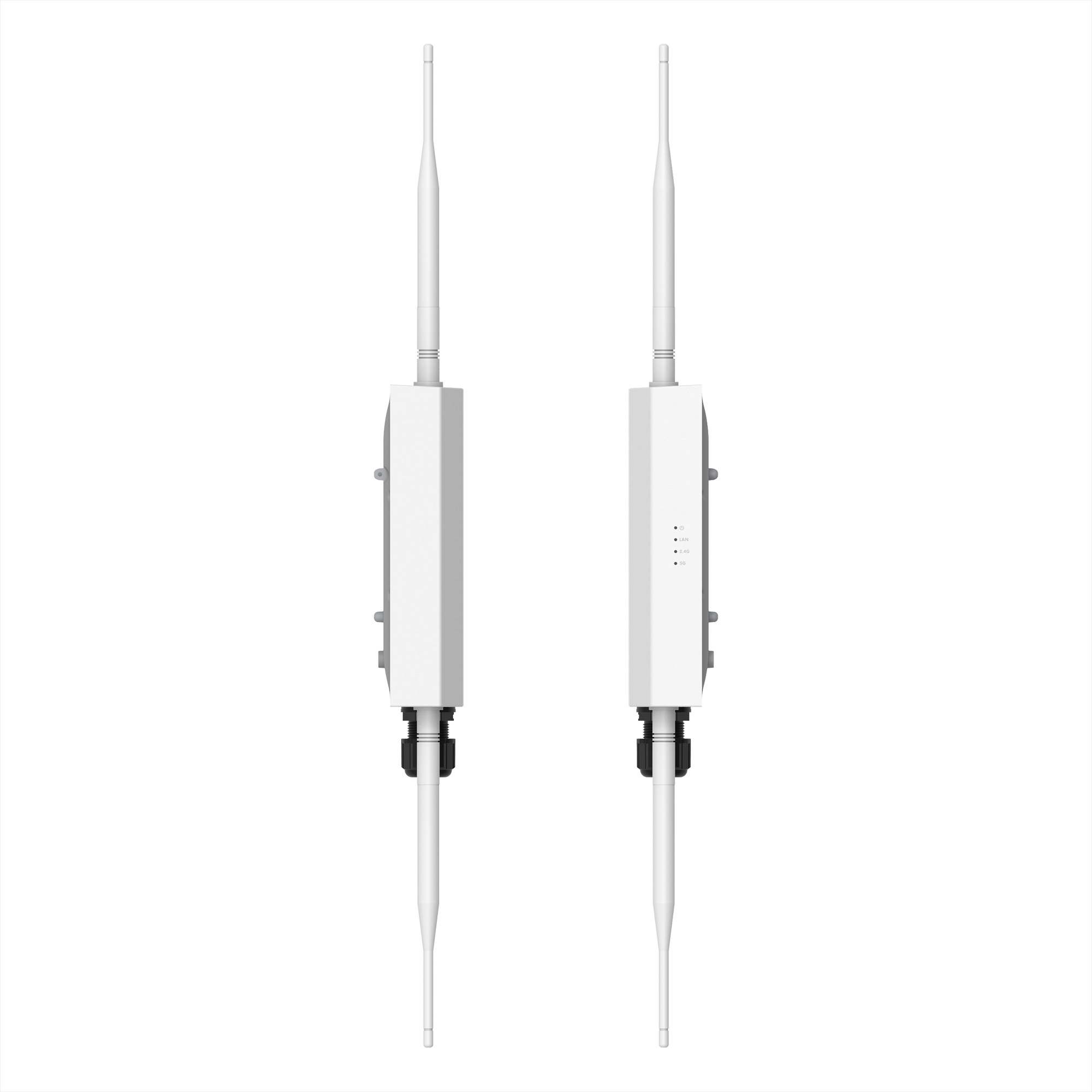

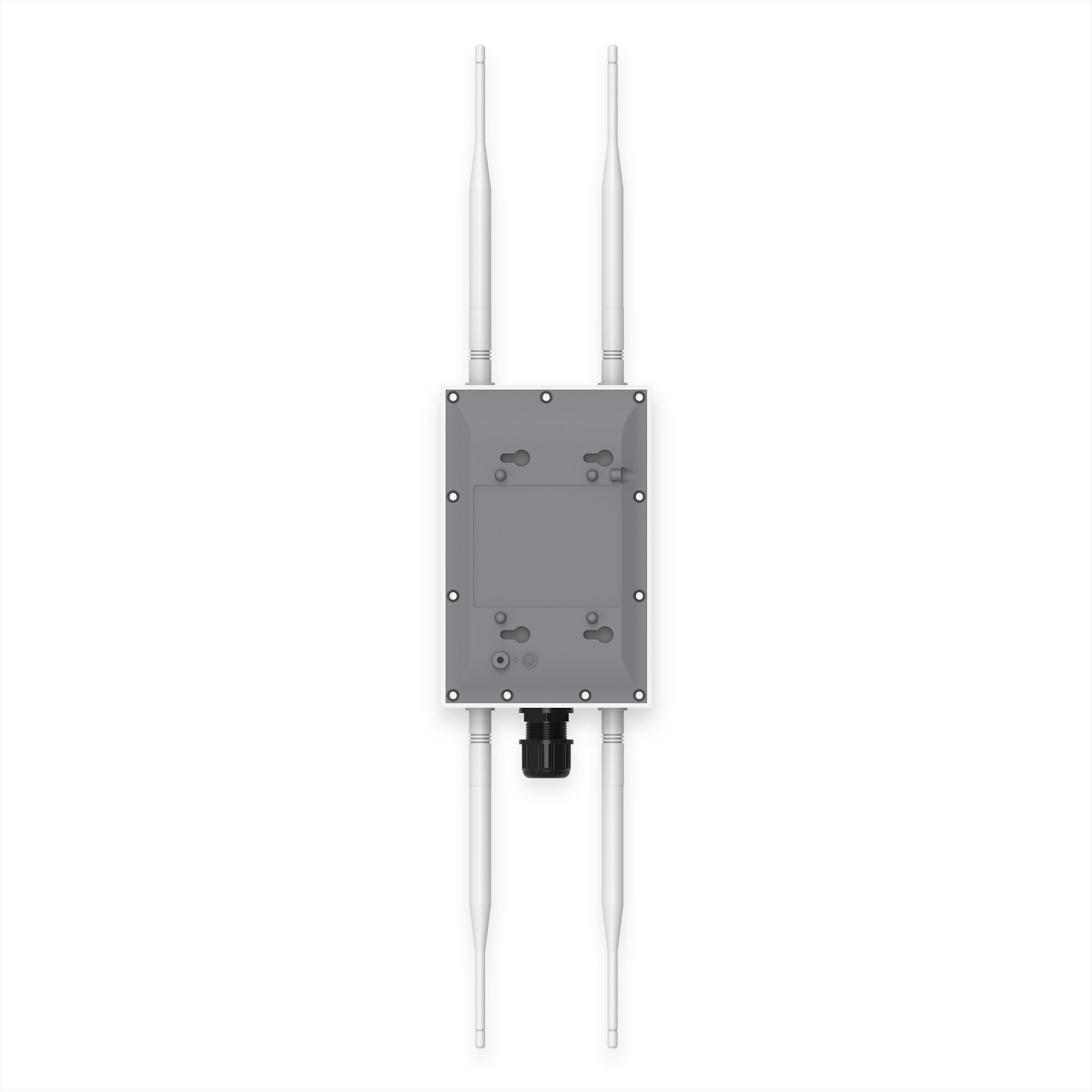

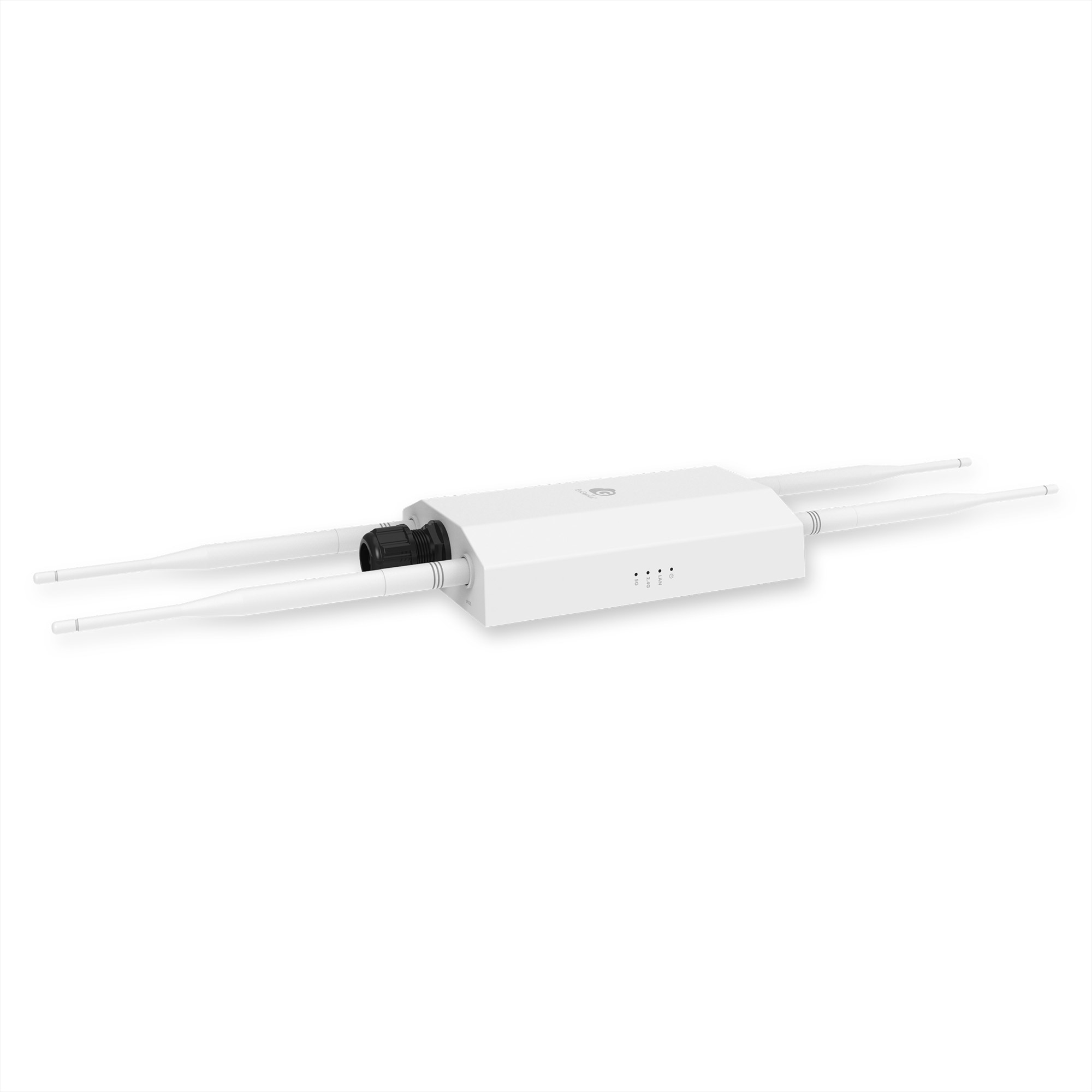

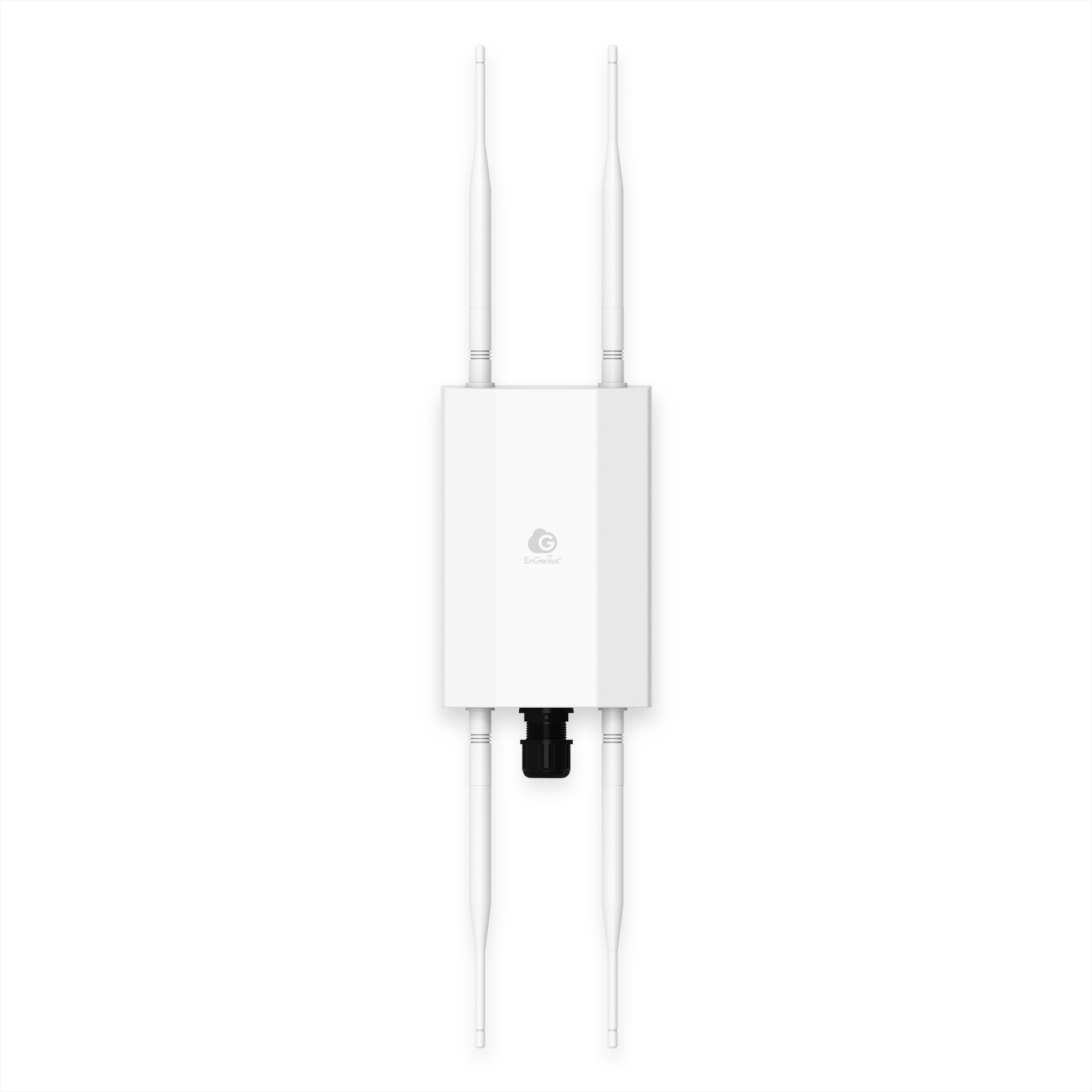

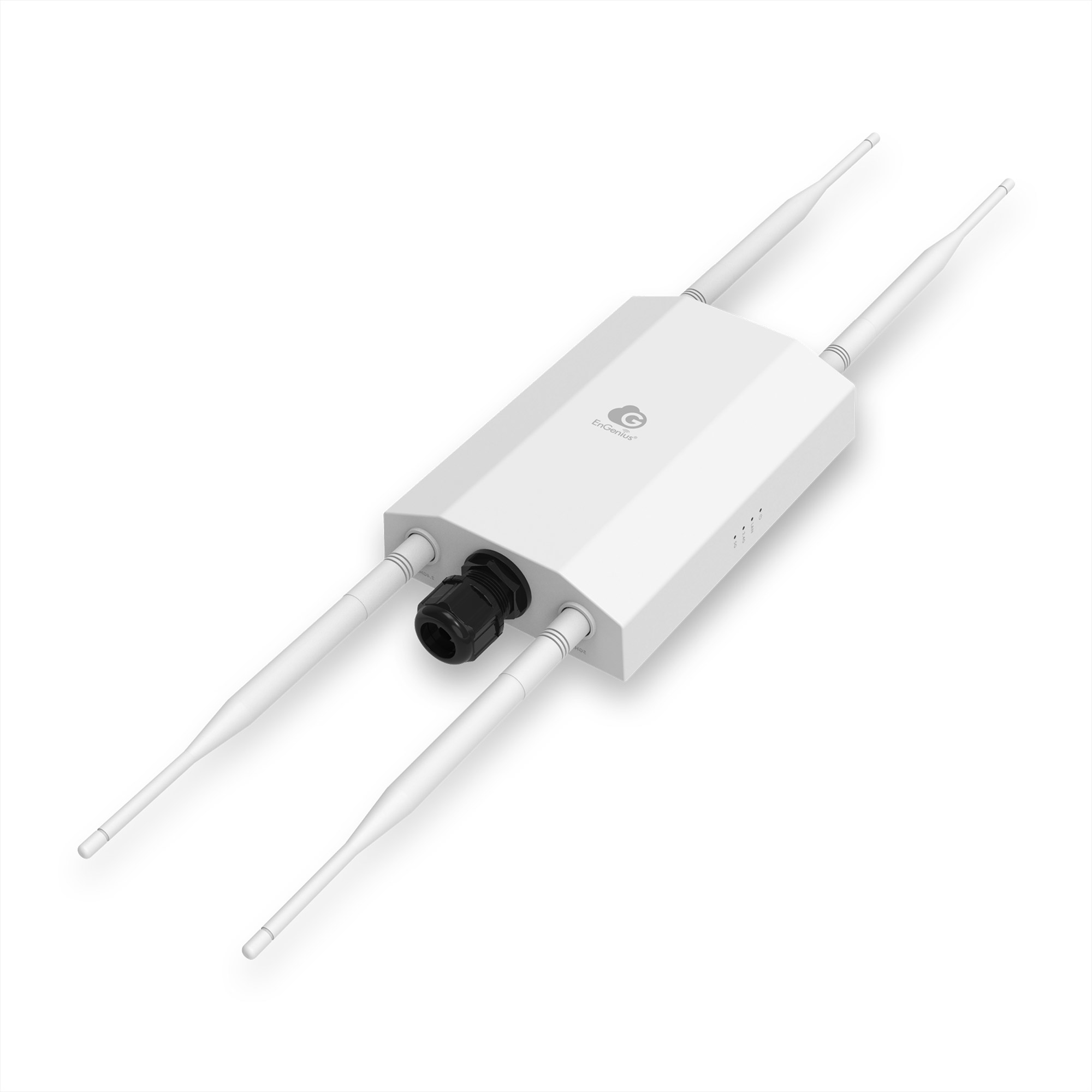

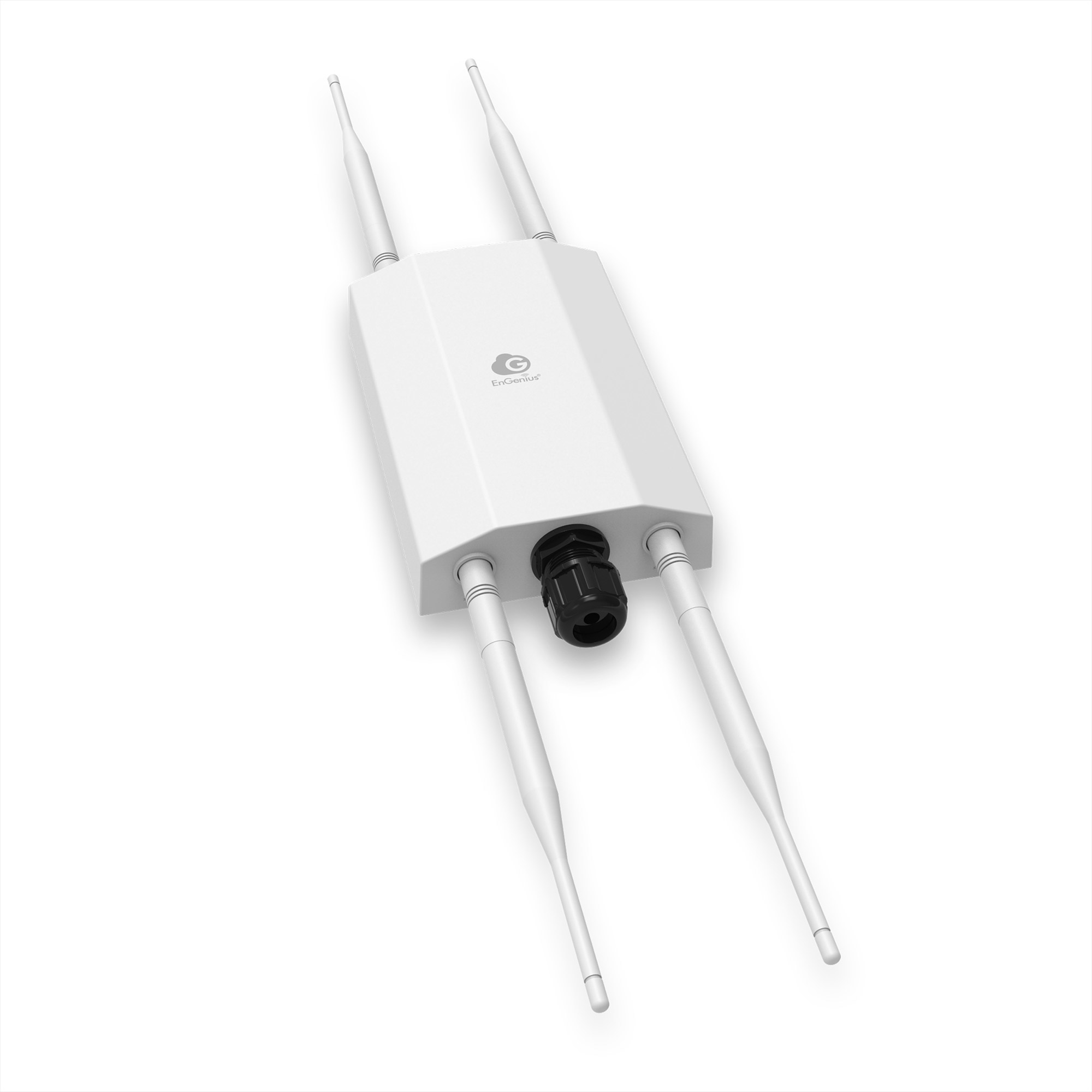

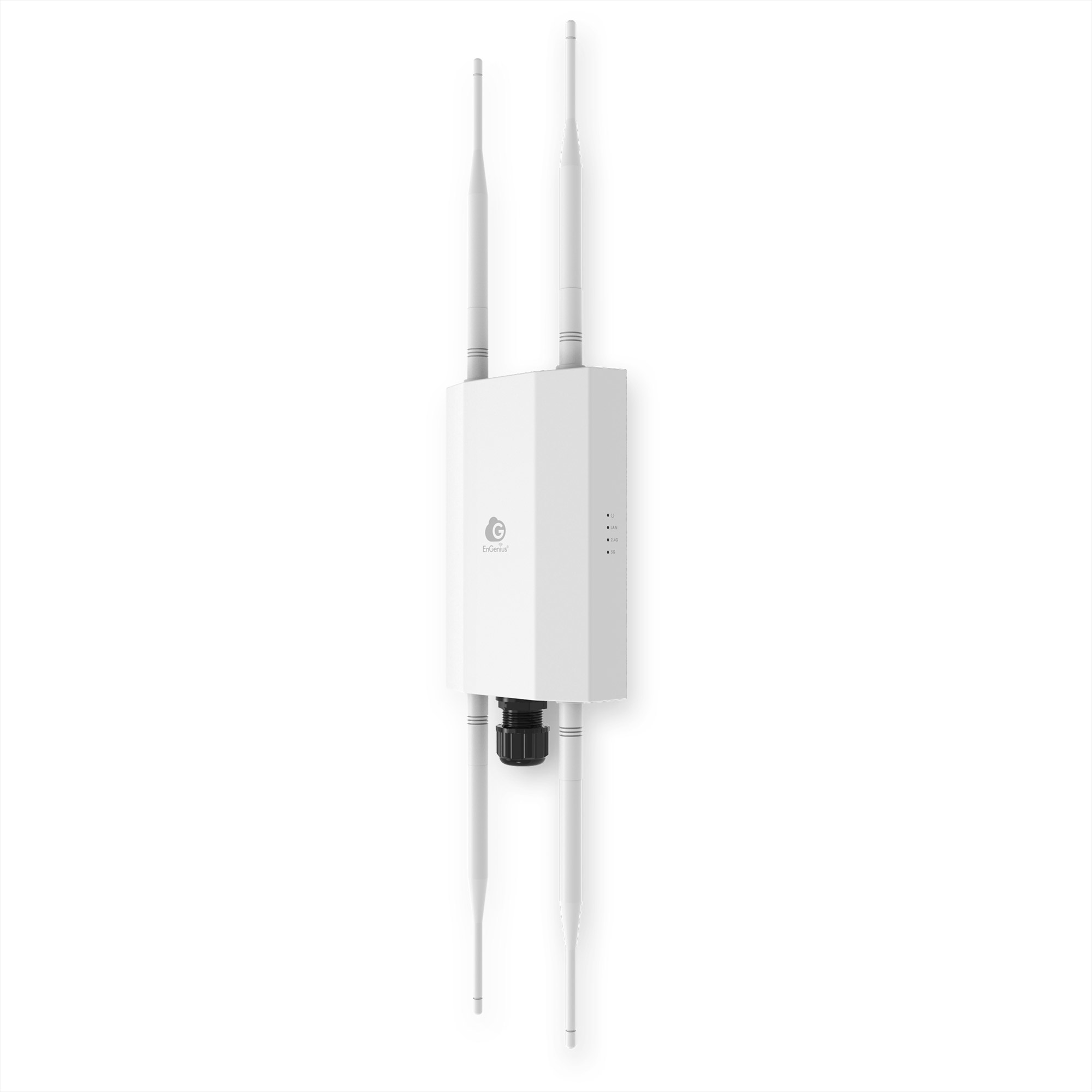

Cloud Managed AP Outdoor Dual Band 11ax 574+1200Mbps 2T2R 2.5GbE PoE.at(+)
4x5dBi RP-SMA IP67
Model ECW260EAN 655216010048
59 specifications
- ProcessorARM Cortex-A53
- Speed1774 Mbit/s
- Weight700 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- ARM Cortex-A53
- Speed
- 1774 Mbit/s
- Weight
- 700 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW260
- Part number
- ECW260
- EAN / UPC
- 655216010048, 4713361935558
- Also known as
- EnGenius Cloud Managed AP Outdoor Dual Band 11ax 574+1200Mbps 2T2R 2.5GbE PoE.at(+) 4x5dBi RP-SMA IP67
Specifications
59 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs |
| Number of SSID supported | 8 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power consumption (max) | 15.9 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| LED indicators | LAN, Power, WLAN |

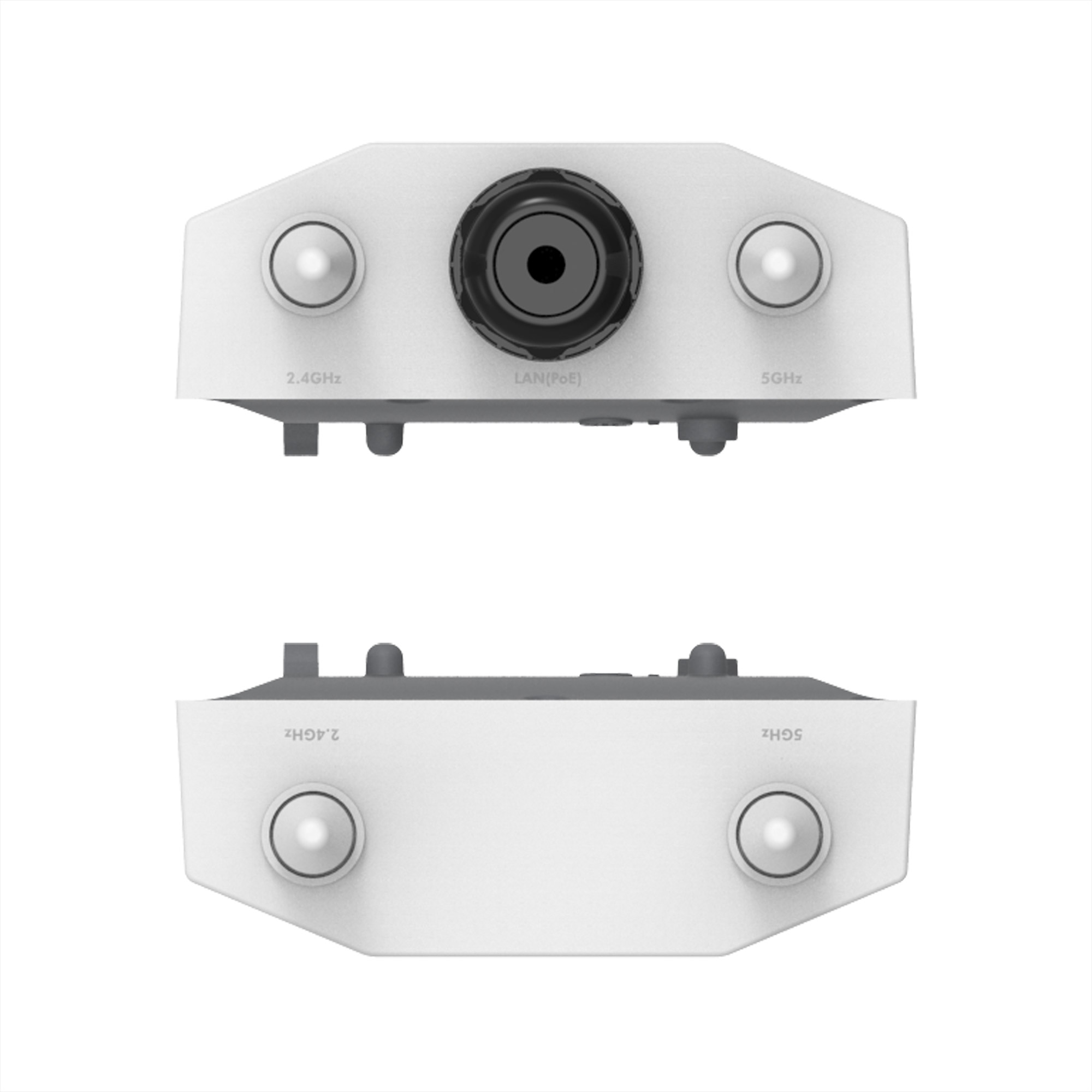

Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | SMA |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A53 |
| Processor frequency | 1800 MHz |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 190 mm |
| Height | 52.5 mm |
| Weight | 700 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 284 mm |
| Package depth | 144 mm |
| Package height | 234 mm |
| Package weight | 1.51 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |

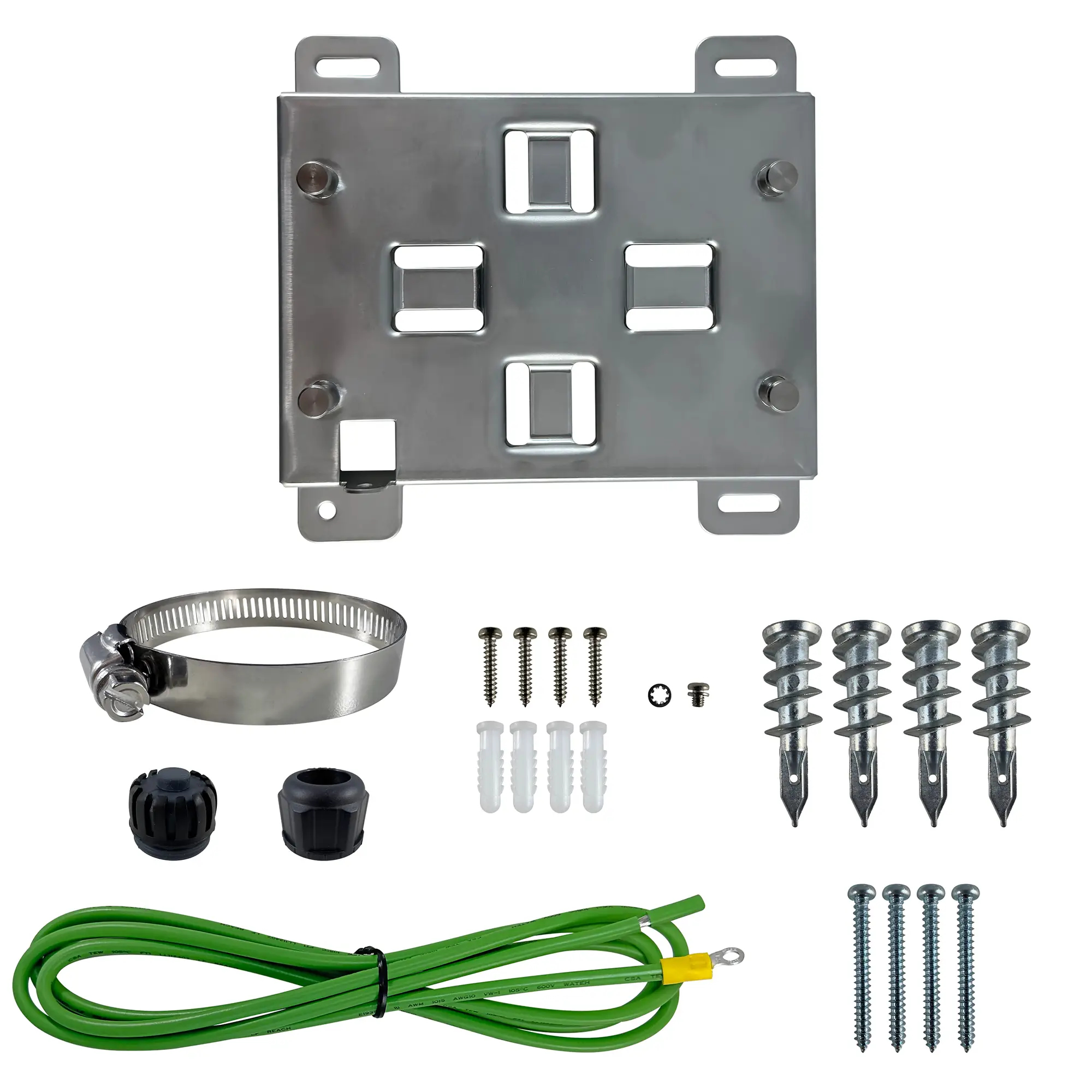

| Mounting kit | Yes |
| Quick start guide | Yes |
| Antenna included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 310 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 6 pc(s) |
