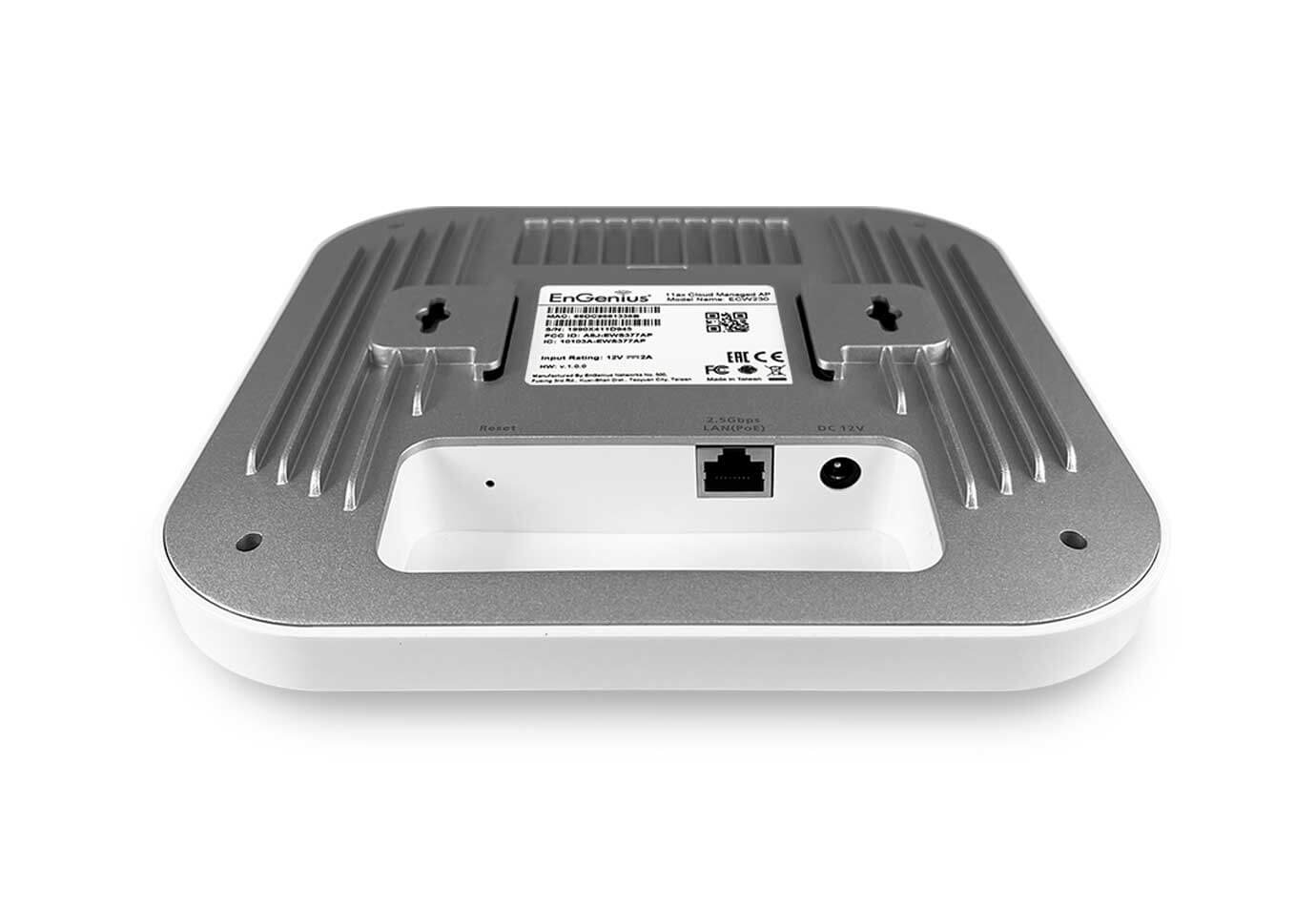

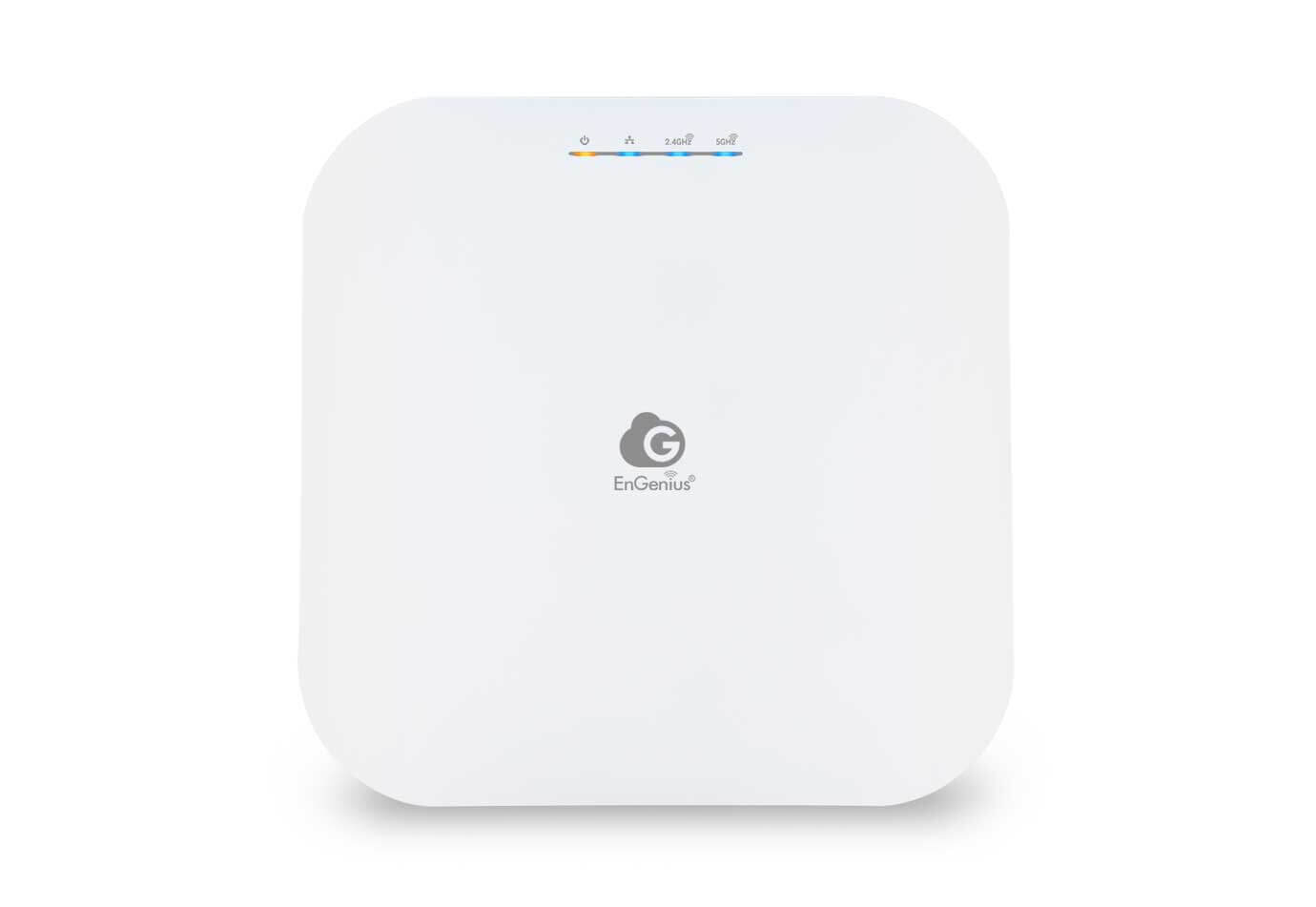

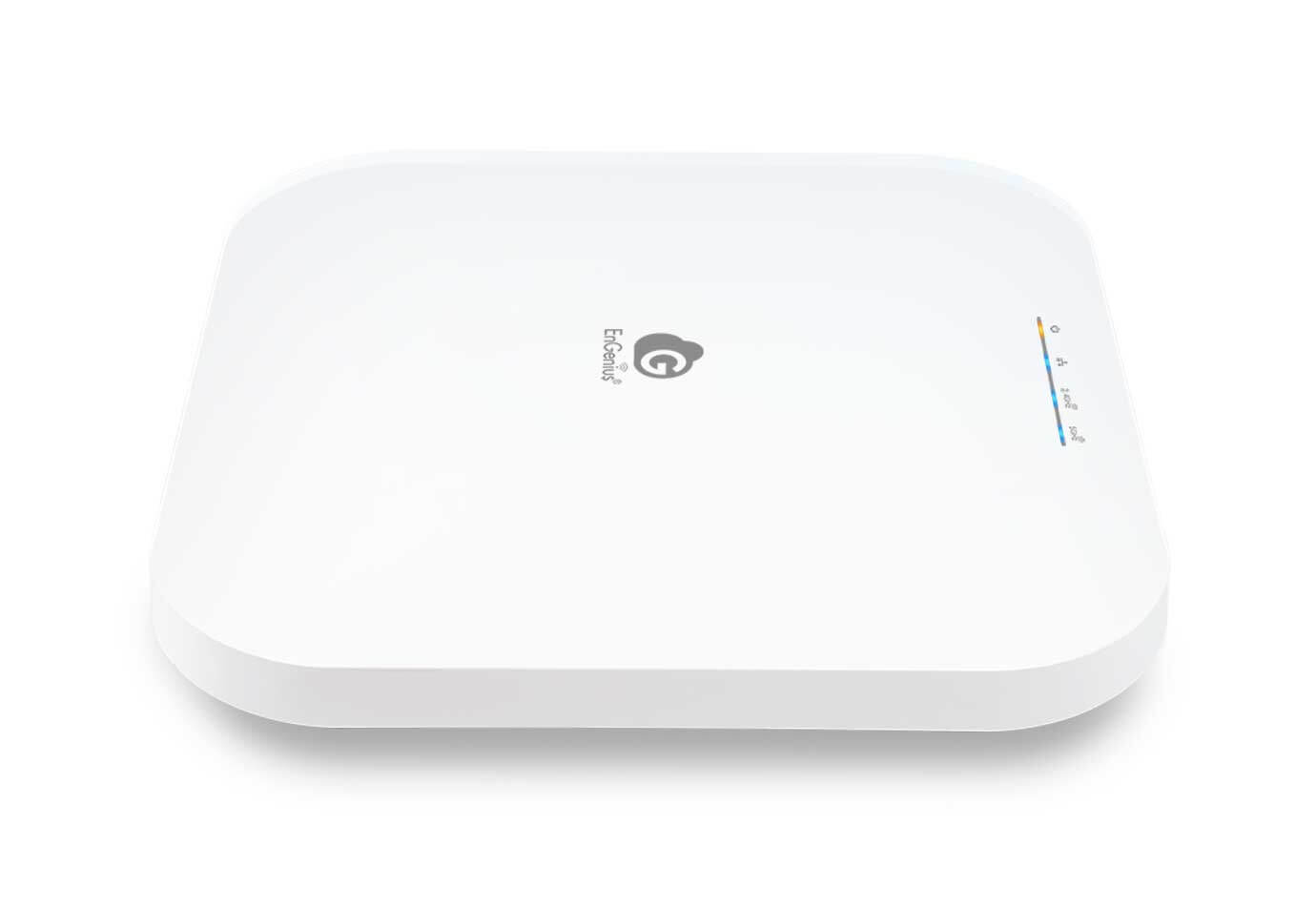

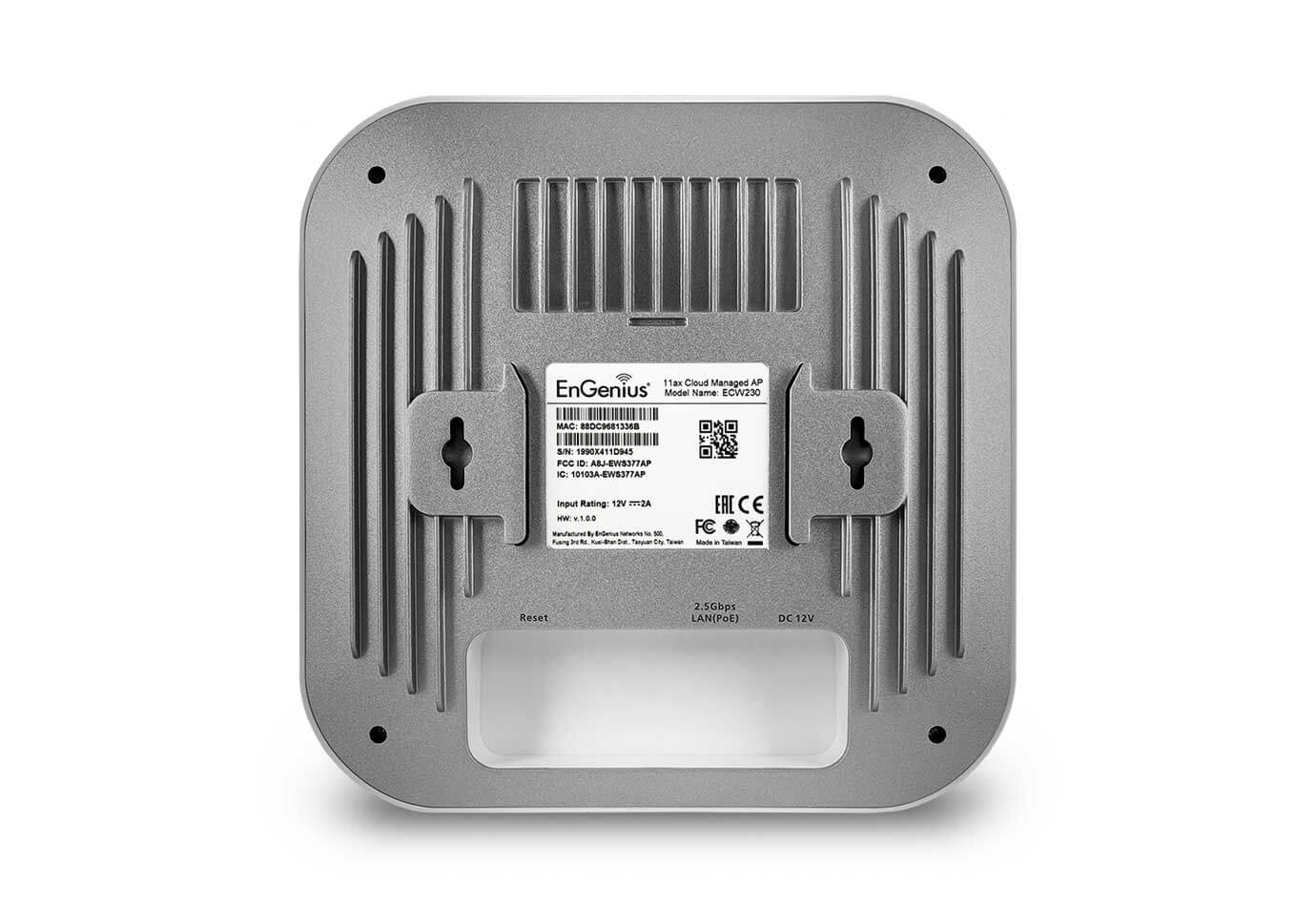

EnGenius Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 3dBi ia

Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 3dBi ia

Model ECW230EAN 655216009615

57 specifications

Speed2400 Mbit/s
Weight597 g
ColourWhite
2.4 GHzYes
Management protocolsSNMP
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 2400 Mbit/s
Weight: 597 g
Colour: White
2.4 GHz: Yes
Management protocols: SNMP
Ethernet LAN (RJ-45) ports: 1

Brand: EnGenius
Category: Wireless Access Point
Model: ECW230
Part number: ECW230
EAN / UPC: 655216009615, 4713361934940
Also known as: EnGenius Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 3dBi ia

Specifications

57 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	2400 Mbit/s
Maximum data transfer rate (2.4 GHz)	1148 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA, DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Yes
Transmitting power	23 dBmW

Security

Specification	Value
Security algorithms	WPA3, 64-bit WEP, 128-bit WEP, 152-bit WEP, SSH, WPA, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8

Protocols

Specification	Value
Management protocols	SNMP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (max)	19.5 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	8
Antenna gain level (max)	3 dBi

Weight & dimensions

Specification	Value
Width	210 mm
Depth	210 mm
Height	33.2 mm
Weight	597 g

Packaging data

Specification	Value
Package width	245 mm
Package depth	85 mm
Package height	245 mm
Package weight	911 g

Packaging content

Specification	Value
Quick start guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	460 mm
Master (outer) case length	520 mm
Master (outer) case height	270 mm
Master (outer) case gross weight	11.9 kg
Products per master (outer) case	10 pc(s)
