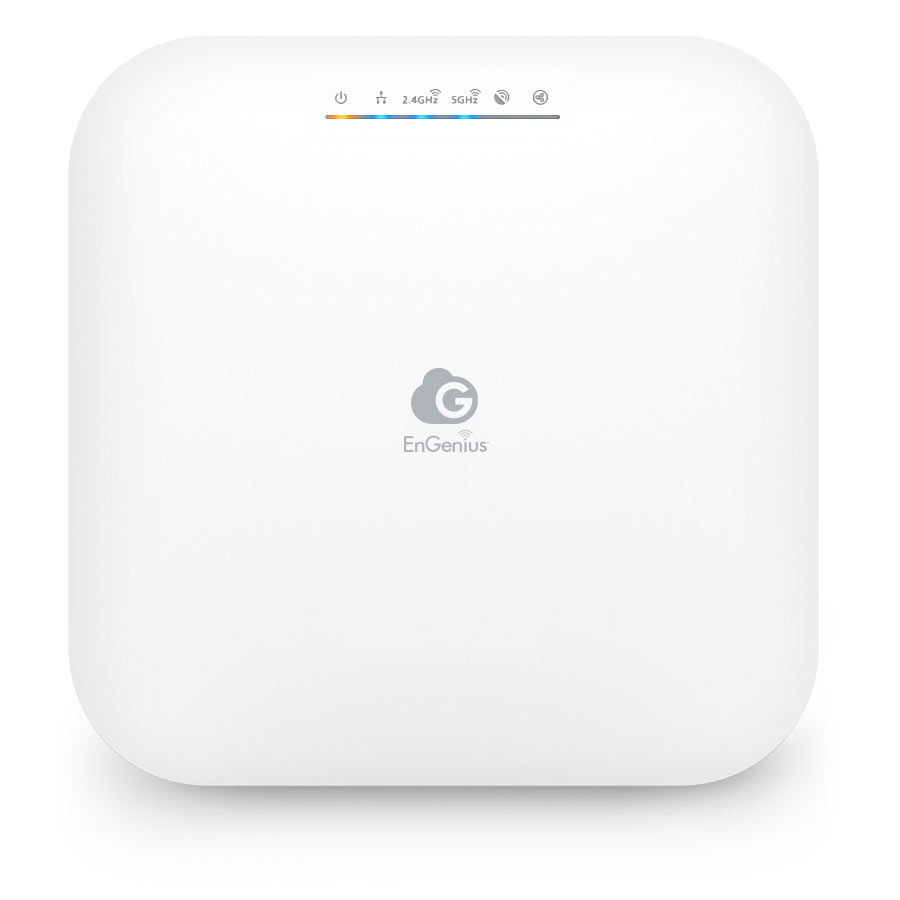

Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.at(+) 3dBi ia Scanning Radio BLE
Model ECW220SEAN 655216010642
64 specifications
- ProcessorARM Cortex-A53
- Speed1774 Mbit/s
- Weight430 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
Overview
- Processor
- ARM Cortex-A53
- Speed
- 1774 Mbit/s
- Weight
- 430 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW220S
- Part number
- ECW220S
- EAN / UPC
- 655216010642, 4713361935879
- Also known as
- EnGenius Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.at(+) 3dBi ia Scanning Radio BLE
Specifications
64 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Dynamic Frequency Selection (DFS) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs |
| Number of SSID supported | 8 |
| Wireless Intrusion Detection System (WIDS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 12.8 W |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| LED indicators | Bluetooth, LAN, Power, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A53 |
| Processor frequency | 2000 MHz |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.2 mm |
| Weight | 430 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 83 mm |
| Package height | 205 mm |
| Package weight | 611 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 440 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 7.2 kg |
| Products per master (outer) case | 10 pc(s) |
