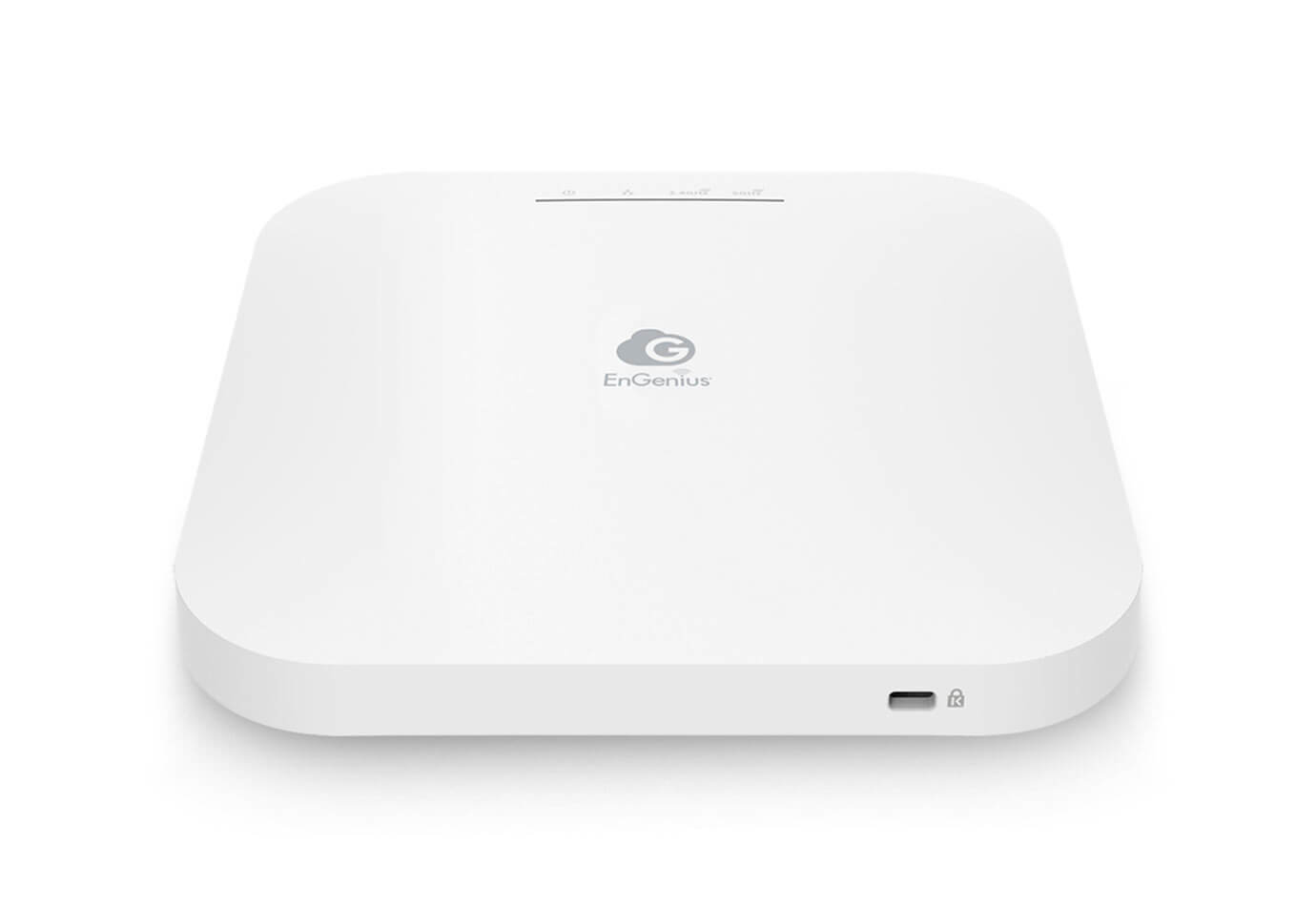

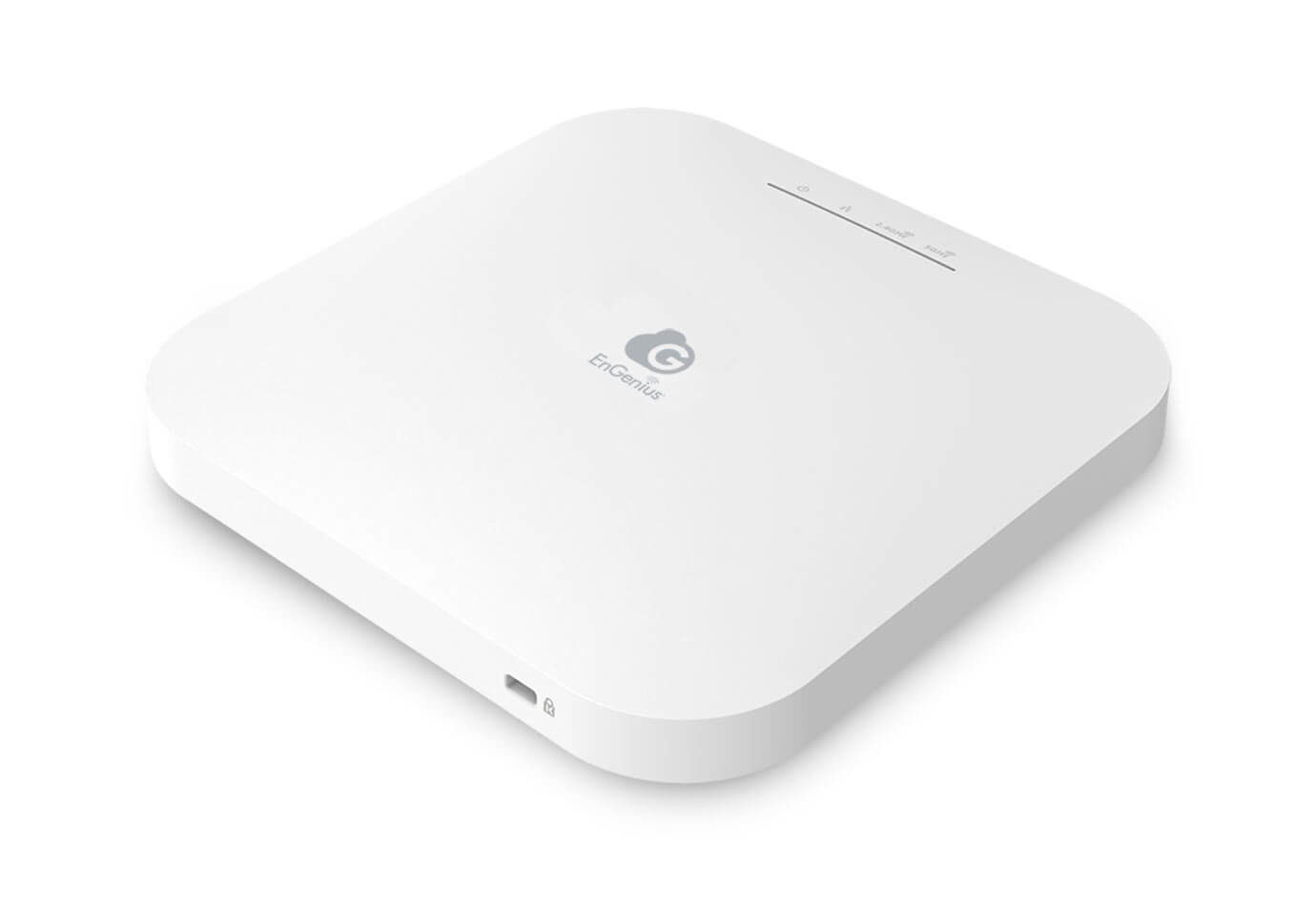

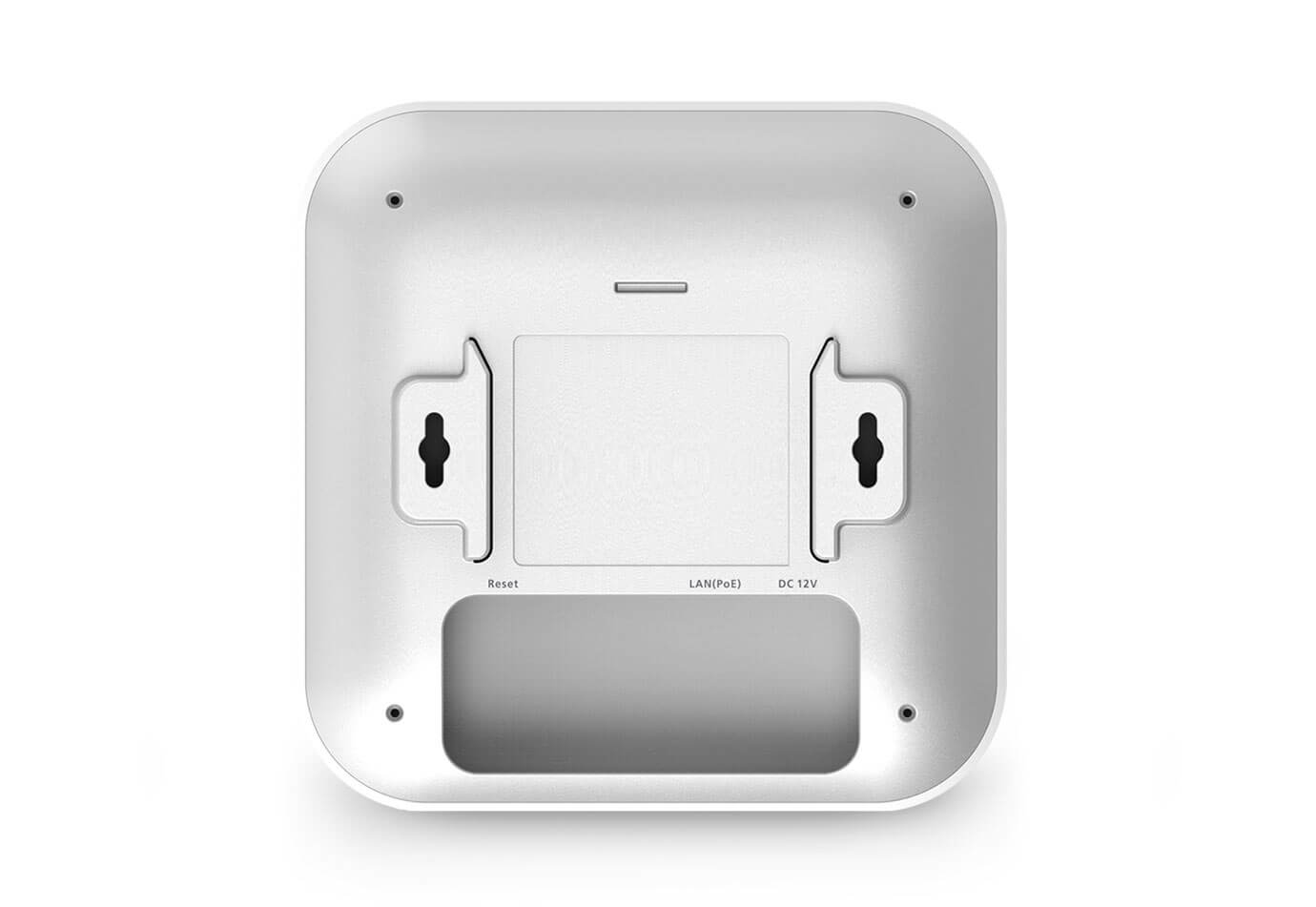

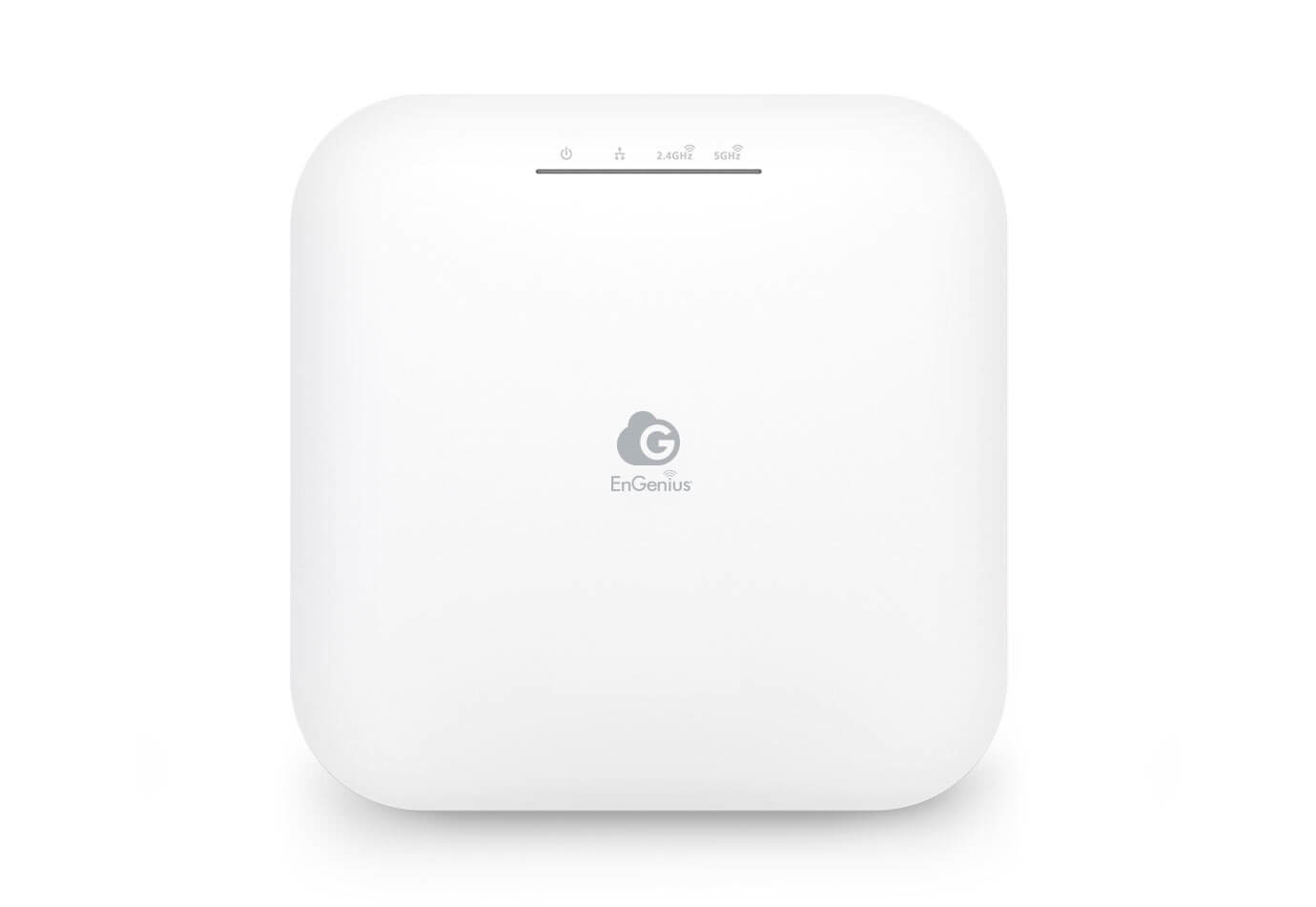

EnGenius Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia

Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia

Model ECW220EAN 655216009608

60 specifications

Speed1200 Mbit/s
Weight382 g
ColourWhite
2.4 GHzYes
Security algorithmsWPA3, SSH, WPA2-AES, WPA2-PSK
Management protocolsSNMP

See all specifications

Overview

Speed: 1200 Mbit/s
Weight: 382 g
Colour: White
2.4 GHz: Yes
Security algorithms: WPA3, SSH, WPA2-AES, WPA2-PSK
Management protocols: SNMP

Brand: EnGenius
Category: Wireless Access Point
Model: ECW220
Part number: ECW220
EAN / UPC: 655216009608, 4711488350087, 4713361934933
Also known as: EnGenius Cloud Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 3dBi ia

Specifications

60 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1200 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA, DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Yes
Transmitting power	20 dBmW

Security

Specification	Value
Security algorithms	WPA3, SSH, WPA2-AES, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8

Protocols

Specification	Value
Management protocols	SNMP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (max)	12.8 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington
Reset button	Yes
LED indicators	Yes

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	3 dBi

Certificates

Specification	Value
Certification	FCC, CE, IC

Weight & dimensions

Specification	Value
Width	160 mm
Depth	160 mm
Height	33.2 mm
Weight	382 g

Packaging data

Specification	Value
Package width	205 mm
Package depth	83 mm
Package height	205 mm
Package weight	603 g

Packaging content

Specification	Value
AC adapter included	Yes
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 80 °C

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	440 mm
Master (outer) case length	450 mm
Master (outer) case height	240 mm
Master (outer) case gross weight	7.2 kg
Products per master (outer) case	10 pc(s)
