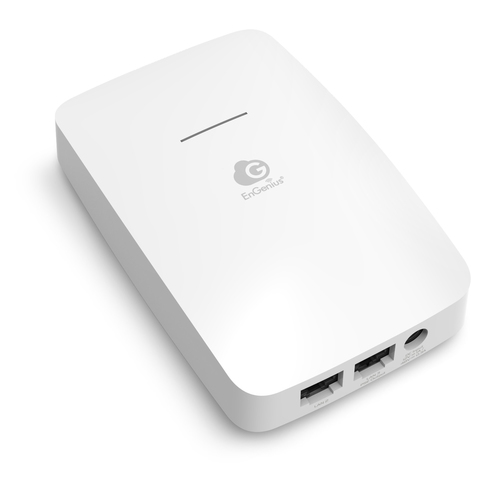

Cloud Managed AP Wall-Plate 11ax Wi-Fi6 400+867Mbps 2T2R GbE PoE.af
2x4 & 2x 5dBi ia
Model ECW215EAN 655216010741
48 specifications
- Speed1200 Mbit/s
- Weight363 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports3
- PlacementWall
Overview
- Speed
- 1200 Mbit/s
- Weight
- 363 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- Placement
- Wall
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECW215
- Part number
- ECW215
- EAN / UPC
- 655216010741, 4713361935961
- Also known as
- EnGenius Cloud Managed AP Wall-Plate 11ax Wi-Fi6 400+867Mbps 2T2R GbE PoE.af 2x4 & 2x 5dBi ia
Specifications
48 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 1.5 A |
| Power consumption (max) | 14.2 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1000 MHz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 363 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 188 mm |
| Package depth | 70 mm |
| Package height | 136 mm |
| Package weight | 433 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 80 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 460 mm |
| Master (outer) case height | 230 mm |
| Master (outer) case gross weight | 5.9 kg |
| Products per master (outer) case | 12 pc(s) |
