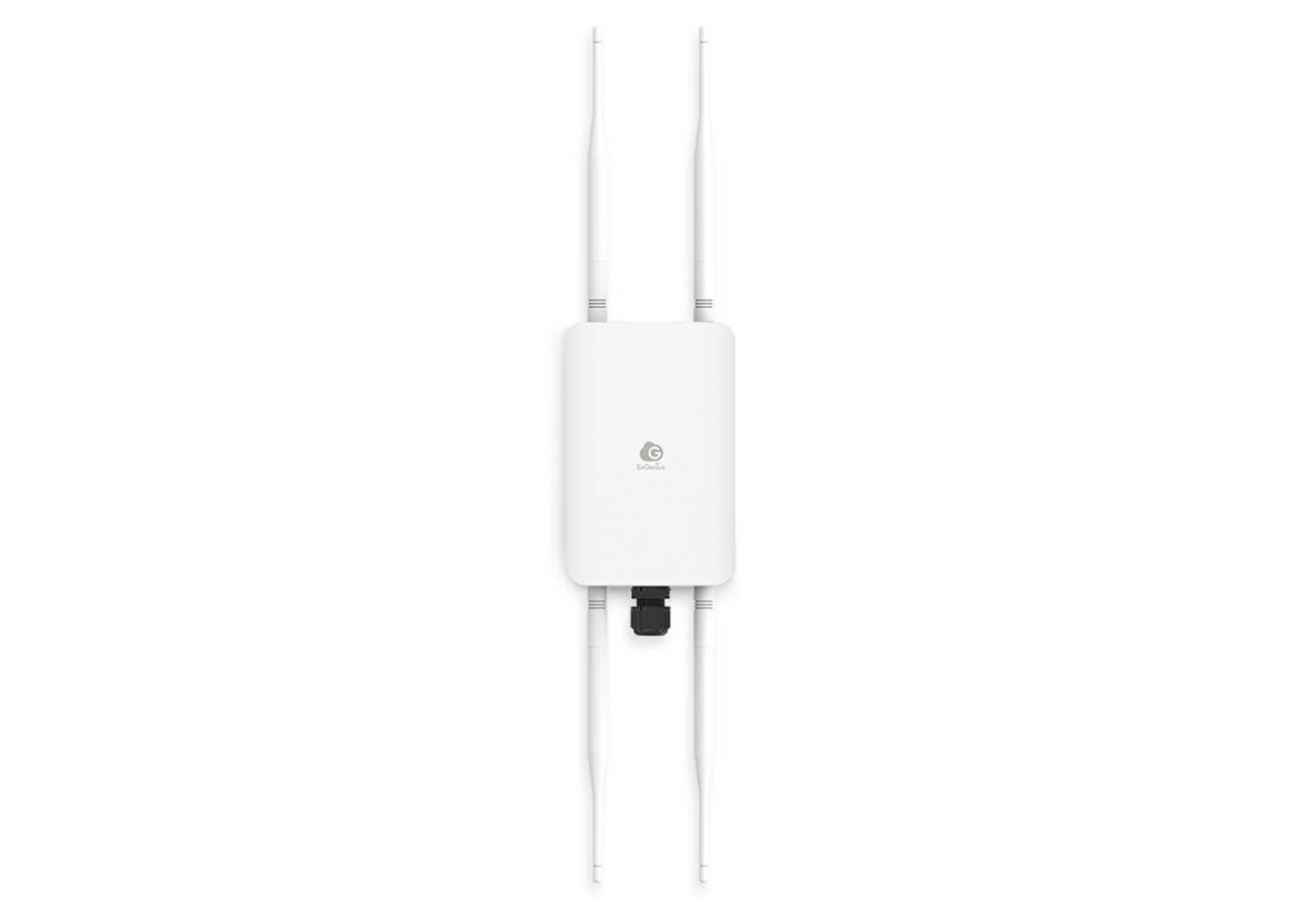

EnGenius Cloud Managed Outdoor AP DBC 11ac Wave2 400+867Mbps 2T2R

Cloud Managed Outdoor AP DBC 11ac Wave2 400+867Mbps 2T2R

4x5dBi RP-SMA GbE PoE.af IP67

Model ECW160EAN 655216009639

56 specifications

Speed867 Mbit/s
Weight829.5 g
ColourWhite
2.4 GHzYes
Management protocolsSNMP
Ethernet LAN (RJ-45) ports1

See all specifications

Overview

Speed: 867 Mbit/s
Weight: 829.5 g
Colour: White
2.4 GHz: Yes
Management protocols: SNMP
Ethernet LAN (RJ-45) ports: 1

Brand: EnGenius
Category: Wireless Access Point
Model: ECW160
Part number: ECW160
EAN / UPC: 655216009639, 4713361934964
Also known as: EnGenius Cloud Managed Outdoor AP DBC 11ac Wave2 400+867Mbps 2T2R 4x5dBi RP-SMA GbE PoE.af IP67

Specifications

56 specifications in 13 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	400 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	DSSS, OFDM
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Fit AP mode features	Mesh networking
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Quality of Service (QoS) support	Yes
Transmitting power	23 dBmW

Security

Specification	Value
Security algorithms	SSH, WPA2-AES, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8

Protocols

Specification	Value
Management protocols	SNMP

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power consumption (max)	12.6 W

Design

Specification	Value
Placement	Pole, Wall
Product colour	White
LED indicators	Yes

Antenna

Specification	Value
Antenna type	External
Antenna direction type	Omni-directional
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	5 dBi
Antenna connector type	SMA
Number of connectors	4

Certificates

Specification	Value
Certification	FCC, CE, IC

Weight & dimensions

Specification	Value
Width	111.2 mm
Depth	173.6 mm
Height	30.3 mm
Weight	829.5 g

Packaging data

Specification	Value
Package width	247 mm
Package depth	79 mm
Package height	150 mm
Package weight	580 g

Packaging content

Specification	Value
Mounting kit	Yes
Quick start guide	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-40 - 80 °C

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	330 mm
Master (outer) case length	510 mm
Master (outer) case height	290 mm
Master (outer) case gross weight	7.9 kg
Products per master (outer) case	12 pc(s)
