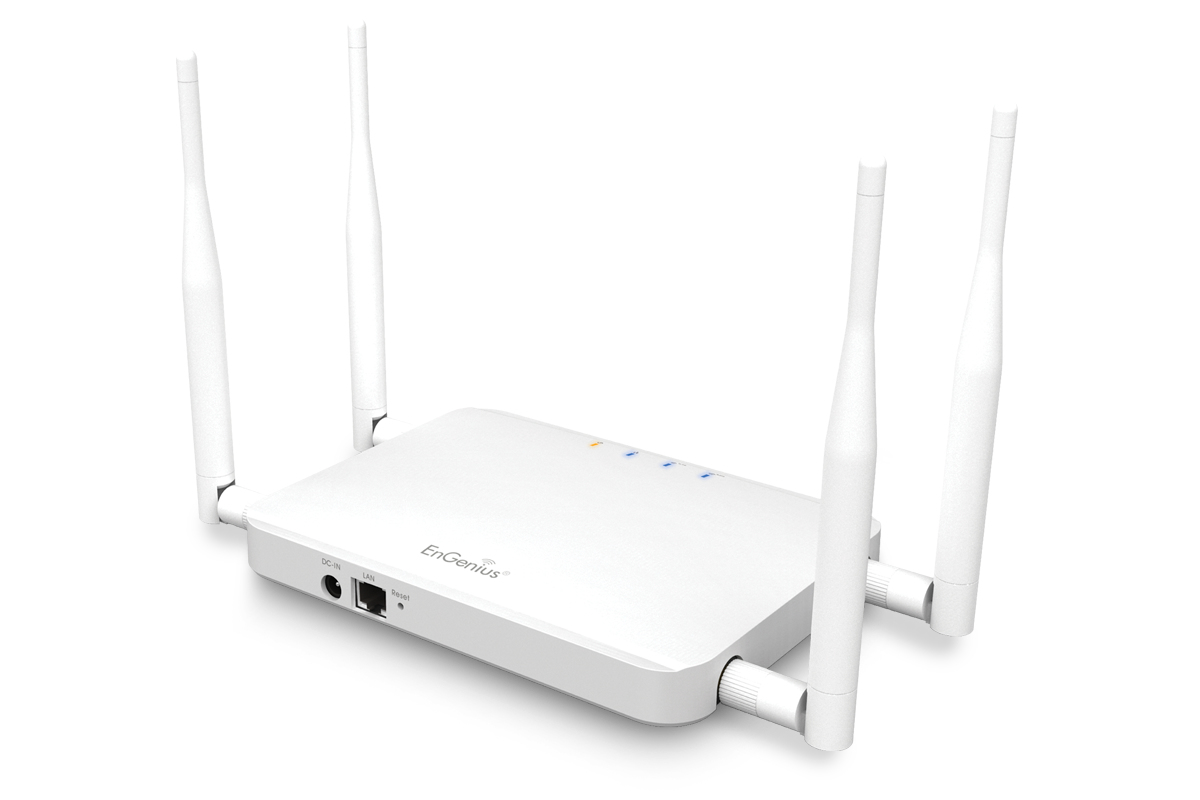

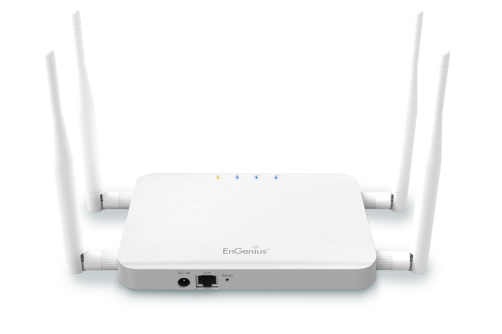

EnGenius ECB600 wireless access point 600 Mbit/s White Power over Ethernet (PoE)

EnGenius ECB600 wireless access point 600 Mbit/s White Power over Ethernet (PoE)

Model ECB600EAN 729198258528

63 specifications
  • Memory64 MB
  • Speed600 Mbit/s
  • Weight480 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
64 MB
Speed
600 Mbit/s
Weight
480 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
EnGenius
Model
ECB600
Part number
ECB600
EAN / UPC
729198258528, 123556555937, 132017775487, 163121434229 +3 more
Also known as
EnGenius ECB600 wireless access point 600 Mbit/s White Power over Ethernet (PoE)

Specifications

63 specifications in 14 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate600 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)300 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.412 - 2.484, 5.5 - 5.7, 5.745 - 5.825 GHz
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Channels quantity13 channels
Channel bandwidth40 MHz
Automatic channel selectionYes
Modulation64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Client Bridge,Repeater,WDS
Wireless isolationYes
Quality of Service (QoS) supportYes
Receiver sensitivity802.11n (5 GHz) -94dBm @ MCS0 -76dBm @ MCS7 -91dBm @ MCS8 -73dBm @ MCS15 802.11n (2.4 GHz) -95dBm @ MCS0 -77dBm @ MCS7 -91dBm @ MCS8 -75dBm @ MCS15 802.11a (5 GHz) -95dBm @ 6Mbps -80dBm @ 54Mbps 802.11b (2.4 GHz) -95dBm @ 1Mbps -91dBm @ 11Mbps

Security

Security algorithms802.1x RADIUS, MD5, PEAP, SSL/TLS, TTLS, WPA, WPA-EAP, WPA-PSK, WPA2
MAC address filteringYes
Auto Wireless Distribution System (WDS)Yes
VPN supportIPsec, L2TP, PPTP

Protocols

Universal Plug and Play (UPnP)Yes
DHCP clientYes
Supported network protocolsHTTP, Telnet
Management protocolsSNMP v1, SNMP v2c, SNMP v3, CLI, MIB I/II

Management features

Web-based managementYes
Command-line interface (CLI)Yes
Firmware upgradeableYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input voltage12 V
Input current2 A

Design

PlacementTable, Wall
Product colourWhite
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna direction typeOmni-directional
Antennas quantity4
Antenna gain level (max)5 dBi

Performance

Flash memory8 MB
Internal memory64 MB

Certificates

CertificationFCC, IC, CE

Weight & dimensions

Width139.7 mm
Depth185.4 mm
Height28.9 mm
Weight480 g

Packaging data

CD manualYes
Package width71.1 mm
Package depth309.9 mm
Package height233.7 mm

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Mounting kitYes
Quick start guideYes

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)0 - 90%
