EnGenius ECB3500-CC wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model ECB3500-CC
37 specifications
- ProcessorQualcomm Atheros AR2316
- Memory32 MB
- Speed54 Mbit/s
- Weight280 g
- 2.4 GHzYes
- WAN connectionEthernet (RJ-45)
Overview
- Processor
- Qualcomm Atheros AR2316
- Memory
- 32 MB
- Speed
- 54 Mbit/s
- Weight
- 280 g
- 2.4 GHz
- Yes
- WAN connection
- Ethernet (RJ-45)
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECB3500-CC
- Part number
- ECB3500-CC
- Also known as
- EnGenius ECB3500-CC wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
37 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3af |
| Channels quantity | 11 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| Management protocols | Telnet, SNMP 1, HTTP, SNMP 2c |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |

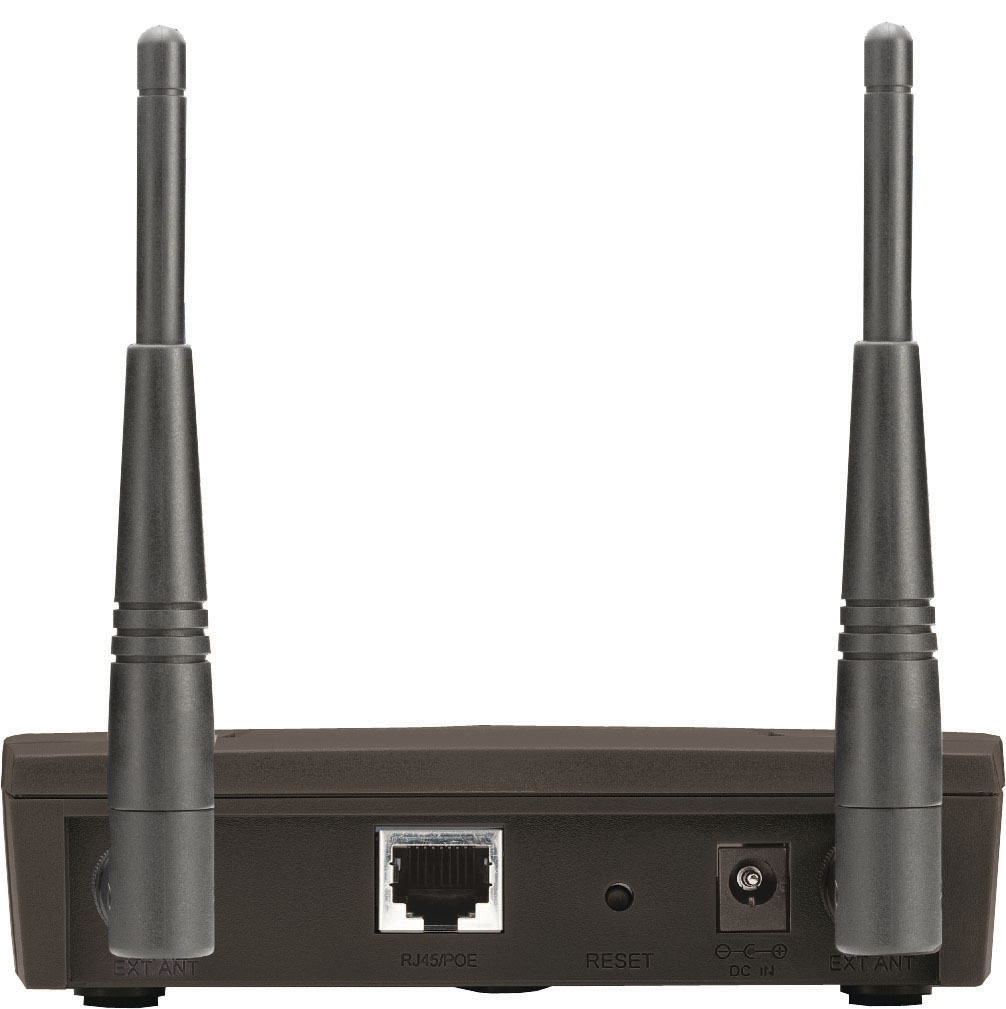

Ports & interfaces
| Specification | Value |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 90 - 240 V |
| Power requirements | 12V / 1A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | TNC |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros AR2316 |
| Processor frequency | 180 MHz |
| Flash memory | 4 MB |
| Internal memory | 32 MB |
| Internal memory type | DDR |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 120 x 120 x 50 mm |
| Weight | 280 g |
Other features
| Specification | Value |
|---|---|
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
