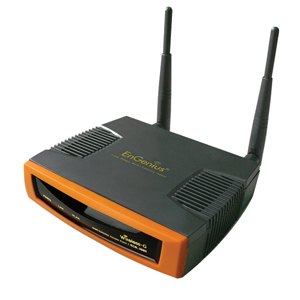

EnGenius ECB3500 wireless access point 108 Mbit/s
Model ECB3500EAN 191120090863
30 specifications
- Memory32 MB
- Speed108 Mbit/s
- 2.4 GHzYes
- Management protocolsTelnet, SNMP 1, HTTP, SNMP 2c
- Ethernet LAN (RJ-45) ports1
- AC input voltage12 V
Overview
- Memory
- 32 MB
- Speed
- 108 Mbit/s
- 2.4 GHz
- Yes
- Management protocols
- Telnet, SNMP 1, HTTP, SNMP 2c
- Ethernet LAN (RJ-45) ports
- 1
- AC input voltage
- 12 V
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECB3500
- Part number
- ECB3500
- EAN / UPC
- 191120090863, 961613171085
- Also known as
- EnGenius ECB3500 wireless access point 108 Mbit/s
Specifications
30 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 108 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Channels quantity | 13 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 152-bit WEP, 64-bit WEP, 802.1x RADIUS, SSID, WPA, WPA-AES, WPA-PSK, WPA-TKIP |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Telnet, SNMP 1, HTTP, SNMP 2c |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Input current | 1 A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | TNC |
Performance
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 32 MB |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 120 x 120 x 50 mm |
Other features
| Specification | Value |
|---|---|
| Wireless technology | 802.11 b/g |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage relative humidity (H-H) | -20 - 70% |
