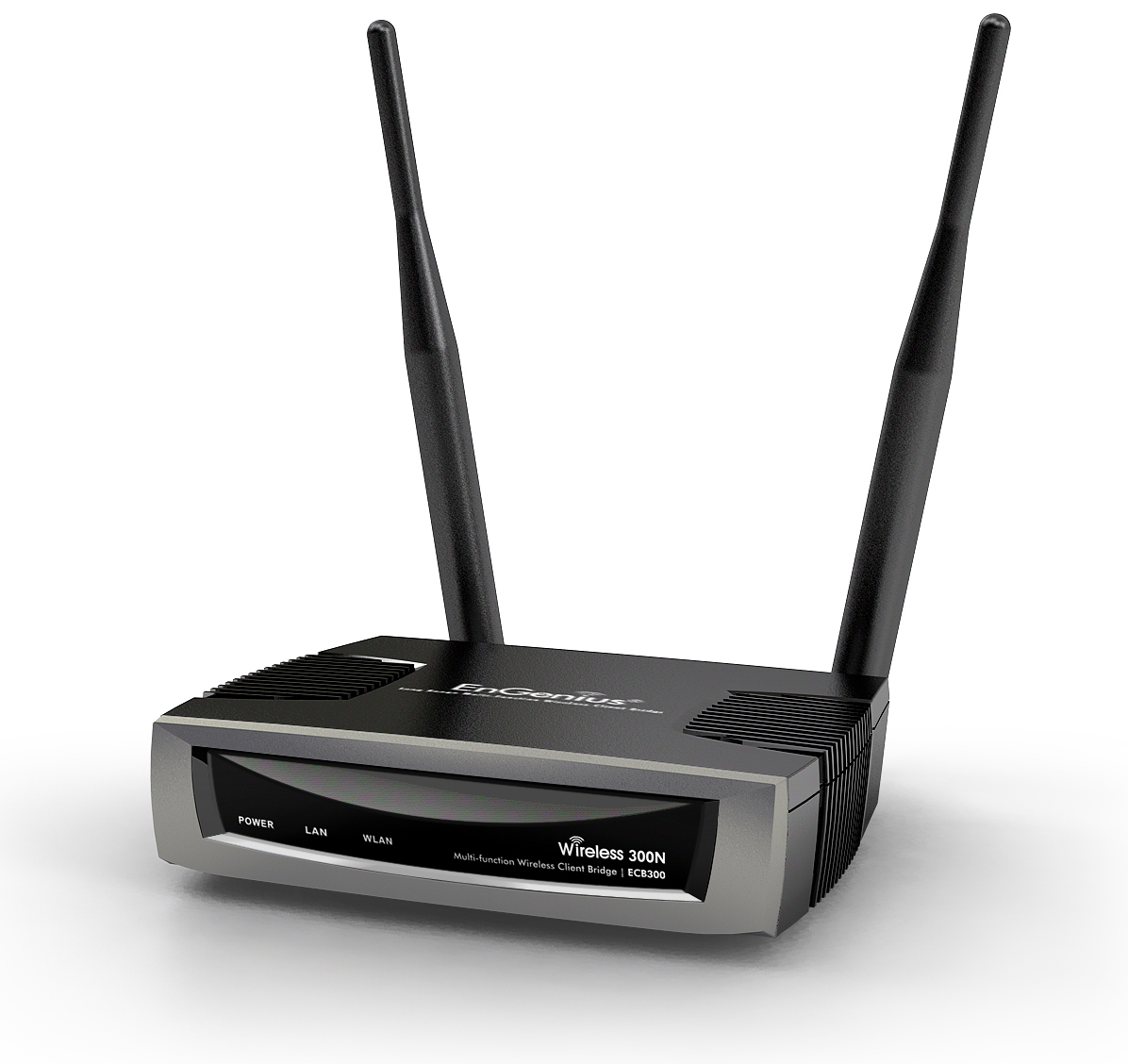

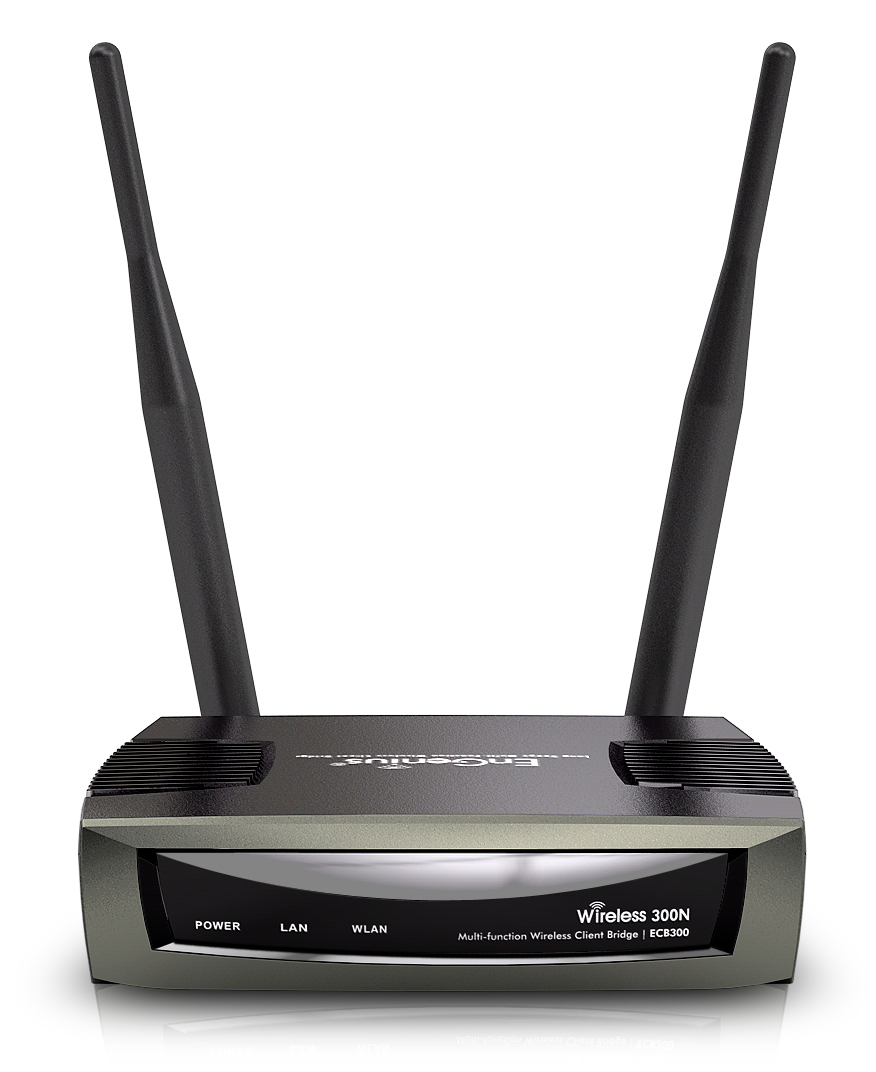

EnGenius ECB300 wireless access point 300 Mbit/s Black, Grey Power over Ethernet (PoE)

EnGenius ECB300 wireless access point 300 Mbit/s Black, Grey Power over Ethernet (PoE)

Model ECB300EAN 5054629305423

61 specifications
  • Memory32 MB
  • Speed300 Mbit/s
  • Weight280 g
  • ColourBlack, Grey
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports1
See all specifications

Overview

Memory
32 MB
Speed
300 Mbit/s
Weight
280 g
Colour
Black, Grey
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
1
Brand
EnGenius
Model
ECB300
Part number
ECB300
EAN / UPC
5054629305423, 112039996893, 230494858515, 646444766838 +2 more
Also known as
EnGenius ECB300 wireless access point 300 Mbit/s Black, Grey Power over Ethernet (PoE)

Specifications

61 specifications in 15 groups

Features

2.4 GHzYes
5 GHzNo
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.484 GHz
Bandwidth2.4 GHz
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Channels quantity11 channels
Channel bandwidth40 MHz
Automatic channel selectionYes
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, QPSK
Wi-Fi Multimedia (WMM)/(WME)Yes
VLAN supportYes
Virtual LAN featuresTagged VLAN
Operating modesAccess Point (AP),Client Bridge,Repeater,Router,WDS Access Point (AP),WDS Bridge
Wireless isolationYes
Quality of Service (QoS) supportYes
Transmitting power19 dBmW

Security

Security algorithms128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, 802.1x RADIUS
MAC address filteringYes
Number of SSID supported4
Auto Wireless Distribution System (WDS)Yes
VPN supportIPsec, L2TP, PPTP

Protocols

DHCP serverYes
Management protocolsHTTP/Telnet

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage90 - 240 V
Power requirements12V/1A DC

Design

PlacementTable
Product colourBlack, Grey
Reset buttonYes
LED indicatorsYes
InternalNo

Antenna

Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Antenna connector typeSMA

Performance

Flash memory4 MB
Internal memory32 MB

Certificates

CertificationFCC, CE, IC

Weight & dimensions

Width105 mm
Depth135 mm
Height30 mm
Dimensions (WxDxH)105 x 135 x 30 mm
Weight280 g

Packaging data

CD manualYes

Packaging content

AC adapter includedYes
Cables includedLAN (RJ-45)
Quick start guideYes

Other features

Power LEDYes

Operational conditions

Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)5 - 95%
