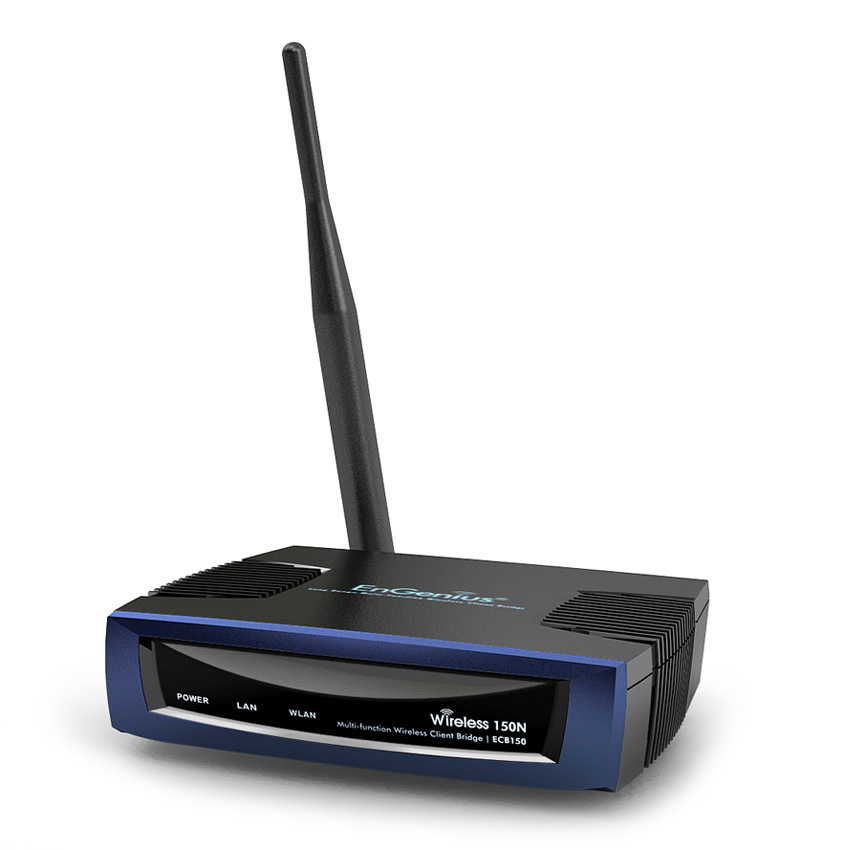

EnGenius ECB150 wireless access point 150 Mbit/s
Model ECB150EAN 172302831559
32 specifications
- Memory32 MB
- Speed150 Mbit/s
- 2.4 GHzYes
- Management protocolsHTTP 1.0 / 1.1
- WAN connectionEthernet (RJ-45)
- Power requirements12V / 1A
Overview
- Memory
- 32 MB
- Speed
- 150 Mbit/s
- 2.4 GHz
- Yes
- Management protocols
- HTTP 1.0 / 1.1
- WAN connection
- Ethernet (RJ-45)
- Power requirements
- 12V / 1A
- Brand
- EnGenius
- Category
- Wireless Access Point
- Model
- ECB150
- Part number
- ECB150
- EAN / UPC
- 172302831559, 655216005389, 6552160053890
- Also known as
- EnGenius ECB150 wireless access point 150 Mbit/s
Specifications
32 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 150 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 11 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DPSK, DQPSK, QPSK |
| VLAN support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, MD5, PEAP, SSL/TLS, TKIP, TTLS |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTP 1.0 / 1.1 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power requirements | 12V / 1A |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antennas quantity | 1 |
| Antenna gain level (max) | 5 dBi |
Performance
| Specification | Value |
|---|---|
| Flash memory | 4 MB |
| Internal memory | 32 MB |
| Compatible operating systems | Windows Windows7, 98, ME, NT, XP, 2000 Mac OS X 10.7 |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC/CE/IC |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 105 x 135 x 30 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
Other features
| Specification | Value |
|---|---|
| Browser supported | Microsoft IE 6.0 +, Firefox 2.0 + |
| Power LED | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
